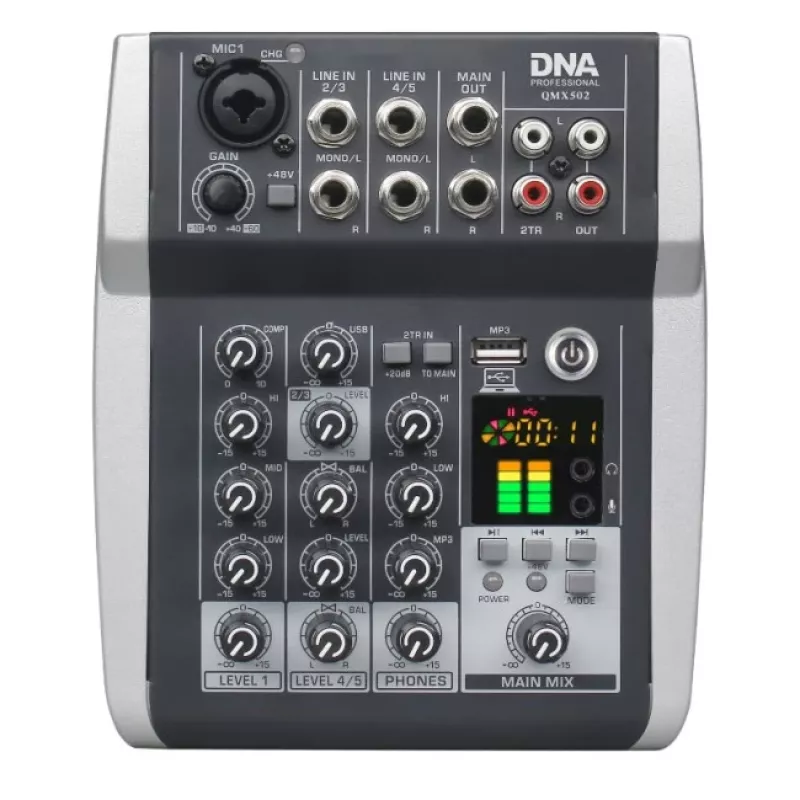

DNA PROFESSIONAL DNA QMX502 5-Channel Analog Sound Mixer Blue

The DNA PROFESSIONAL DNA QMX502 is a versatile 5-channel analog sound mixer designed for musicians, podcasters, and content creators. With its compact metal chassis and striking blue accents, this mixer offers professional-grade audio processing in a portable form factor. It features one mono microphone input with +48V phantom power, two stereo line inputs, and a built-in USB audio interface for seamless integration with computers. Bluetooth connectivity allows wireless audio streaming, while the built-in DSP effects processor adds creative possibilities. The mixer is USB-powered, making it ideal for mobile setups.

Advantages

The DNA QMX502 combines multiple essential features in one unit: a 2-in/2-out USB audio interface for recording and playback, Bluetooth for wireless streaming, and a DSP effects processor for reverb, delay, and more. Its 2-band EQ on each channel provides tonal shaping, and the 4-segment LED metering ensures accurate level monitoring. The mixer is powered via USB, eliminating the need for a bulky power supply, and includes a headphone output with dedicated volume control.

Suitable for

• Live streaming and podcasting
• Small venue sound reinforcement
• Home recording studios
• Content creation and video production
• Mobile DJ setups

Key specifications

• Channels: 5 (1 mono, 2 stereo)
• Microphone input: 1 x XLR/TRS combo with +48V phantom power
• Stereo line inputs: 2 x 1/4" TRS
• Main outputs: 2 x 1/4" TRS (L/R)
• Headphone output: 1 x 1/4" TRS
• USB audio interface: 2-in/2-out
• Bluetooth: Yes
• Built-in effects: DSP processor
• Equalizer: 2-band per channel (High, Low)
• Frequency response: 20Hz - 20kHz (+/- 0.5dB)
• THD+N: <0.03% @ 1kHz
• Signal-to-noise ratio: >105dB
• Power supply: DC 5V / 1A (USB powered)
• Chassis material: Metal
• Colour: Blue

Recommendations

For best performance, use a high-quality USB power source (5V/1A) and connect to a computer via the included USB cable. The mixer is compatible with Windows and Mac operating systems without additional drivers. Ideal for streamers, podcasters, and musicians who need a compact, all-in-one mixing solution.
