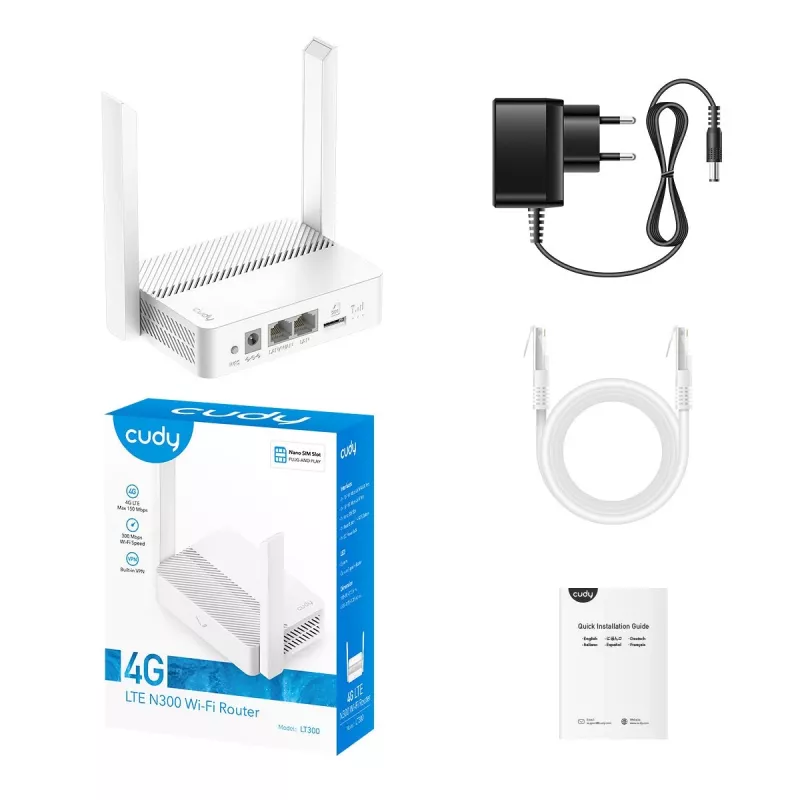

Tabletop wireless router Cudy LT300_EU — 300 Mbps, Single‑band 2.4 GHz, NanoSIM, 1 WAN, 4 LAN ports

Cudy LT300_EU is a tabletop wireless router that provides up to 300 Mbps on the 2.4 GHz single Wi‑Fi band (802.11 b/g/n). It supports mobile WAN via a NanoSIM card (4G LTE Cat4) and also offers an RJ‑45 Ethernet WAN port. The router includes four Ethernet LAN ports (10/100 Mbps), external antennas, LED indicators and is powered by a 12 V DC adapter supplied in the package.

Advantages

The router combines mobile 4G LTE connectivity with a wired RJ‑45 WAN option, allowing flexible internet backup or primary access. External antennas and support for QoS help maintain stable wireless performance on the 2.4 GHz band. Simple management is available through a web interface or a dedicated mobile application, and features such as guest access and WPS facilitate secure and convenient setup for visitors and devices.

Suitable for

• Home internet via 4G LTE or wired WAN
• Small offices requiring basic Wi‑Fi coverage on 2.4 GHz
• Temporary or portable deployments where tabletop placement is needed
• Environments needing guest network access and simple device setup

Key specifications

• Wi‑Fi standard: 802.11 b/g/n (Wi‑Fi 4), single‑band 2.4 GHz
• Maximum wireless rate: up to 300 Mbps
• Mobile network: 4G LTE (Cat4), NanoSIM support
• WAN interfaces: NanoSIM slot and RJ‑45 Ethernet WAN
• LAN interfaces: 4 × 10/100 Mbps Ethernet LAN ports
• Power: DC 12 V, 1 A (AC adapter included)
• Physical dimensions: 118 × 80 × 27.5 mm; weight 172.2 g
• Operating temperature: 0 to 40 °C; storage temperature: −20 to 70 °C
• Operating humidity: 5–95% (relative)

How to use

Insert a NanoSIM card into the SIM slot or connect an RJ‑45 cable to the WAN port, then connect the included AC adapter to the 12 V DC input. Power on the router and use the web management interface or the dedicated application to follow the setup wizard: configure the WAN mode (mobile or Ethernet), set up the wireless SSID and password, and enable guest access or QoS as needed. Use the WPS button to add compatible devices quickly, and consult the quick installation guide included in the package for step‑by‑step instructions.

Recommendations

Place the tabletop router in an elevated central location away from large metal objects and sources of interference to improve 2.4 GHz coverage. For stable mobile WAN performance, ensure good cellular signal at the installation site and consider using Ethernet WAN as a backup when available.
