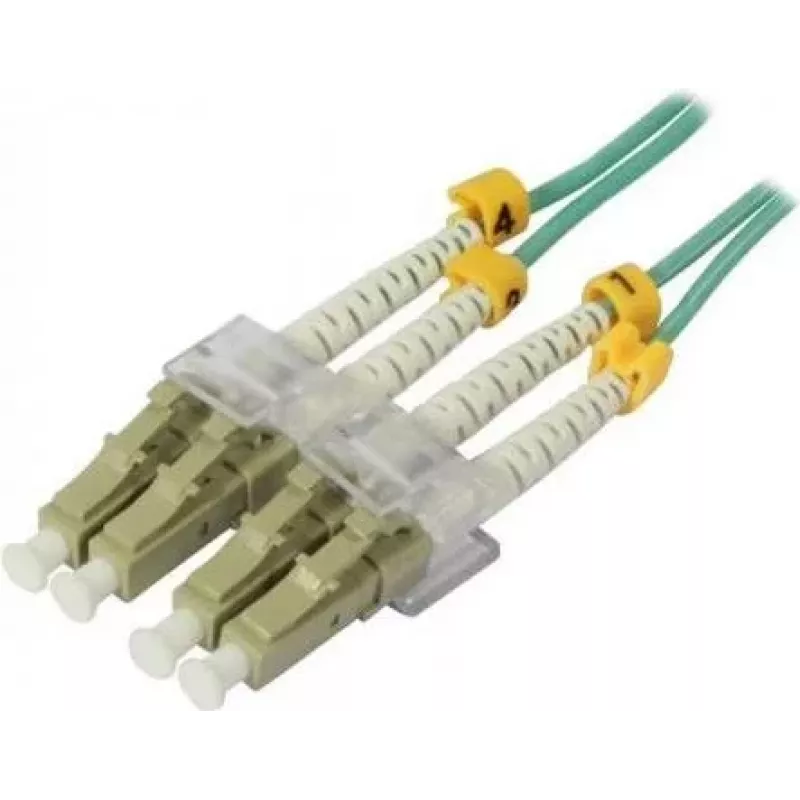

SYNERGY21 S216742 Fiber Optic Patch Cable 7.5 m OM3 LC Duplex to LC Duplex Blue

The SYNERGY21 S216742 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 7.5 meters and OM3 multimode fiber, this cable supports 10, 40, and 100 Gigabit Ethernet applications, making it ideal for data centers, enterprise networks, and high-speed connections.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The duplex LC connectors ensure secure and easy connections.

Suitable for

• Data center interconnects
• Server and storage area networks
• High-speed Ethernet applications (10GbE, 40GbE, 100GbE)
• Telecommunications and broadband networks

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM3
• Connector A: LC Duplex
• Connector B: LC Duplex
• Cable Length: 7.5 m
• Cable Color: Blue
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH
• Insertion Loss: <0.3 dB
• Return Loss: >30 dB
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to 70°C
• Attenuation at 850nm: 3.5 dB/km
• Attenuation at 1300nm: 1.5 dB/km
• Bandwidth at 850nm: 1500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
