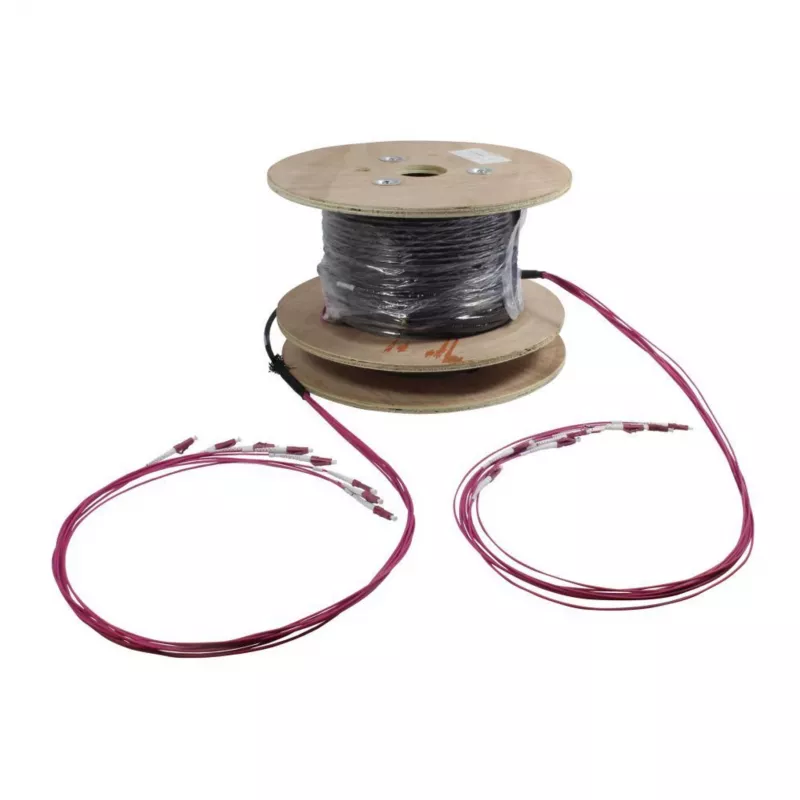

SYNERGY21 Fiber Optic Trunk Cable U-DQ ZN BH 8G 50/125 LC/LC OM4 130m Drum - Multimode Fiber

The SYNERGY21 S217082 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding environments. This 130-meter multimode OM4 cable features 8 fibers with LC connectors on both ends, housed in a rugged U-DQ ZN BH construction with LSZH jacket. Ideal for indoor/outdoor installations, it ensures low attenuation and high bandwidth for 10/40/100 Gigabit Ethernet applications.

Advantages

Optimized for high-speed networks, this trunk cable offers exceptional bandwidth and low signal loss. The LSZH jacket provides safety in confined spaces, while the central tube design ensures easy installation and durability. Pre-terminated with LC connectors, it reduces deployment time and eliminates field termination errors.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Telecommunications rooms
• Indoor/outdoor campus networks
• High-bandwidth fiber optic links

Key specifications

• Fiber Type: Multimode OM4
• Fiber Count: 8 fibers
• Core/Cladding: 50/125 µm
• Connectors: LC duplex on both ends
• Cable Length: 130 m
• Cable Construction: U-DQ ZN BH (central tube, non-metallic strength members)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Environmental Suitability: Indoor/Outdoor
• Packaging: Cable drum
• Max Attenuation (850nm): 2.5 dB/km
• Max Attenuation (1300nm): 0.8 dB/km
• Effective Modal Bandwidth (850nm): 4700 MHz·km
• Effective Modal Bandwidth (1300nm): 500 MHz·km
• Typical Insertion Loss: < 0.3 dB per connector
• Typical Return Loss: > 30 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60794, TIA/EIA-568-C.3

Recommendations

For optimal performance, pair with OM4-compatible transceivers and patch panels. Ensure proper cable management to maintain bend radius. This cable is ideal for high-density fiber environments requiring reliable, high-bandwidth connections.
