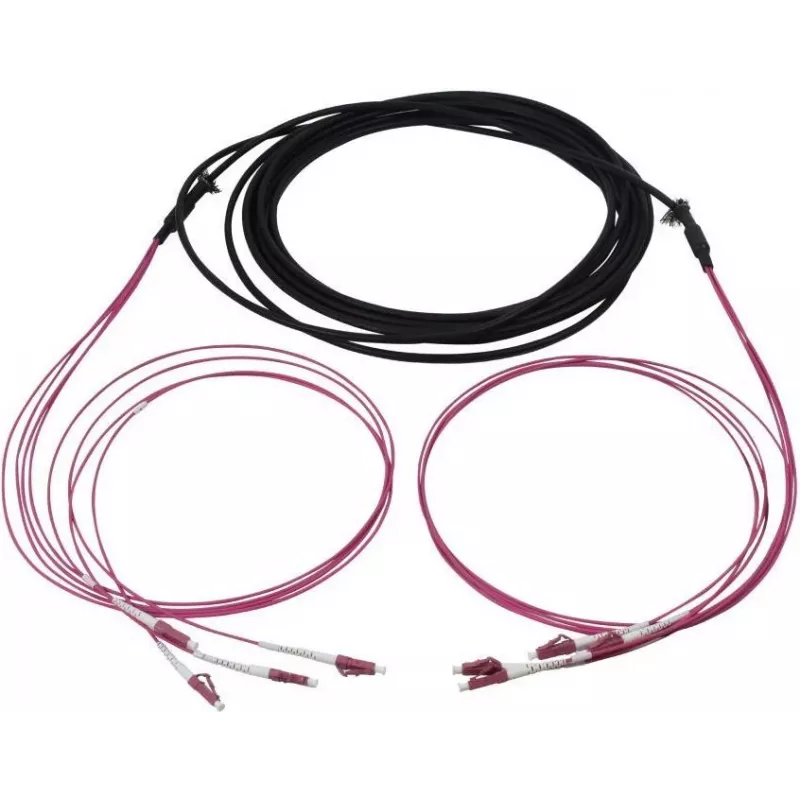

SYNERGY21 Fiber Optic Trunk Cable U-DQ ZN BH 4G 50/125 LC/LC OM4 150m Drum - Multimode Fiber

The SYNERGY21 S217064 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding network environments. This multimode OM4 cable features 4 fibers with LC to LC connectors, a length of 150 meters, and is packaged on a drum for easy deployment. With a halogen-free, flame-retardant LSZH jacket and dry water-blocked construction, it is suitable for both indoor and outdoor installations.

Advantages

This trunk cable offers exceptional bandwidth and low attenuation, ensuring high-speed data transfer over medium distances. The OM4 grade supports 40G and 100G Ethernet applications, making it future-proof for evolving network needs. Its robust design includes non-metallic strain relief and central tube, providing durability and protection against environmental factors.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Telecommunications installations
• Indoor/outdoor campus networks

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM4
• Fiber Count: 4
• Connector Type: LC to LC
• Length: 150 m
• Jacket: LSZH, Halogen-free, Flame Retardant
• Cable Designator: U-DQ ZN BH
• Water Blocking: Dry Water Blocked
• Strain Relief: Non-Metallic
• Central Element: Non-Metallic Central Tube
• Bandwidth (850nm): 4700 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Operating Wavelengths: 850 nm / 1300 nm
• Installation Environment: Universal (Indoor/Outdoor)
• Packaging: Cable Drum

Recommendations

For optimal performance, pair this trunk cable with compatible LC patch panels and connectors. Ensure proper handling and installation to maintain signal integrity. This product is ideal for network professionals seeking a reliable, high-bandwidth solution for structured cabling.
