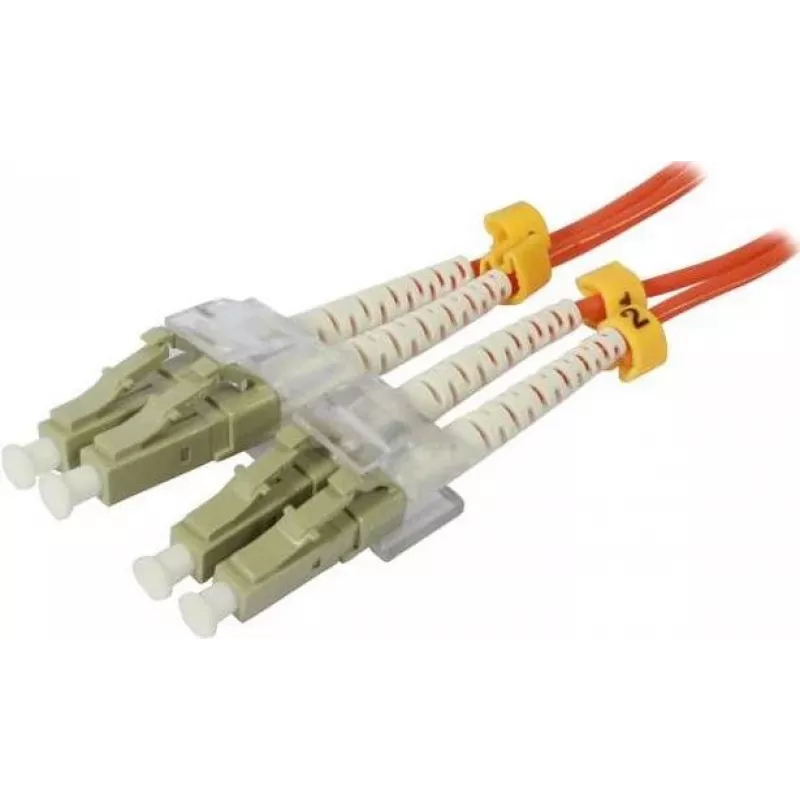

SYNERGY21 Fiber Optic Patch Cable 0.5m LC-LC Duplex OM2 50/125µm LSZH Orange

The SYNERGY21 S216779 is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 0.5 meters and duplex LC/UPC connectors, this OM2 multimode cable ensures low insertion loss and high return loss for optimal performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, making it ideal for data centers, LANs, SANs, and telecommunications applications.

Advantages

This patch cable offers excellent signal integrity with a maximum insertion loss of 0.3 dB and a minimum return loss of 20 dB. The 2 mm diameter jacket per strand is flexible yet durable, allowing for easy installation in tight spaces. The orange color ensures easy identification among other cables, and the LSZH material reduces toxic smoke in case of fire, complying with safety regulations.

Suitable for

• Data centers requiring high-speed multimode fiber connections
• Local Area Networks (LAN) with OM2 infrastructure
• Storage Area Networks (SAN) for reliable data transfer
• Telecommunications equipment interconnections

Key specifications

• Cable Type: Fiber Optic Patch Cable, Duplex
• Fiber Standard: OM2 Multimode
• Core/Cladding Diameter: 50/125 µm
• Connectors: 2x LC/UPC to 2x LC/UPC
• Cable Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Diameter: 2 mm per strand
• Cable Color: Orange
• Insertion Loss (Max): 0.3 dB
• Return Loss (Min): 20 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for use with OM2-rated equipment. Avoid sharp bends to maintain signal quality.
