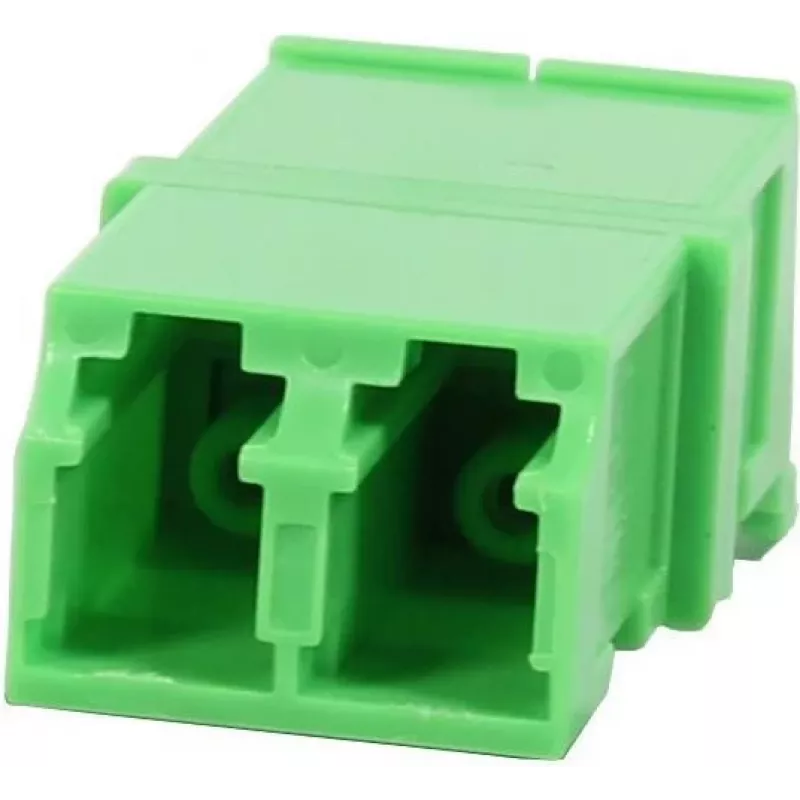

Synergy 21 S215678 LC/APC Fiber Optic Adapter Coupler Duplex Singlemode 9/125µm Ceramic PVC Flangeless Green with Laser Protection Shutter

The Synergy 21 S215678 is a high-quality fiber optic adapter/coupler designed for reliable singlemode connections. Featuring LC/APC female connectors on both sides, this duplex adapter ensures low insertion loss and high return loss, making it ideal for FTTx, LAN, telecommunication networks, and data centers. The ceramic ferrule and PVC housing provide durability, while the integrated laser protection shutter enhances safety. Flangeless design allows for easy installation in various enclosures.

Advantages

This adapter offers exceptional performance with typical insertion loss <0.3 dB and return loss >60 dB. The APC polish minimizes back reflection, ensuring signal integrity. The duplex configuration supports bidirectional communication, and the green color aids in quick identification. Laser protection shutter prevents accidental exposure to laser radiation.

Suitable for

• FTTx networks
• Local Area Networks (LAN)
• Telecommunication systems
• Data centers
• Singlemode fiber optic patch panels and enclosures

Key specifications

• Product Type: Fiber Optic Adapter / Coupler
• Connector Type: LC/APC Female to LC/APC Female
• Fiber Mode: Singlemode (9/125 µm)
• Configuration: Duplex
• Ferrule Material: Ceramic
• Housing Material: PVC
• Mounting Type: Flangeless
• Special Feature: Laser Protection Shutter
• Polishing Type: APC
• Insertion Loss: <0.3 dB
• Return Loss: >60 dB
• Wavelength: 1310nm, 1550nm
• Color: Green
• Standards: IEC 61754-20

Recommendations

For optimal performance, use with LC/APC patch cables and ensure proper cleaning of connectors before mating. This adapter is suitable for high-speed networks requiring low loss and high return loss.
