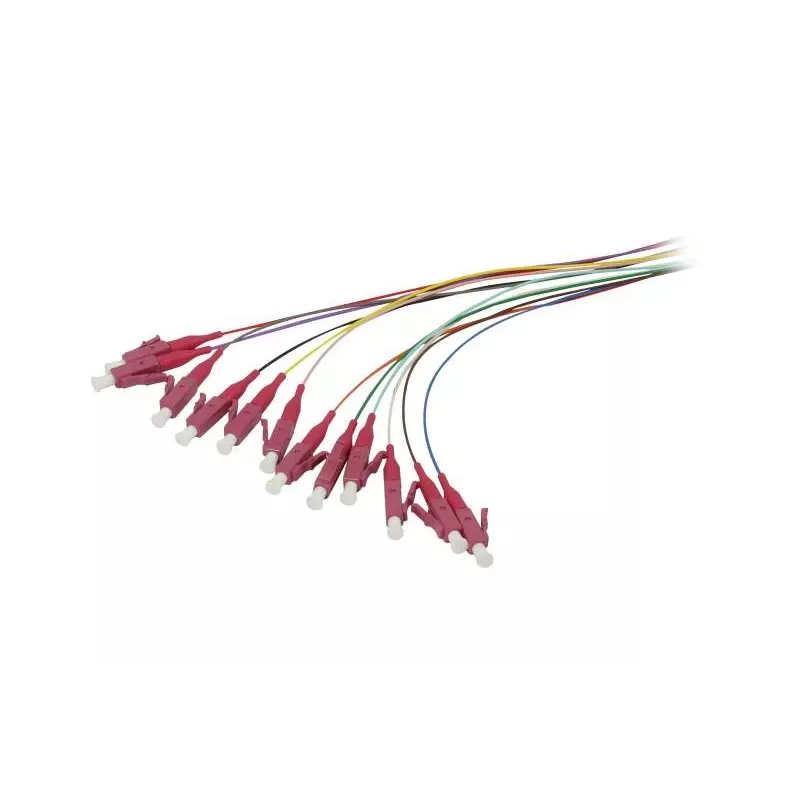

Synergy 21 Fiber Optic Pigtail LC 50/125 µm OM4 2 m 12-Pack Colored

The Synergy 21 LWL-Pigtail-LC 50/125u 2mtr. OM4 12-Pack farbig is a high-quality fiber optic pigtail designed for reliable and efficient network connections. This pack includes 12 individually colored pigtails, each 2 meters long, featuring LC connectors on one end and unterminated fibers on the other. Ideal for splicing in patch panels or termination boxes, these pigtails ensure low insertion loss and high return loss for optimal signal integrity.

Advantages

Color-coded pigtails simplify identification and organization in dense cabling environments. The OM4 multimode fiber supports high-bandwidth applications over longer distances, making it suitable for data centers, LANs, SANs, and telecommunications. LSZH jacket material enhances safety by reducing toxic smoke and halogen emissions in case of fire.

Suitable for

• Data center cabling infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunication systems
• Fiber optic termination and splicing

Key specifications

• Product Type: Fiber Optic Pigtail
• Fiber Type: Multimode OM4
• Core/Cladding: 50/125 µm
• Connector: LC UPC
• Length: 2 meters
• Number of Pigtails: 12
• Color Coding: Yes (colored)
• Jacket Material: LSZH
• Cable Diameter: 0.9 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper cleaning of connectors before mating. Use appropriate splice trays and management accessories to maintain bend radius and protect fibers.
