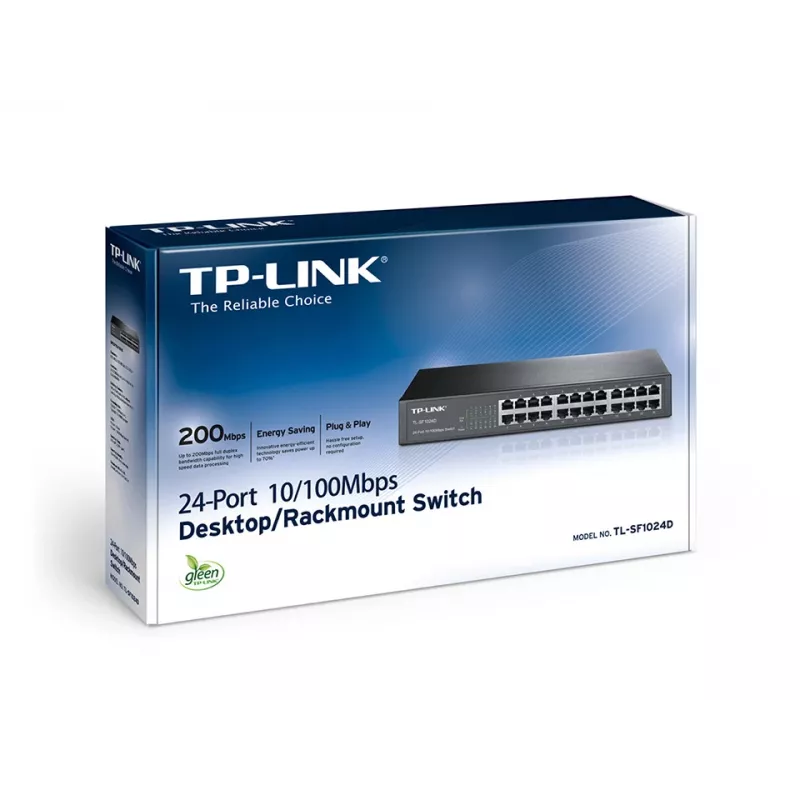

Switch TP-Link TL-SF1024D Fast Ethernet 10/100

The TL-SF1024D is a 24-port 10/100 Mbps Ethernet switch in a standard 13-inch steel case designed for simple network upgrades. It provides 24 RJ45 ports with auto MDI/MDIX and plug-and-play operation to convert an older network to 100 Mbps connectivity while maintaining quiet, fanless operation.

Advantages

The switch uses TP-LINK Green Technology to reduce power consumption by up to 75% by adjusting energy use according to link status and cable length. It supports full-duplex IEEE 802.3x flow control and half-duplex backpressure to relieve congestion. With a rugged rack-mount steel case and safety-certified internal power supply, the device offers reliable performance for small office deployments. Packaging is largely recyclable to reduce environmental impact.

Key specifications

• 24 x 10/100 Mbps RJ45 ports
• Switching capacity: 4.8 Gbps
• Switching scheme: Store-and-forward
• Auto MDI/MDIX on all ports (no crossover cables required)
• Auto-negotiation for 10/100 Mbps on each port
• Supports MAC address auto-learning and auto-aging
• IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex)
• Innovative energy-efficient technology (up to 75% power savings)
• Fanless design for quiet operation
• Standard 13-inch steel rack-mount case

How to use

Install the TL-SF1024D in a rack or on a flat surface using the provided chassis design. Connect network devices to any RJ45 port using standard Ethernet cables; auto MDI/MDIX removes the need for crossover cables. The switch automatically senses link speed (10/100 Mbps) and adjusts for optimal compatibility. No configuration is required — power on the switch and connected devices will establish links automatically.

Recommendations

For best results, place the switch in a well-ventilated, dry environment and connect devices with good-quality Cat5e or Cat6 cables. Use the TL-SF1024D for small office networks or edge aggregation where up to 24 10/100 Mbps ports are needed and energy-efficient, quiet operation is desired.
