Surveillance Camera Reolink NVS36 36-Channel PoE NVR 16MP

The Reolink NVS36 is a 36-channel PoE NVR designed for whole-house and multi-zone surveillance. It supports up to 16MP cameras and provides local 24/7 recording to three SATA drives (up to 16TB each, 48TB total). The unit includes two-way audio support, alarm input/output ports and multi-channel management for centralized monitoring.

Advantages

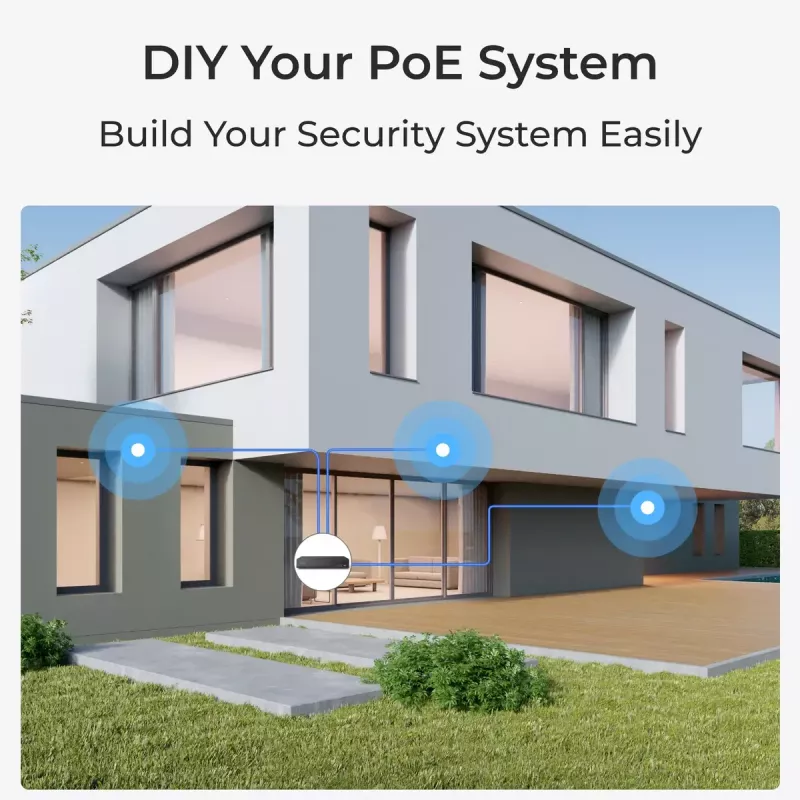

This 36-channel NVR accepts high-resolution camera inputs up to 16MP and stores continuous footage locally with a maximum capacity of 48TB using three 16TB SATA drives. Built-in two-way audio enables direct communication through connected cameras, while multiple alarm inputs and outputs allow flexible security configurations. PoE connectivity simplifies installation and cable management, and both local monitor/TV viewing and remote access via the Reolink App are supported.

Suitable for

• Residential whole-house monitoring
• Small to medium commercial properties (shops, offices)
• Multi-zone surveillance in warehouses or storage facilities
• Sites requiring local continuous recording and remote viewing

Key specifications

• Channels: 36 IPC channels, each up to 16MP input

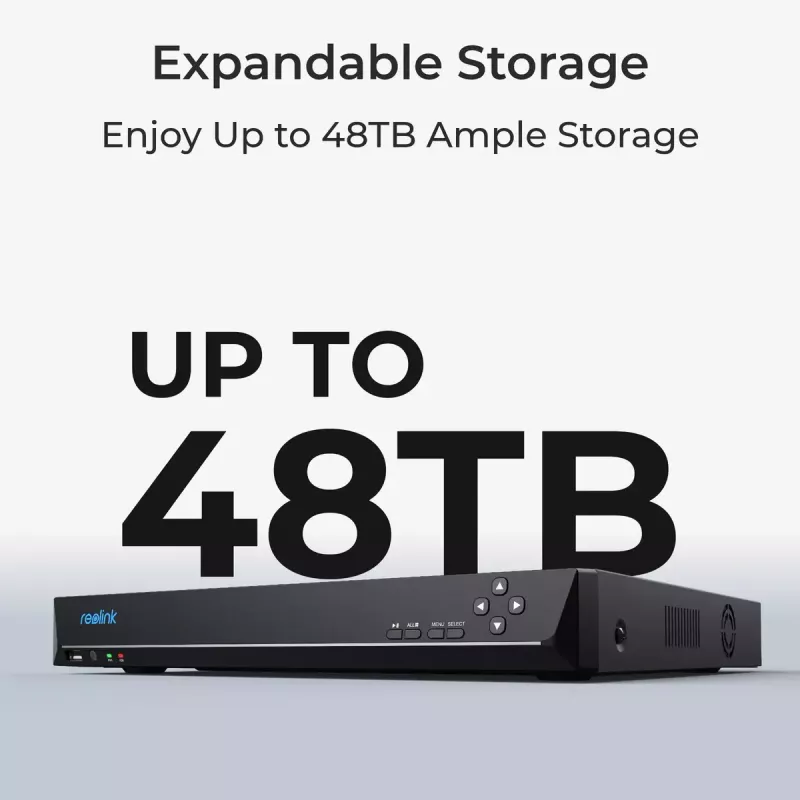

• Storage: 3 × SATA bays, up to 16TB per bay (maximum 48TB)
• Audio: 2-way audio via NVR

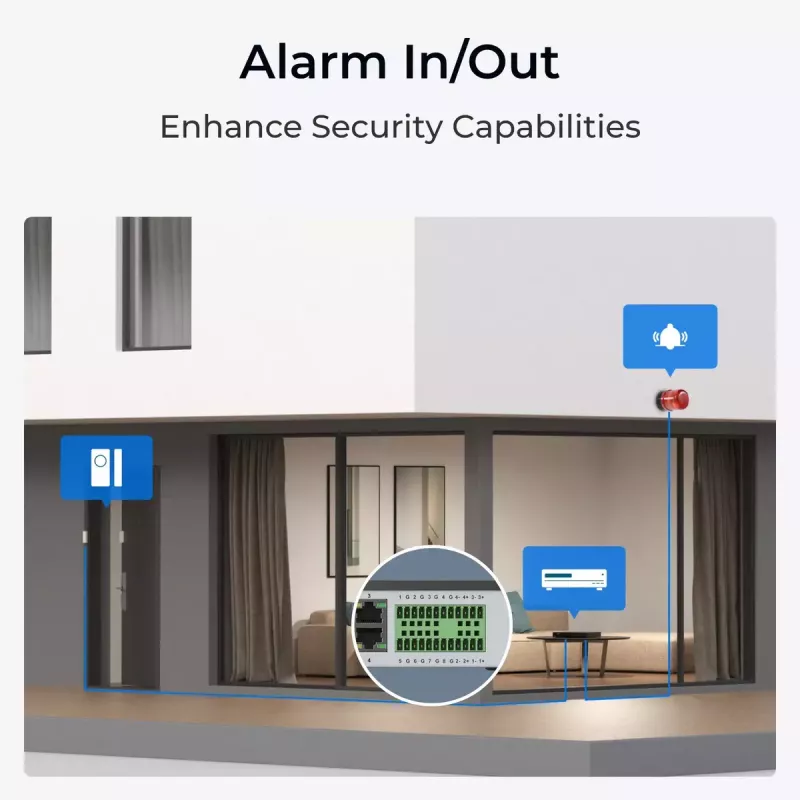

• Alarm I/O: 8 alarm inputs, 4 alarm outputs
• Recording: 24/7 continuous local recording
• Network: Ethernet up to 1000 Mbit/s; remote access via Reolink App
• Power consumption: typical 10 W
• Colour: Black; Weight: 2.26 kg

How to use

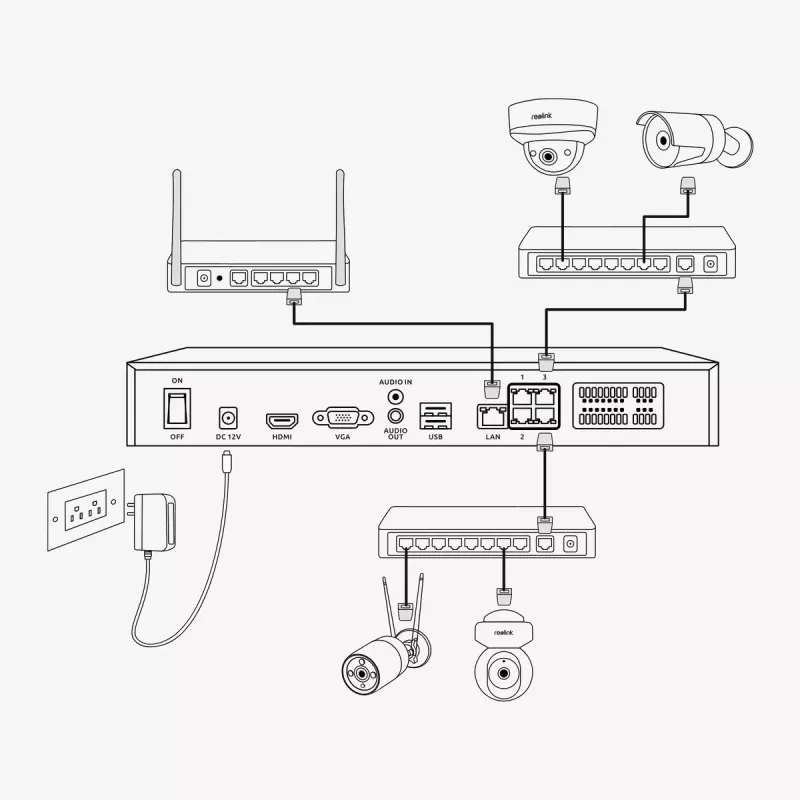

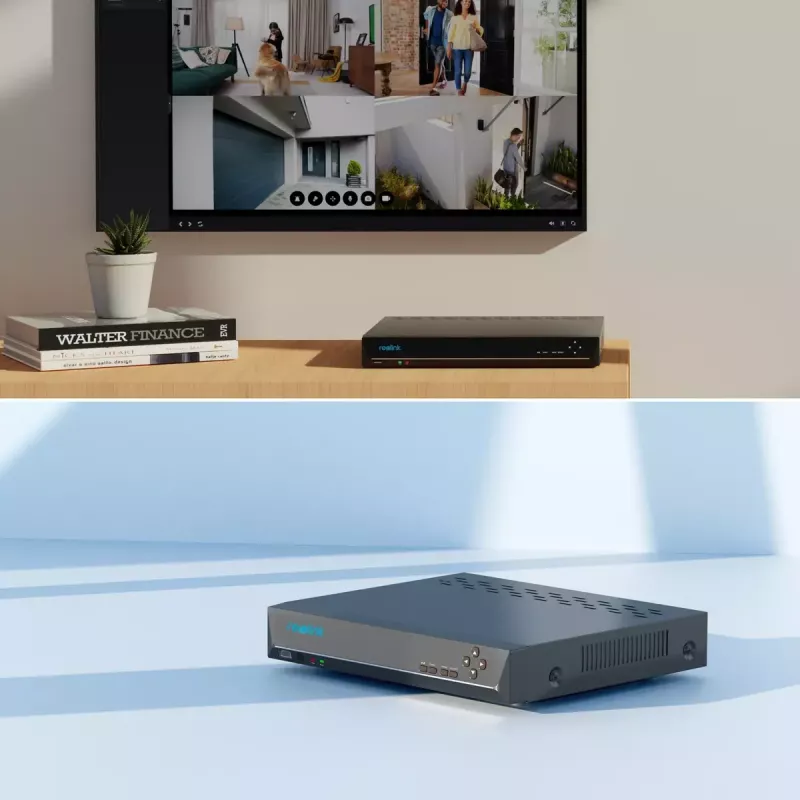

Install compatible PoE cameras and connect them to the NVS36 PoE ports. Populate the three SATA bays with compatible 3.5" HDDs (up to 16TB each) and format them in the NVR interface. Configure camera channels, recording schedules, and alarm input/output behavior through the NVR menu. For local monitoring, connect an HD monitor or TV to the NVR output. For remote access, install the Reolink App on your mobile device and follow the app instructions to add the NVR for live view and playback.

Recommendations

Use enterprise-grade surveillance HDDs rated for continuous recording, set up regular backup procedures for critical footage, and configure motion detection or scheduled recording to optimize storage. Ensure firmware is kept up to date and secure remote access with strong passwords.
