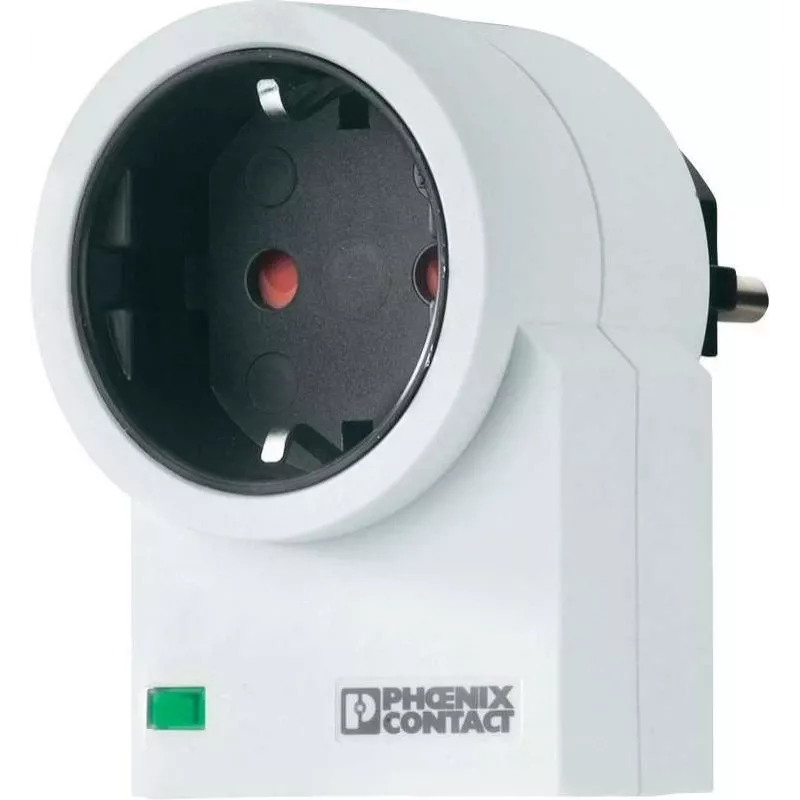

Surge Protector Phoenix Contact 2882213

The Phoenix Contact 2882213 surge protector is an attachment connector designed for mains sockets with built-in surge protection, a mains control lamp and optical indicators for power and error status. Intended for country-specific use in D, A, I, NL, S, N, FIN, E and P, the device has a white polyamide housing, IP20 protection class and is made for a 230 V nominal input voltage. Its compact dimensions (56 mm width, 78 mm depth) and light weight (69.35 g) make it suitable for indoor electrical installations where protection against transient overvoltages is required.

Advantages

The unit integrates surge protection with a mains control lamp and separate optical indication of power and fault, allowing quick visual verification of operational status. The polyamide construction provides mechanical durability while the IP20 rating is suitable for protected indoor environments. Compact size and low weight enable easy attachment to standard mains sockets without significant space demand.

Suitable for (tasks / use cases)

Key specifications

How to use

Insert the surge protector into a compatible mains socket according to the country's socket standard. Observe the optical indicators: the mains control lamp confirms presence of supply voltage and the separate power/error display shows operational condition. Ensure the device is used indoors in dry, protected environments consistent with its IP20 rating. If the error indicator is active, disconnect the protected equipment and replace or service the surge protector as appropriate.

Recommendations

Mount and operate the Phoenix Contact 2882213 only in compliant mains sockets for the listed countries. Do not expose the device to moisture or outdoor conditions due to IP20 rating. Regularly check the optical status indicators to verify protection functionality and replace the unit if the error indication persists.
