Surge Protector AXON-POE/PROF

With a response time under 1 ns and a maximum discharge current of 10 kA per line, the AXON-POE/PROF protects Power over Ethernet infrastructure from transient overvoltages before they can reach connected equipment.

Overview

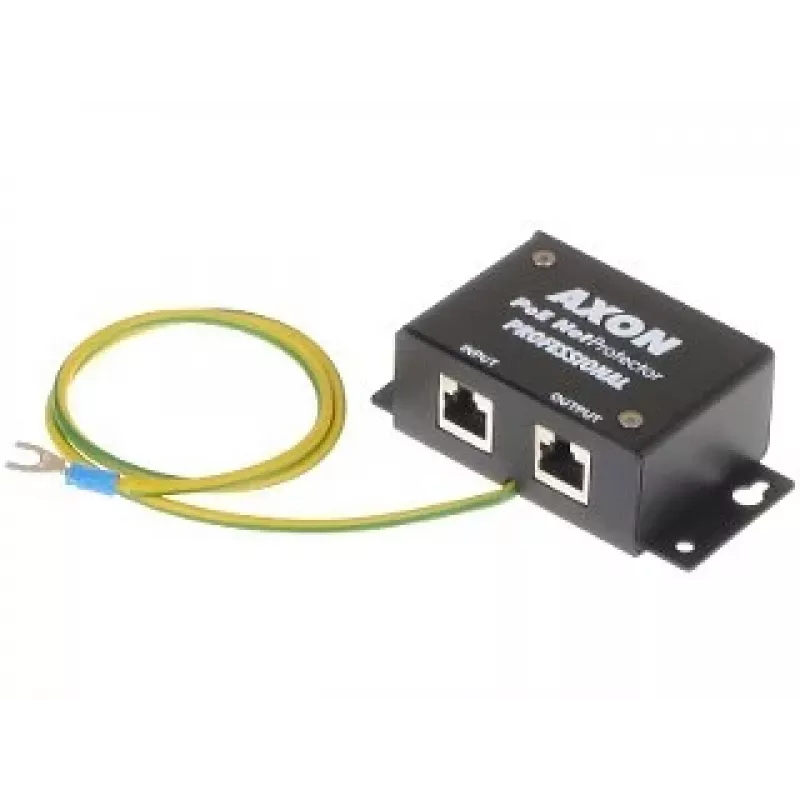

The AXON-POE/PROF is a surge protector designed for PoE systems, supporting Gigabit Ethernet and IEEE 802.3af/at/bt standards. It safeguards all eight wires of the Ethernet cable, ensuring both data and power lines are protected. The unit features two shielded RJ45 connectors and a screw terminal for grounding. Its metal housing allows DIN rail or wall mounting.

What stands out

• Protects all 8 wires (4 data pairs) in a PoE link
• Supports PoE, PoE+, and UPoE (802.3af/at/bt)
• Low voltage protection level: <70 V on power lines (L-G)
• Fast response: <1 ns
• Metal housing for durability

Technical details

• Nominal discharge current (In): 2 kA per line (8/20 µs)
• Max discharge current (Imax): 10 kA per line (8/20 µs)
• Voltage protection level (Up) data lines (L-G): <600 V
• Voltage protection level (Up) power lines (L-G): <70 V
• Voltage protection level (Up) power lines (L-L): <120 V
• Max operating voltage (Uc) power: 60 V DC
• Connectors: 2x RJ45 (shielded)
• Grounding: screw terminal (PE)
• Mounting: DIN rail (35 mm) or wall mount
• Operating temperature: -25°C to +70°C
• Ingress protection: IP20

Our verdict

The AXON-POE/PROF is a robust surge protector for PoE networks, offering comprehensive protection for both data and power lines with industry-standard compliance.
