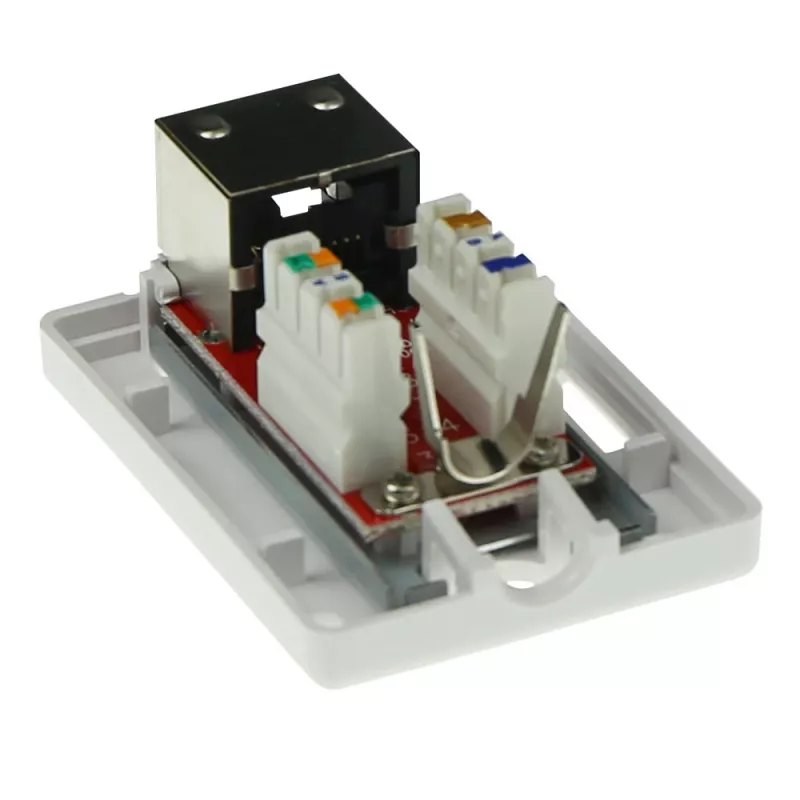

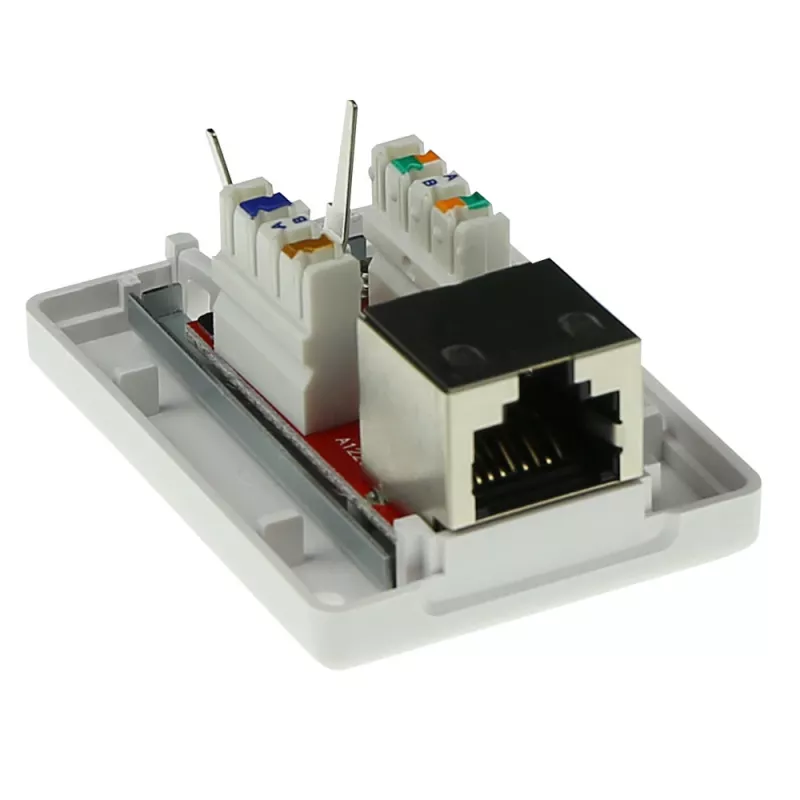

Surface-mounted shielded outlet box ACT FA7005 — 1-port, Cat6A

ACT FA7005 is a surface-mounted shielded outlet box designed to host a single Cat6A network port. The compact, metal-bodied enclosure provides a secure mounting point for one RJ45 keystone or outlet, maintaining cable shielding and supporting high-performance Cat6A cabling suitable for 10 Gbps Ethernet links. The box is intended for surface installations where a grounded, interference-resistant connection is required.

Advantages

The shielded construction preserves the cable’s overall screening and reduces electromagnetic interference that can affect high-speed data transmission. Its surface-mounted form factor allows installation where in-wall mounting is not possible or practical. The enclosure offers a stable mechanical mounting for a single network outlet and facilitates grounding to maintain consistent signal integrity for Cat6A performance.

Suitable for

• Surface installation of one Cat6A network outlet
• 10 Gigabit Ethernet (10GbE) workstations and switches
• Environments requiring shielded, grounded connections to reduce EMI
• Retrofit or temporary installations where wall cavity access is limited

Key specifications

• Form factor: surface-mounted single-port enclosure
• Port capacity: 1 keystone/RJ45 outlet
• Compatibility: Cat6A cabling and components
• Shielding: full metal housing for electromagnetic protection
• Mounting: screw-mounted to flat surfaces
• Grounding: provision for chassis/ground connection
• Material: corrosion-resistant metal suitable for structured cabling environments

How to use

Mount the outlet box on a clean, flat surface using suitable screws and anchors for the substrate. Terminate the Cat6A cable onto the selected shielded keystone or RJ45 outlet following the connector manufacturer’s termination scheme, then insert and secure the outlet into the enclosure. Ensure the cable shield is bonded to the box’s grounding point to preserve shielding continuity. Close and fasten the enclosure to maintain mechanical protection and EMI screening.

Recommendations

Use shielded Cat6A connectors and follow standard termination practices to achieve reliable 10GbE performance. Verify continuity of the shield-to-chassis ground after installation and avoid sharp bends or excessive pulling force on the cable during routing to maintain cable performance.
