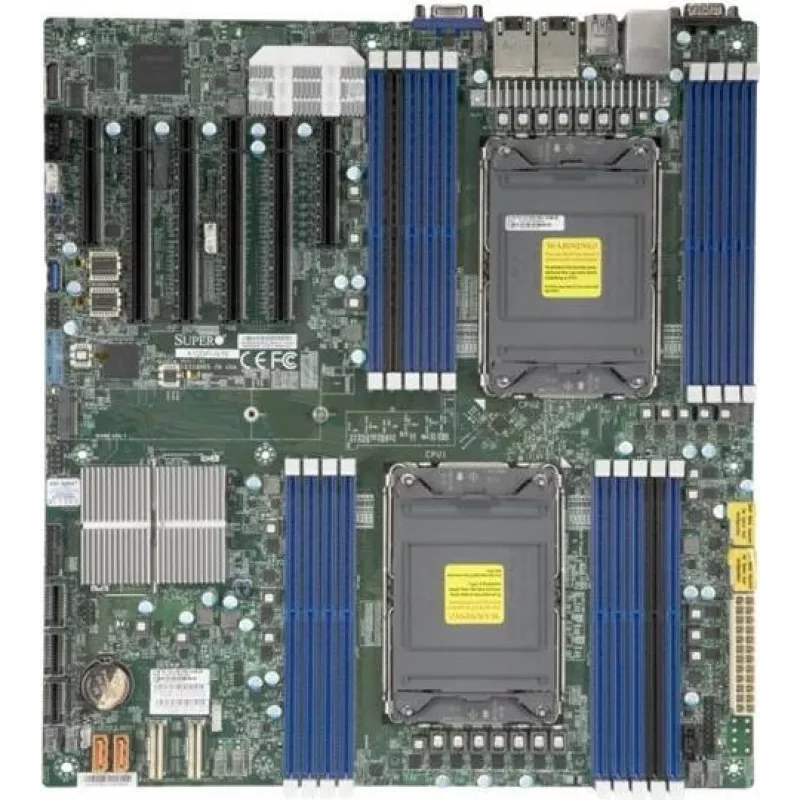

Supermicro X12DPI-NT6 Dual Socket P+ (LGA 4189) E-ATX Server Motherboard, Intel C621A, DDR4, 10GbE

The Supermicro X12DPI-NT6 is a high-performance dual-socket server motherboard designed for 3rd Gen Intel Xeon Scalable processors (Ice Lake-SP). Built on the Intel C621A chipset, this E-ATX board delivers exceptional computing power, memory capacity, and connectivity for demanding data center, enterprise, and HPC workloads.

Advantages

Supports dual LGA 4189 sockets with up to 4TB of DDR4 memory across 16 DIMM slots, providing massive scalability. Features dual 10GbE LAN ports for high-speed networking, plus dedicated IPMI for remote management. PCIe 4.0 support ensures fast data transfer for GPUs and NVMe drives.

Suitable for

• Enterprise servers and data centers
• High-performance computing (HPC) clusters
• Virtualization and cloud infrastructure
• AI and machine learning workloads

Key specifications

• CPU Socket: Dual Socket P+ (LGA 4189)
• Supported CPUs: 3rd Gen Intel Xeon Scalable (Ice Lake-SP)
• Chipset: Intel C621A
• Form Factor: E-ATX
• Memory: 16x DDR4 DIMM slots, up to 4TB, 3200 MHz
• PCIe: 3x PCI-E 4.0 x16, 3x PCI-E 4.0 x8
• Storage: 10x SATA3 (6Gbps), 2x M.2 NVMe (PCIe 4.0 x4)
• LAN: 2x 10GbE (Intel X710-AT2), 1x Dedicated IPMI
• USB: 2x USB 3.2 Gen1, 4x USB 2.0
• Video: 1x VGA (ASPEED AST2600)
• RAID: Intel RSTe (0, 1, 5, 10)

Recommendations

Ideal for building a powerful dual-CPU server with high memory bandwidth and fast networking. Pair with 3rd Gen Intel Xeon Scalable processors and DDR4 ECC memory for optimal performance.
