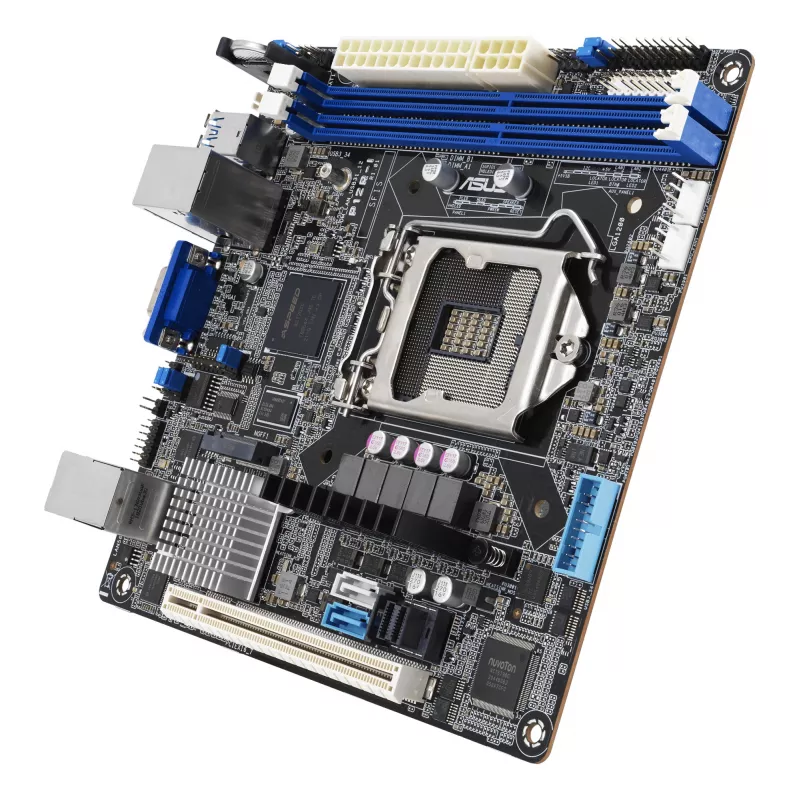

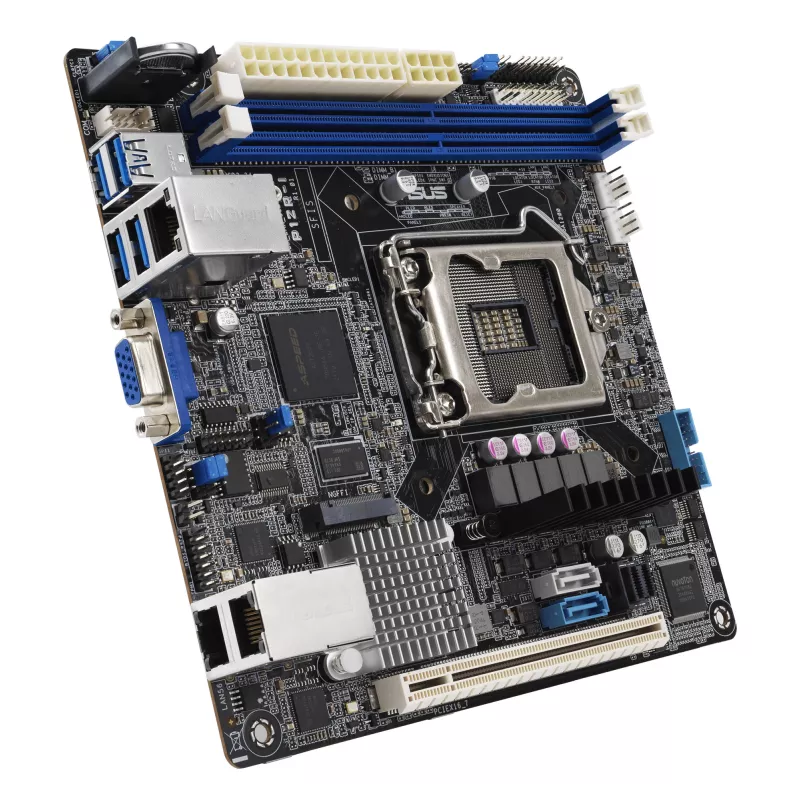

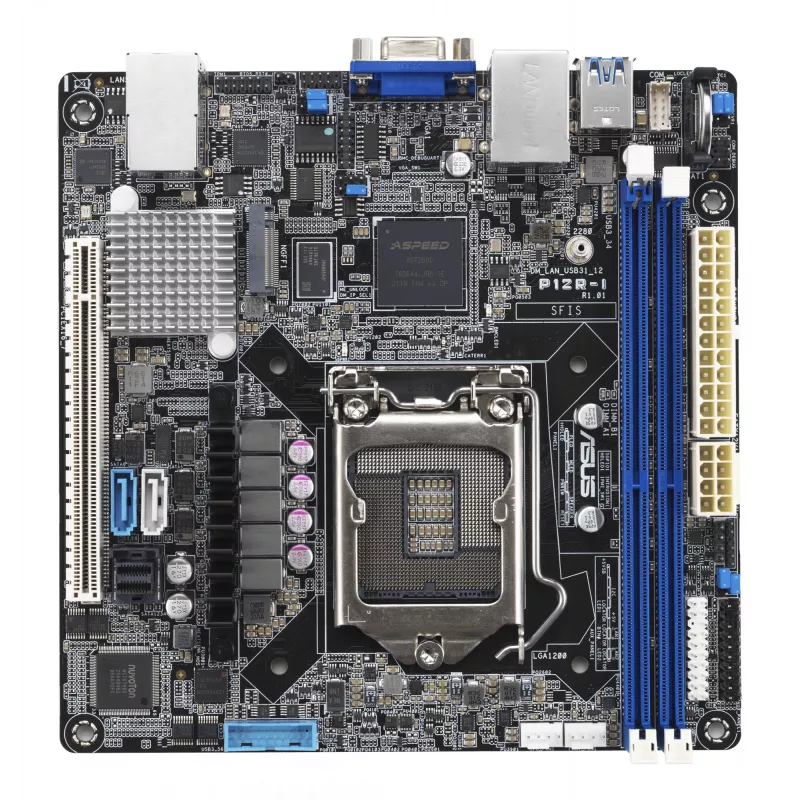

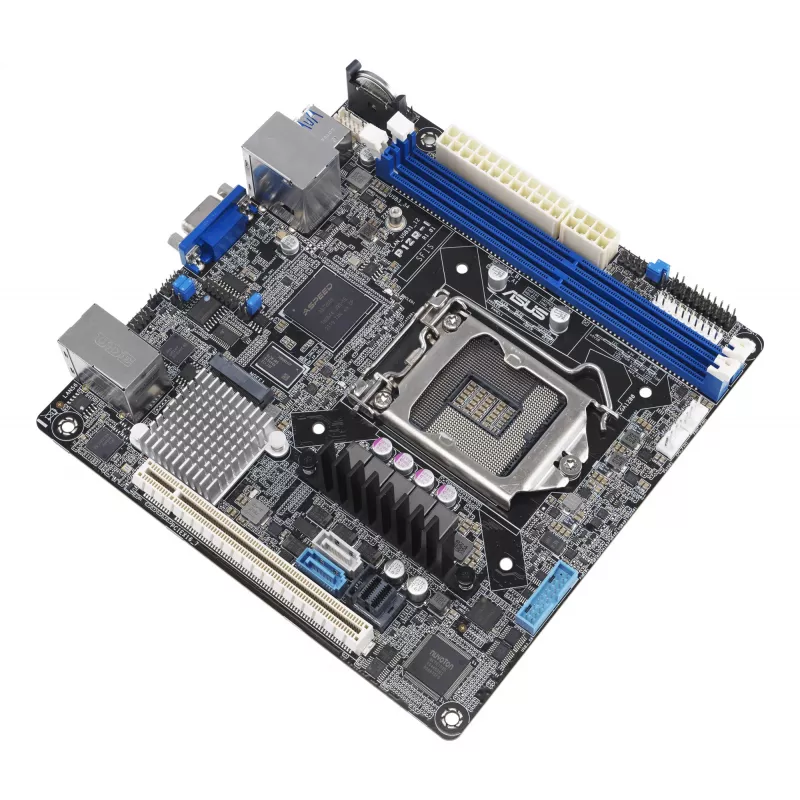

ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX

ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
36 mo.
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
R6,393
PCIe 4.0 ReadyPCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and netw... Read More
Stock 16 Code 878505 Brand ASUS Model 90SB0A70-M0UAY0 Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.


ASUS P12R-I/ASMB10. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Pentium®, Intel Xeon E. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: ASPEED, Graphics card: AST2600, On-board graphics card memory: 64 MB. LAN controller: Intel® I210-AT

Key Highlights
  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with six native SATA HDDs and 1 PCI Express Gen4 slot
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • One M.2 support to 2280 PCIe Gen4 x4 Link for faster OS booting
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Intel LGA 1200 (Socket H5) Intel® Pentium®, Intel Xeon E
  • Server ATX Intel C252
  • DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
  • M.2, SATA III
  • ASPEED AST2600
Specifications
ATX Power connector (24-pin)
Yes
Chassis intrusion connector
Yes
Compatible processor series
Intel® Pentium®, Intel Xeon E
Component for
Server
Depth
170 mm
DVI-D ports quantity
0
EPS power connector (8-pin)
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
3
Graphics card
AST2600
Graphics card family
ASPEED
Harmonized System (HS) code
84733020
HDMI ports quantity
0
LAN controller
Intel® I210-AT
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel C252
Motherboard chipset family
Intel
Motherboard form factor
ATX
Number of chassis fan connectors
2
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SAS ports
2
Number of SATA III connectors
6
On-board graphics card memory
64 MB
Operating temperature (T-T)
10 - 50 °C
Package depth
281 mm
Package height
78 mm
Package weight
1.2 kg
Package width
311 mm
PCI Express x16 slots
1
Processor manufacturer
Intel
Processor socket
LGA 1200 (Socket H5)
Serial port headers
1
Storage relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-40 - 70 °C
Supported memory clock speeds
2666,2933,3200 MHz
Supported memory module capacities
4GB, 8GB, 16GB, 32GB
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
TPM connector
Yes
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Weight
500 g
Wi-Fi
No
Width
170 mm

Leaflet

Open Leaflet

Manual

Open Manual
