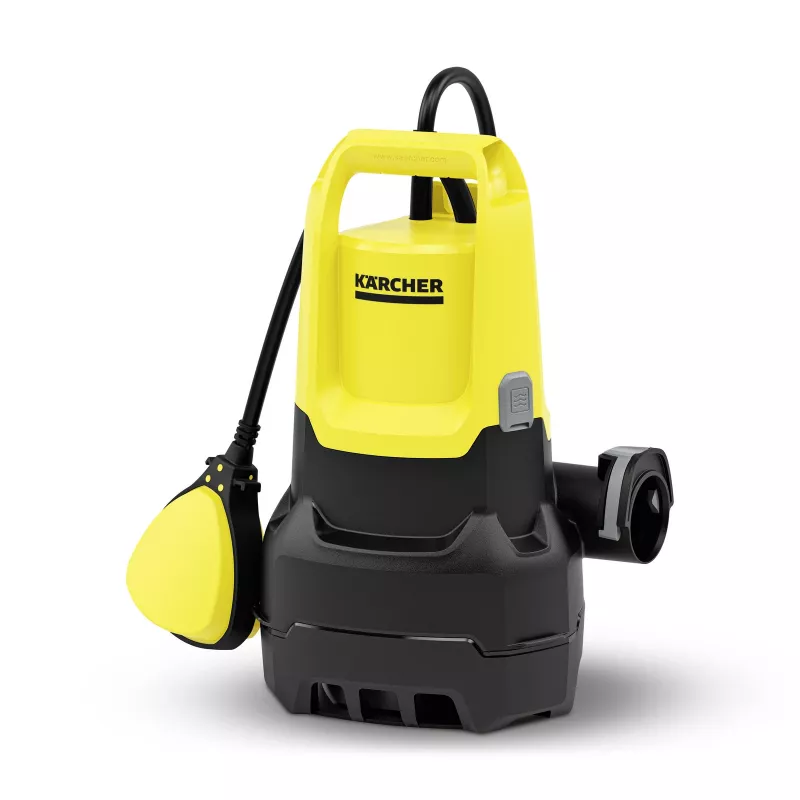

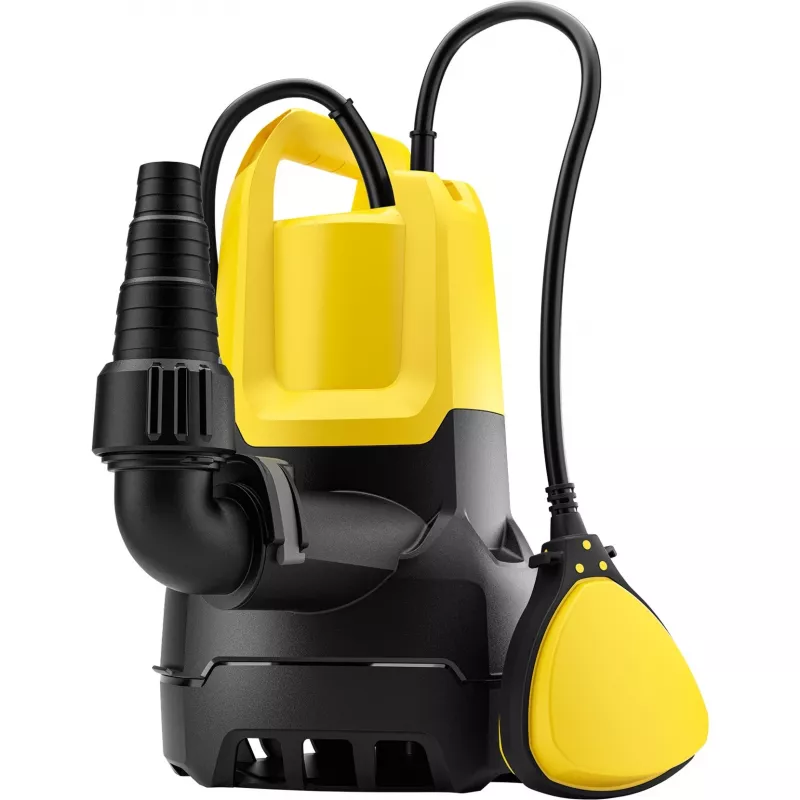

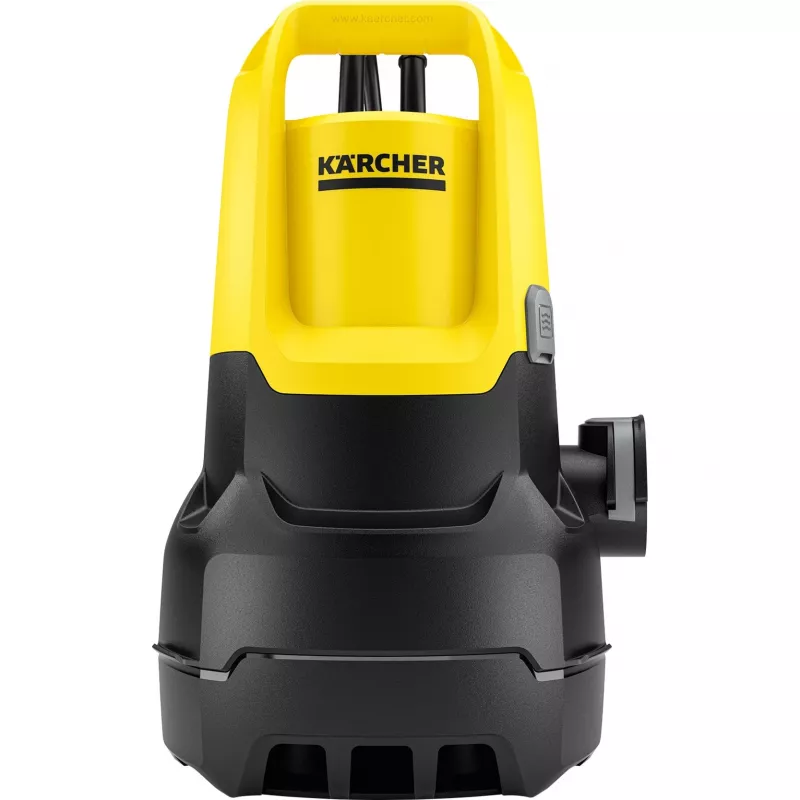

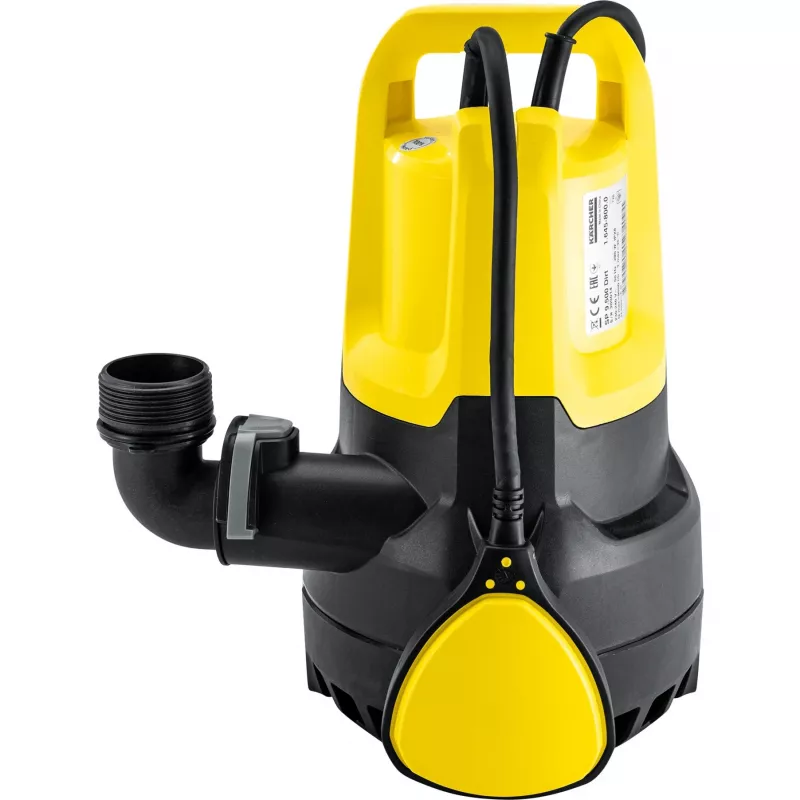

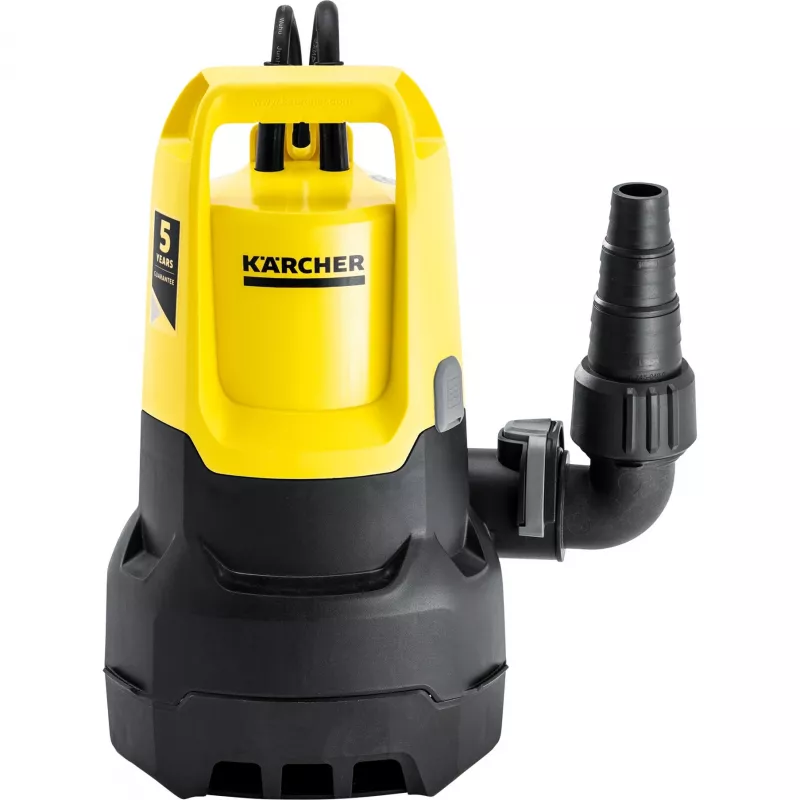

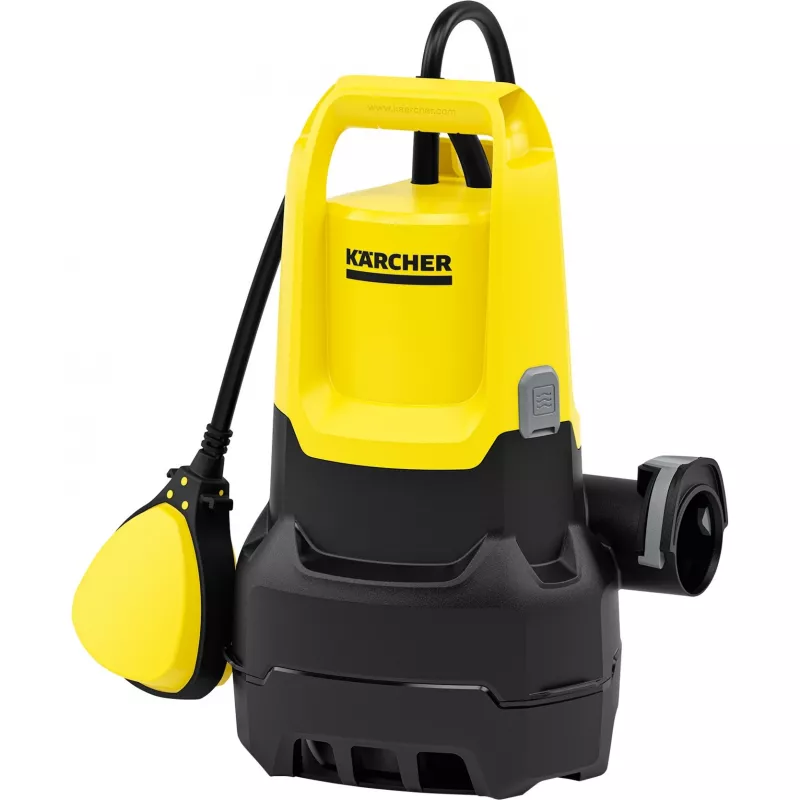

Submersible Pump Kärcher SP 11.000 DIRT

The Kärcher SP 11.000 DIRT submersible pump delivers up to 11,000 litres per hour for rapid water removal from water butts, garden ponds and similar areas. It is designed to handle both clean and dirty water containing particles up to 20 mm in diameter and includes a float switch to automatically start and stop the pump according to the water level. The float switch can be fixed to allow operation down to a residual water depth of 25 mm. The pump is driven by a 400 W motor, supports a maximum immersion depth of 7 m and comes with a 10 m power cord. Dimensions are 238 × 229 × 303 mm (W × D × H). The housing is finished in black and yellow and the unit is compatible with Quick Connect fittings for 1", 1 1/4" and 1 1/2" hoses.

Advantages

The SP 11.000 DIRT combines high pumping capacity with the ability to handle coarse dirt particles up to 20 mm, reducing the need for pre-filtration in many applications. A robust slide ring seal is used to extend service life and the integrated float switch prevents dry running. Quick Connect thread compatibility speeds up hose attachment and the pump can be operated at very low residual water levels when the float switch is secured.

Suitable for

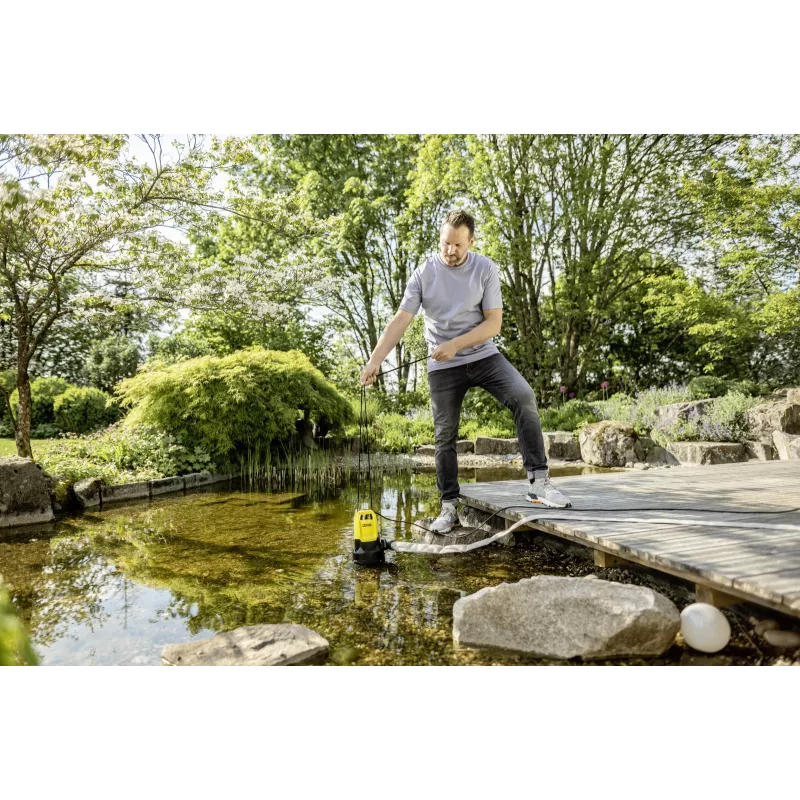

• Pumping down garden ponds and water butts
• Removing dirty or debris-laden water from basements and construction sites
• Draining puddles and flooded outdoor areas

Key specifications

• Pumping capacity: up to 11,000 l/h
• Motor power: 400 W
• Max immersion depth: 7 m
• Residual water level: 25 mm (2.5 cm)
• Particle size handling: up to 20 mm
• Cable length: 10 m
• Dimensions (W×D×H): 238 × 229 × 303 mm
• Compatible hose connections: 1", 1 1/4", 1 1/2" (Quick Connect)
• MPN: 1.645-820.0 • EAN: 4054278951676

How to use

Place the pump in the water to be removed on a stable, level surface. Connect a suitable hose to the Quick Connect thread and secure the electrical connection. Leave the float switch free to operate automatically; to lower the residual water level, fix the float switch in the lowered position according to the instructions. Monitor the pump during operation and disconnect power before performing maintenance or removing the unit from the water.

Recommendations

For prolonged service life, avoid pumping liquids containing particles larger than 20 mm unless using an appropriate external prefilter. Regularly check and clean the impeller area and sealing surfaces; consider extending the warranty where available for additional protection.
