Slim Bay Wechselrahmen für 2 x 2.5? U.2 NVMe SSD mit 5.25? Rahmen

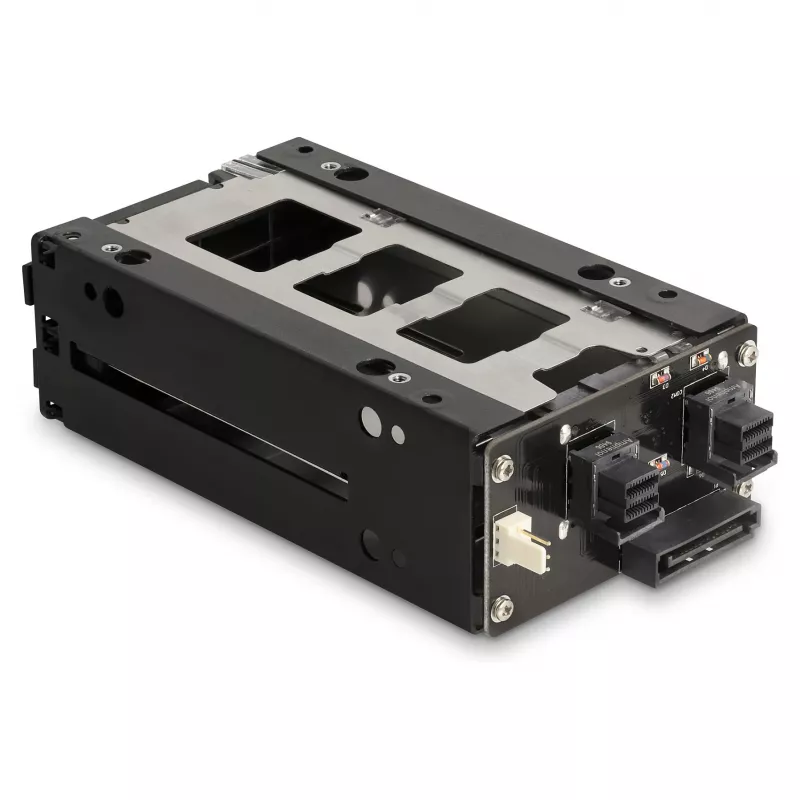

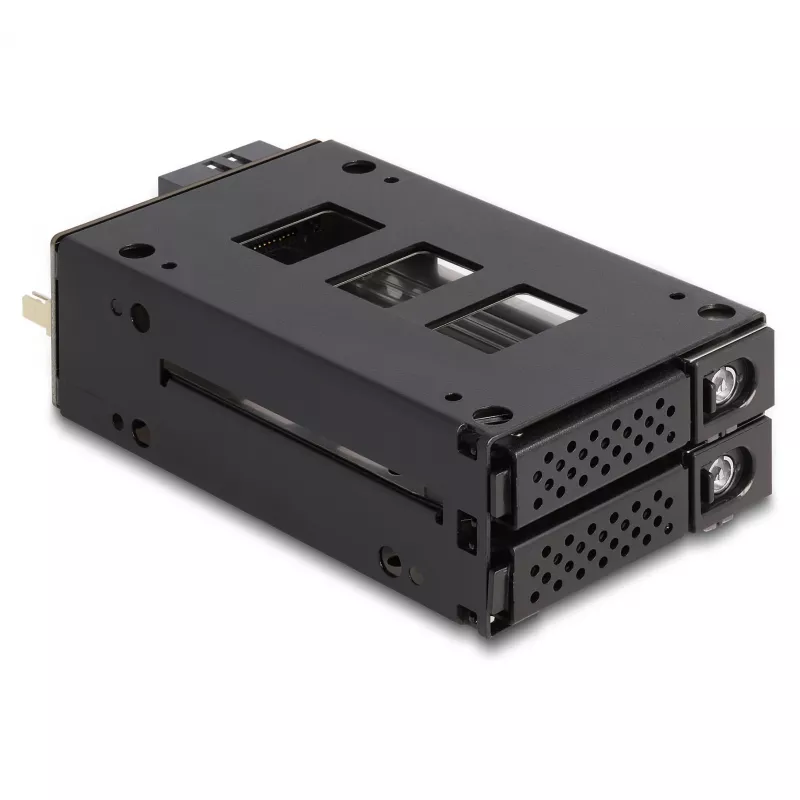

The DeLOCK Slim Bay Mobile Rack is a solid metal tray designed to hold two 2.5" U.2 NVMe SSDs and to be installed in a free 5.25" bay of a PC using the included frame. It can also be mounted directly into a server rack or a 19" storage enclosure. The unit has a black finish, measures 140 mm × 145 mm × 42 mm and is compatible with Windows 10, 11, 8.1 and Linux Kernel 5.8 / 5.9.

Advantages

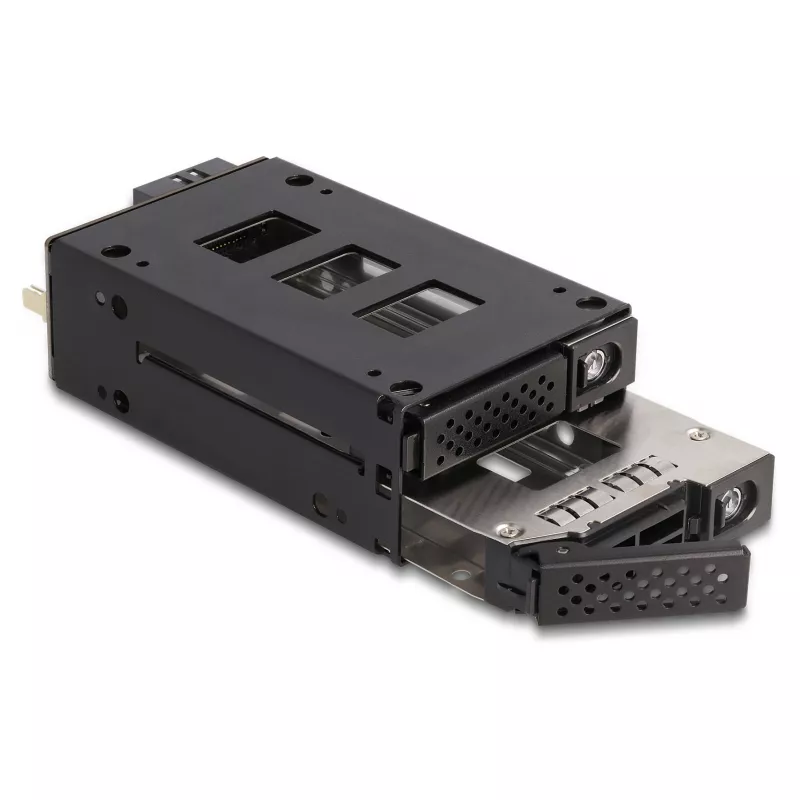

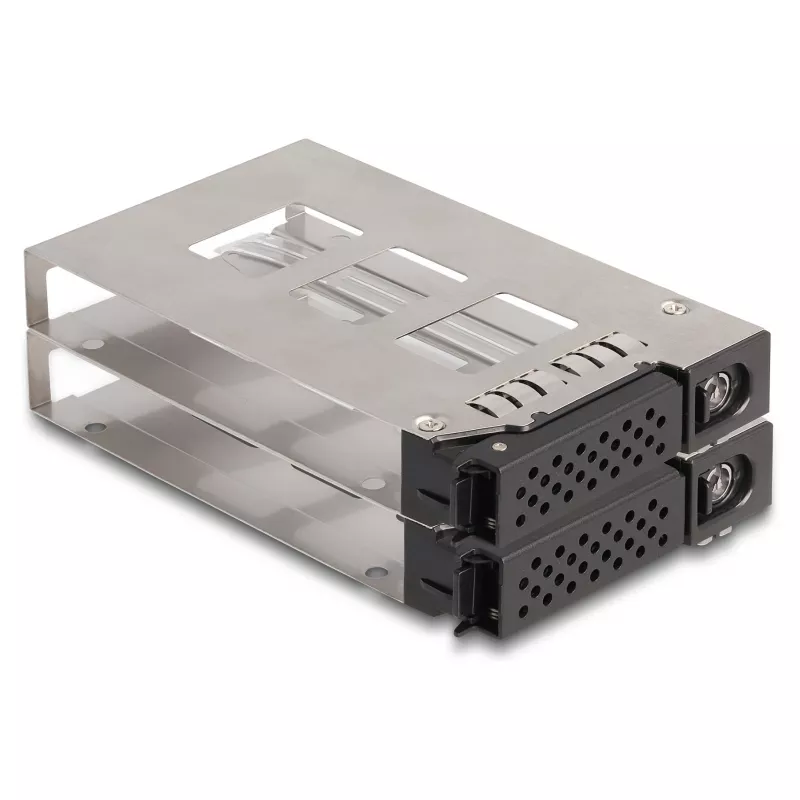

The mobile rack enables quick hot-swap style exchange of U.2 NVMe SSDs via a special mechanism, facilitating fast data backups and transport. Its metal construction provides stability and durability while integrated springs on the top and bottom reduce vibrations. A tray key lock and two included keys offer physical access protection.

Suitable for

• Systems requiring easy removal and replacement of 2 x 2.5" U.2 NVMe SSDs
• PC 5.25" bays, server racks or 19" storage enclosures
• Secure transport or off-site storage of SSDs for backups

Key specifications

• Supported drives: 2 × 2.5" U.2 NVMe SSD
• Form factor: Slim bay mobile rack for 5.25" installation
• Material: Metal
• Colour: Black

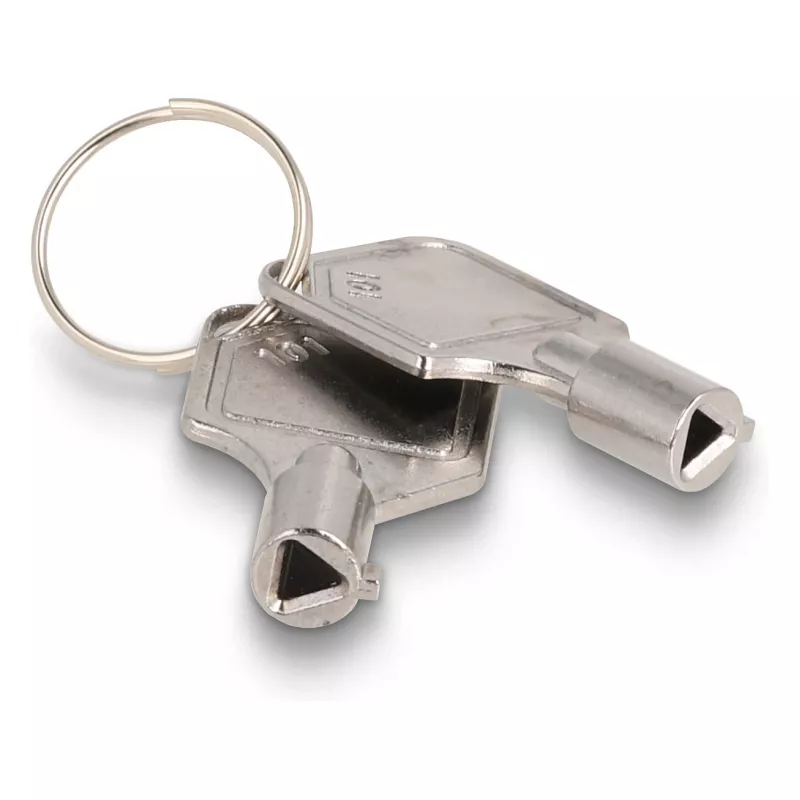

• Security: Tray with key lock (includes 2 keys)
• Vibration damping: Springs on top and bottom
• Compatibility: Windows 10, 11, 8.1; Linux Kernel 5.8, 5.9
• Dimensions: 140 mm (W) × 145 mm (D) × 42 mm (H)

How to use

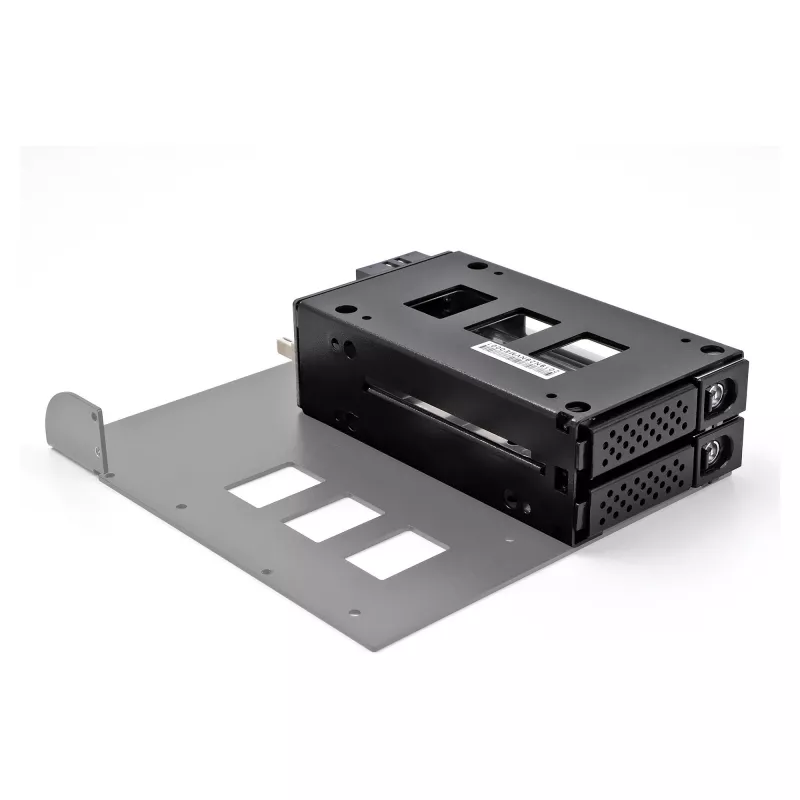

Install the included 5.25" frame into an available 5.25" bay of your PC or mount the mobile rack directly into a server rack or 19" enclosure. Slide the drive tray into the rack and secure it with the key lock to prevent unauthorised access. To exchange an SSD, unlock the tray with the supplied key and use the quick-change mechanism to remove or insert the 2.5" U.2 NVMe SSDs.

Recommendations

When handling SSDs, switch off power or follow hot-swap procedures supported by your system. Keep the supplied keys in a secure place to maintain physical security. Ensure the rack is mounted firmly and that drive connections are seated properly before powering the system.
