SSD enclosure Silverstone MS13 Black M.2 PCIe 3.0 10 Gbit/s

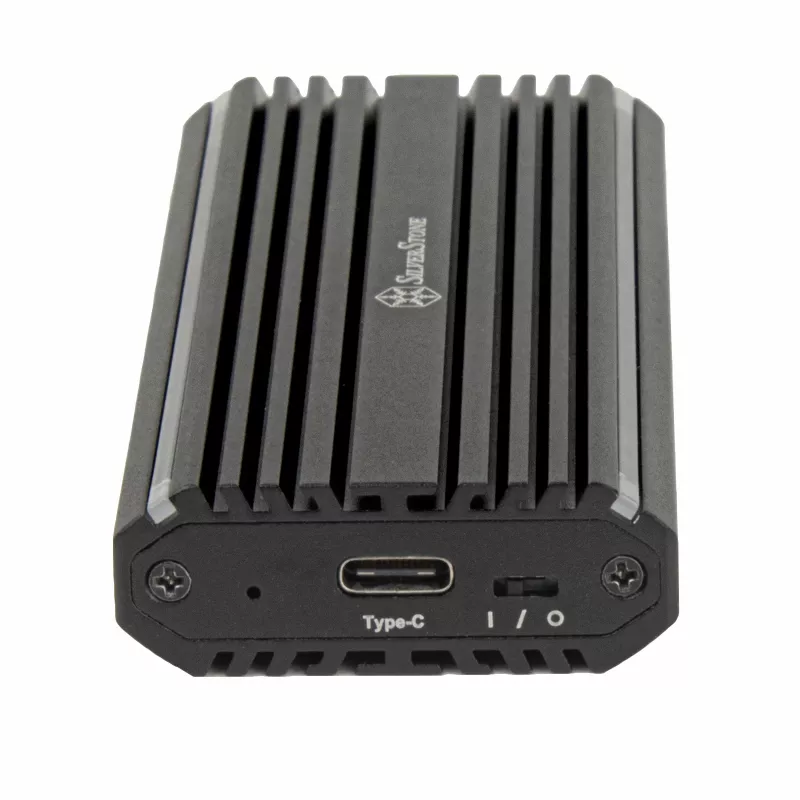

The Silverstone MS13 Black M.2 PCIe 3.0 10 Gbit/s is a single-bay SSD enclosure designed for M.2 drives. It uses a USB Type-C connection with USB 3.2 Gen 2 (3.1 Gen 2) support to deliver SuperSpeed transfers up to 10 Gbit/s. The enclosure houses M.2 NVMe and SATA form-factor drives and features an aluminium body with a sandwich layered design for improved heat dissipation and structural stability. Integrated RGB lighting indicates storage drive status while the compact black aluminium chassis keeps the unit lightweight and portable.

Advantages

The aluminium alloy body and layered construction provide effective heat transfer from the M.2 SSD, reducing thermal throttling during sustained transfers. Native support for PCIe 3.0 and Serial Attached SCSI interfaces ensures compatibility with high-performance NVMe drives and certain SATA-based adapters. The USB Type-C connector with USB 3.2 Gen 2 delivers up to 10 Gbit/s throughput for fast backups and file transfers. RGB lighting gives a visual status indication of the drive, and the enclosure supports multiple M.2 lengths for broad drive compatibility.

Suitable for

• Expanding external storage capacity with an M.2 NVMe or SATA SSD
• High-speed data transfer, backup and file synchronization
• Portable access to large media libraries and project files
• Testing or cloning M.2 drives during maintenance or upgrades

Key specifications

• Supported drive count: 1 M.2 SSD
• Supported drive size: M.2 (supports 22x30, 22x42, 22x60, 22x80)
• Supported drive interfaces: PCI Express 3.0, Serial Attached SCSI

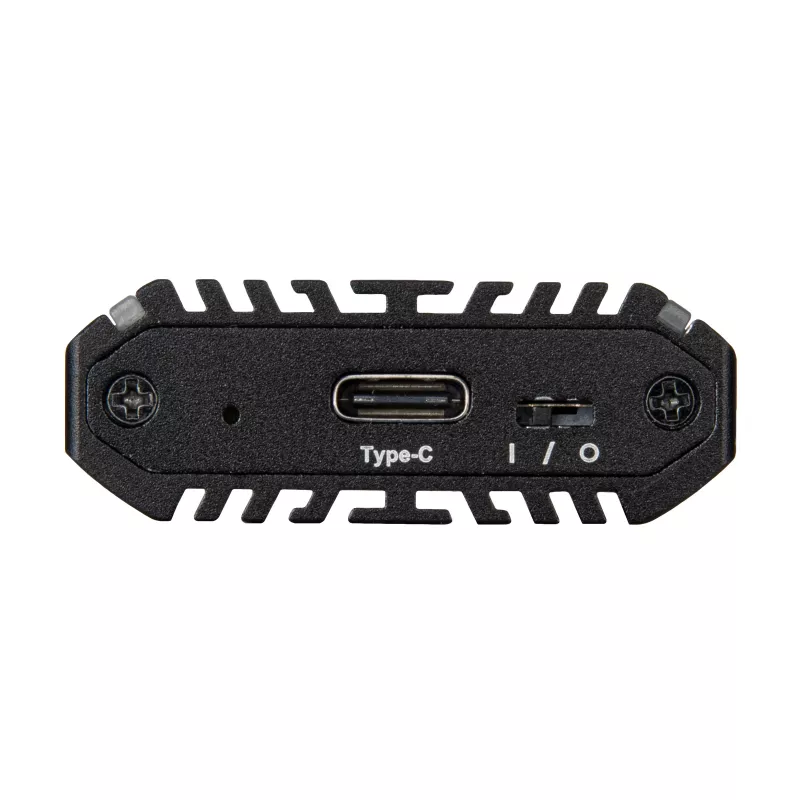

• Host interface: USB 3.2 Gen 2 (Type-C) up to 10 Gbit/s
• Material: aluminium alloy body for heat dissipation
• Product colour: black
• Weight: approximately 0.097 kg

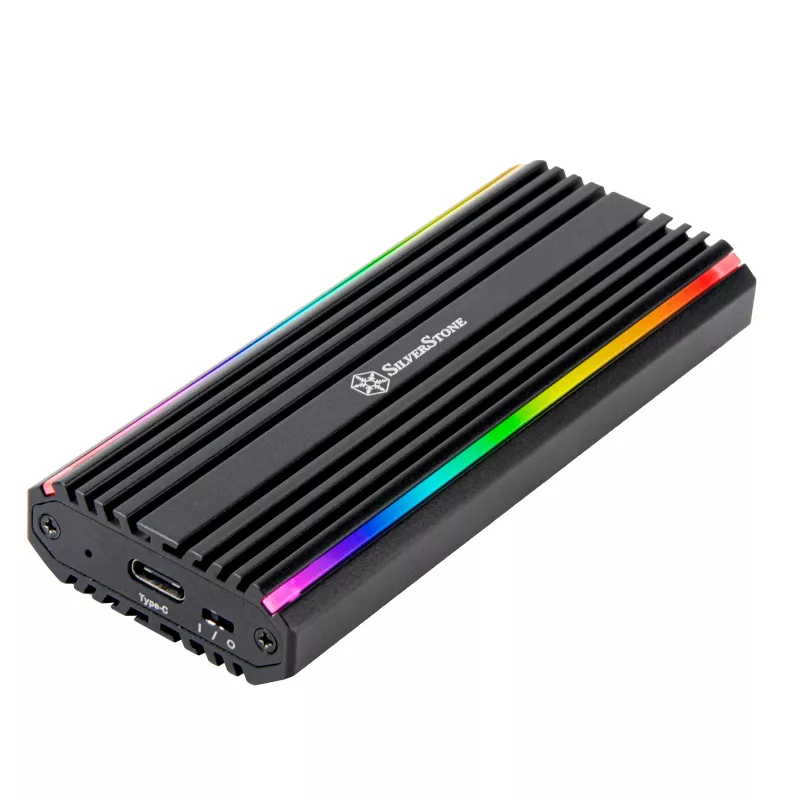

• Indicator: RGB lighting for drive status

How to use

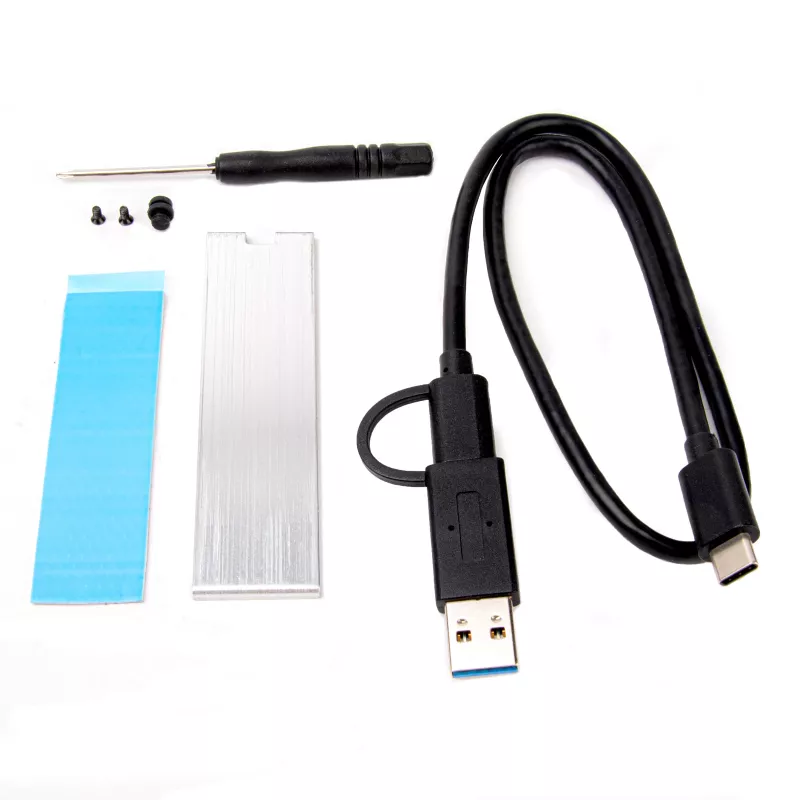

Open the enclosure according to the included assembly method, insert a compatible M.2 SSD into the M.2 slot and secure it at the appropriate length position (22x30, 22x42, 22x60, or 22x80). Reassemble the enclosure and connect it to a host device using a USB Type-C cable supporting USB 3.2 Gen 2. The host will detect the drive as an external storage device; format the drive if required by your operating system before first use. Monitor the RGB indicator to confirm drive activity and status during transfers.

Recommendations

For optimal thermals, place the enclosure on a flat, well-ventilated surface during sustained transfers and avoid covering the aluminium body. Use a USB Type-C cable rated for USB 3.2 Gen 2 to achieve the advertised 10 Gbit/s speeds. Ensure the M.2 drive is compatible with PCIe 3.0 or SATA protocols as required, and handle the drive with ESD precautions during installation.
