Delock Slim - Mobiles Speicher-Rack - slim bay (47005)

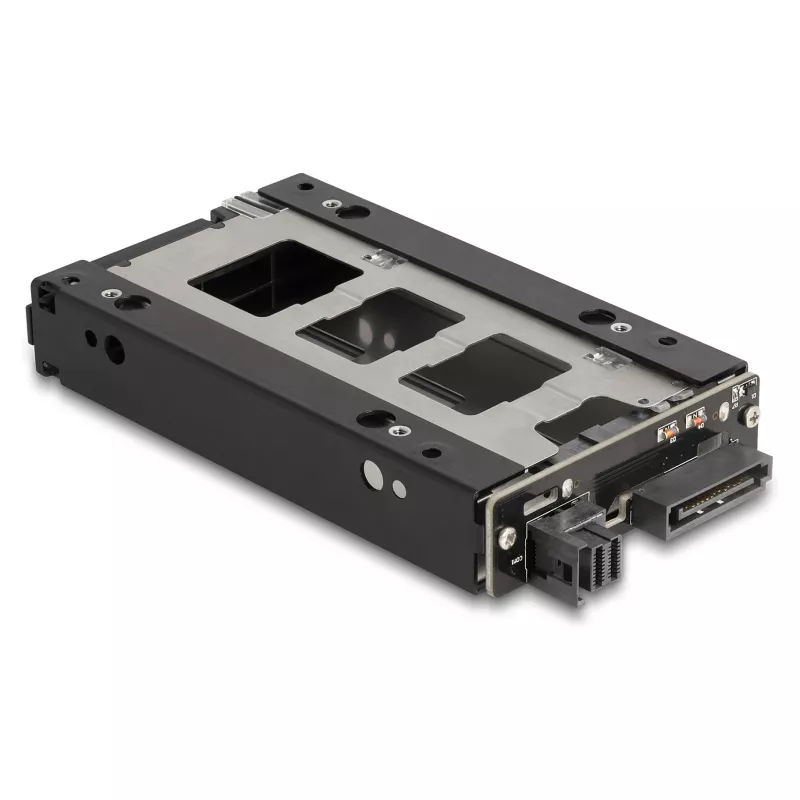

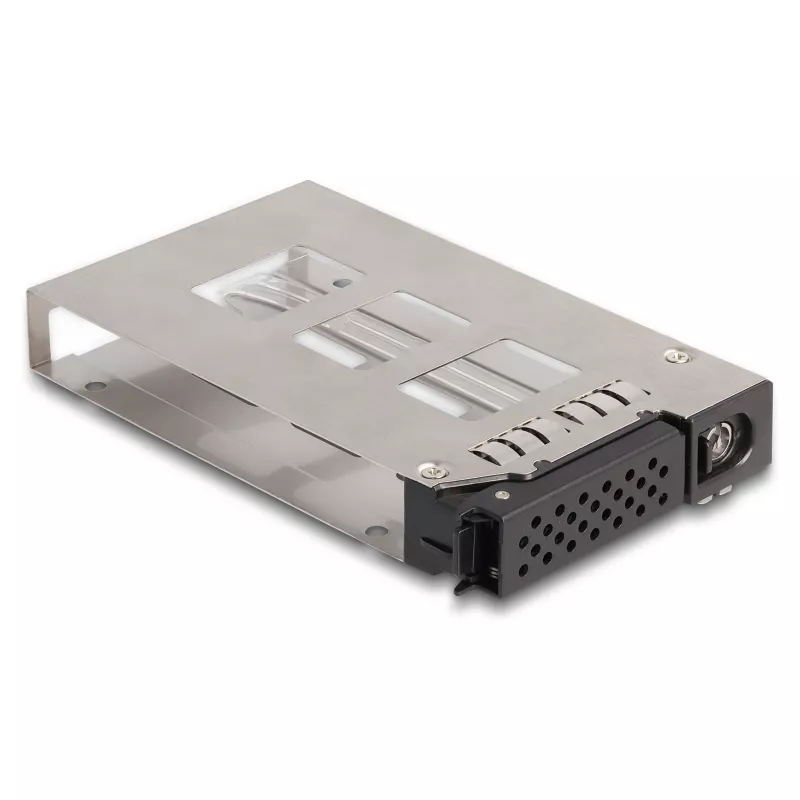

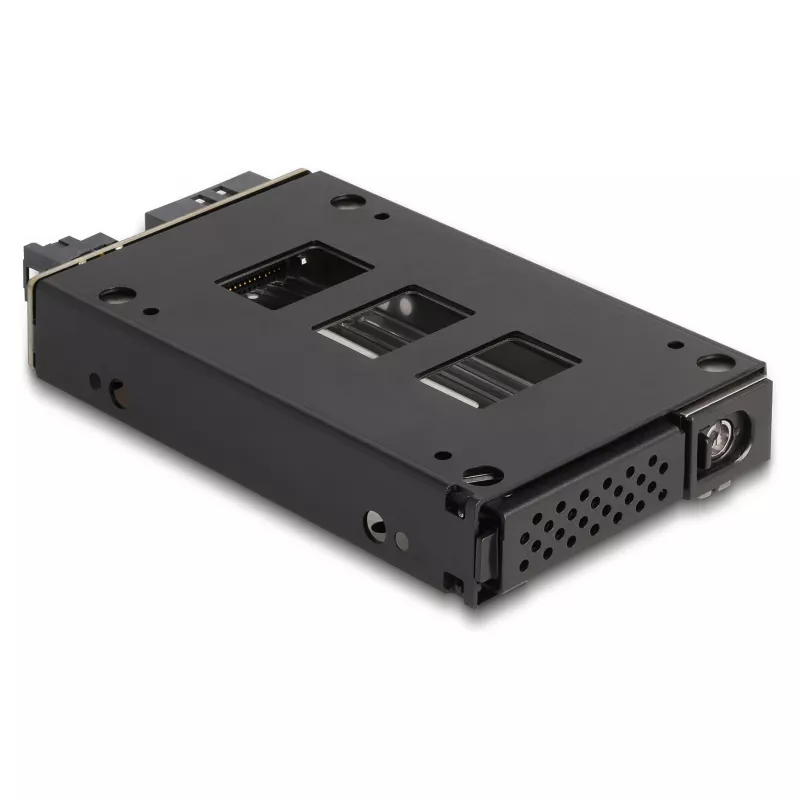

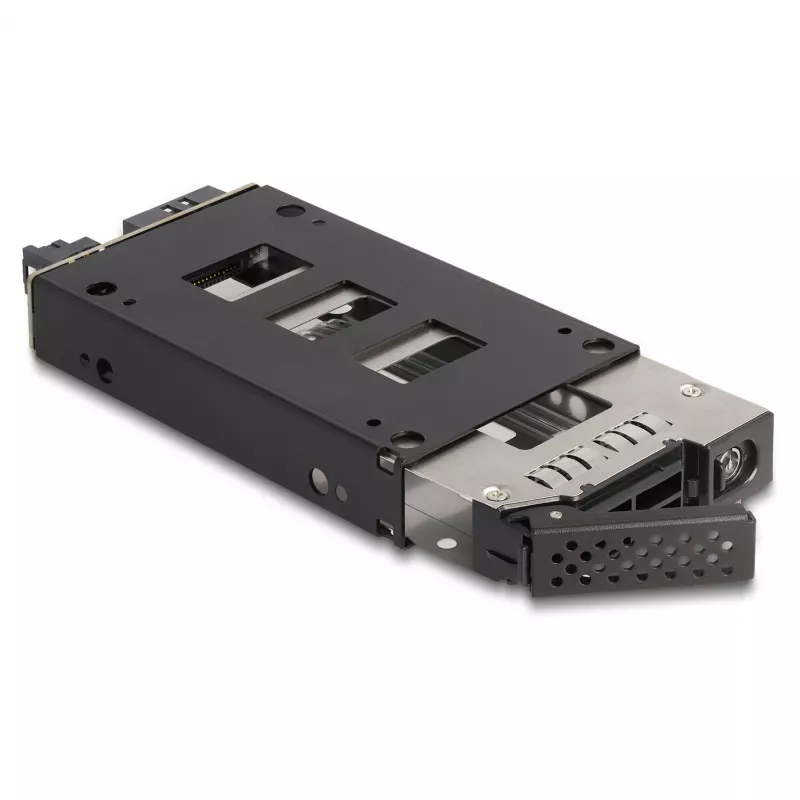

The DeLOCK Slim Bay Mobile Rack is a solid metal tray designed to hold one 2.5" U.2 NVMe SSD. It fits into a free 3.5" or 5.25" bay with the use of an optional frame and can also be deployed directly in a server rack or 19" storage enclosure. The unit measures 72 mm in width, 140 mm in depth and 21 mm in height and is available in black and silver. The package includes two lock keys and the tray is compatible with common operating systems such as Windows 10, 11, 8.1 and Linux (kernel 5.8, 5.9).

Advantages

The metal construction provides a robust carrier for a 2.5" U.2 NVMe SSD while integrated springs at the top and bottom help reduce vibration. A special quick-change mechanism allows fast and easy swapping of the SSD for tasks such as data backup or drive replacement. A keyed lock on the tray prevents unauthorised access and the slim form factor supports installation in multiple enclosure types.

Suitable for

• Secure removable storage of a single 2.5" U.2 NVMe SSD
• Frequent SSD swapping for backups or maintenance
• Use in desktop PC bays (with optional frame) or 19" server/storage enclosures

Key specifications

• Supported drive: 1 x 2.5" U.2 NVMe SSD
• Dimensions: 72 mm (W) x 140 mm (D) x 21 mm (H)
• Material: Metal
• Product colour: Black, Silver

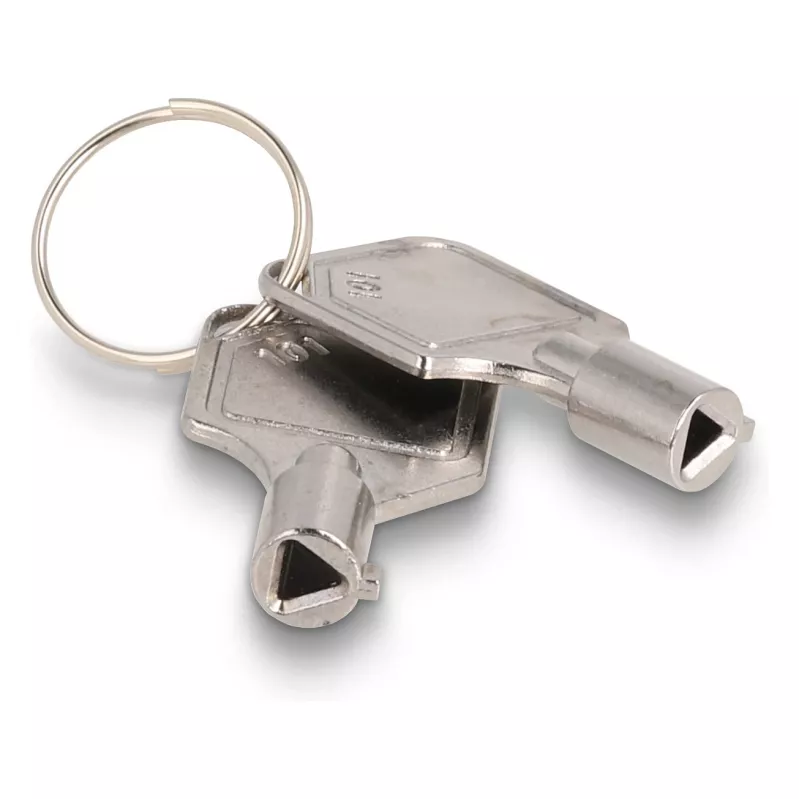

• Includes: 2 lock keys
• Compatibility: Windows 10, 11, 8.1; Linux kernel 5.8, 5.9

How to use

Install the mobile rack into a compatible bay: either mount it into a free 3.5" or 5.25" bay using the optional frame, or insert it directly into a 19" server or storage enclosure. Insert the 2.5" U.2 NVMe SSD into the tray and engage the quick-change mechanism to secure the drive. Lock the tray with the supplied key to prevent unauthorised removal. To remove or replace the SSD, unlock the tray, operate the quick-release mechanism and swap the drive as needed.

Recommendations

For reliable operation, use the DeLOCK Slim Bay Mobile Rack in compatible enclosures and follow the operating system compatibility requirements. Keep the provided keys in a secure place and ensure the drive is properly seated before locking the tray to avoid connection issues.
