DeLOCK USB Type-C Docking Station for 2 x SATA HDD / SSD - HDD-Dockingstation Schächte: 2 - 2.5 / 3.5 gemeinsam genutzt (6,4 cm/8,9 cm gemeinsam genut

The DeLOCK 64090 storage drive docking station provides an external connection for two 2.5" or 3.5" SATA HDD or SSD drives via a USB-C™ interface. The transparent plastic housing accepts drives directly without an external enclosure and includes a USB Type-C™ to USB Type-A cable to connect to a host with a USB-A port. It is compatible with Serial ATA III drives and supports USB 3.2 Gen 1 data transfer speeds up to 6 Gbit/s. Compact dimensions (75 × 142 × 58 mm) and universal AC input (100–240 V) make it suitable for desktop use and portable setups where quick access to multiple drives is required.

Advantages

The docking station accepts both 2.5" and 3.5" SATA HDD/SSD drives, allowing direct hot-swapping without additional enclosures. A USB 3.2 Gen 1 Type-C interface provides up to 6 Gbit/s transfer rate, and the included USB-C to USB-A cable ensures compatibility with hosts that only offer USB-A ports. The transparent plastic housing makes drive status and connections visible while keeping the device lightweight.

Suitable for

• Data transfer and cloning between two SATA drives
• Accessing backups and archived drives
• Temporary expansion of storage for desktops or workstations
• IT maintenance, drive diagnostics and data recovery tasks

Key specifications

• Supported drives: 2 × 2.5" or 3.5" SATA HDD/SSD (Serial ATA III)
• Interface: USB 3.2 Gen 1 Type-C (max. 6 Gbit/s)
• Included cable: USB Type-C to USB Type-A
• Power: AC input 100–240 V
• Material and colour: Transparent plastic
• Dimensions (W × D × H): 75 × 142 × 58 mm

How to use

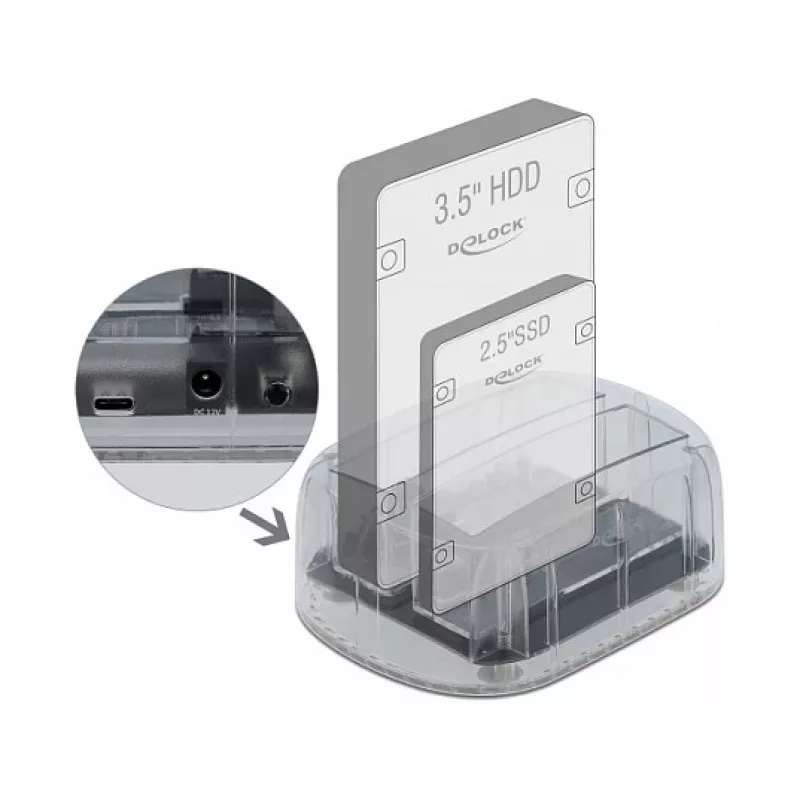

Place the SATA drives into the docking slots until they engage with the connector and secure in an upright position. Connect the docking station to a host computer using the supplied USB Type-C to USB Type-A cable or a USB-C host cable if available. After the host recognises the drives, access them via the operating system's file manager for file transfers, cloning, or diagnostics. Always follow the operating system's safe removal/eject procedure before unplugging drives.

Recommendations

Use on a stable, flat surface with adequate ventilation; avoid exposure to liquids or extreme temperatures. For best performance, connect to a USB 3.0/3.1/3.2 Gen 1 port. Do not force drives into the slot; if a drive does not fit easily, check size and connector alignment.
