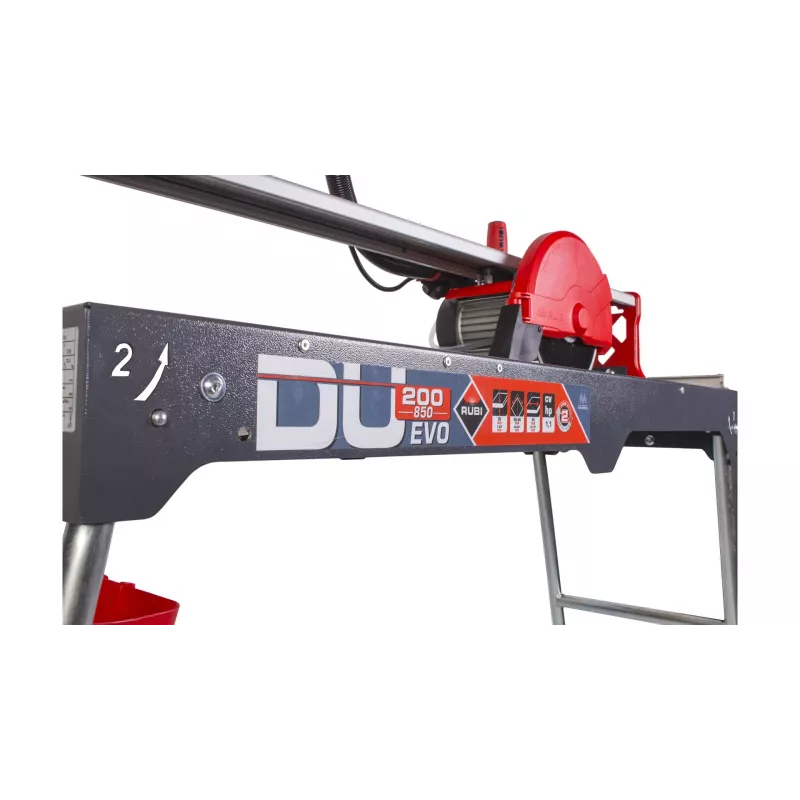

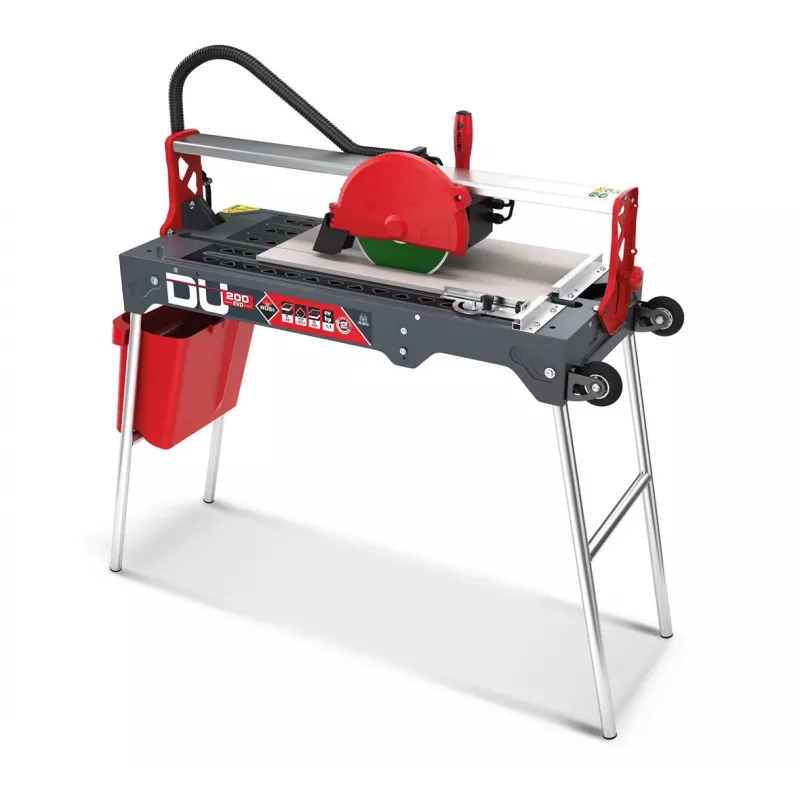

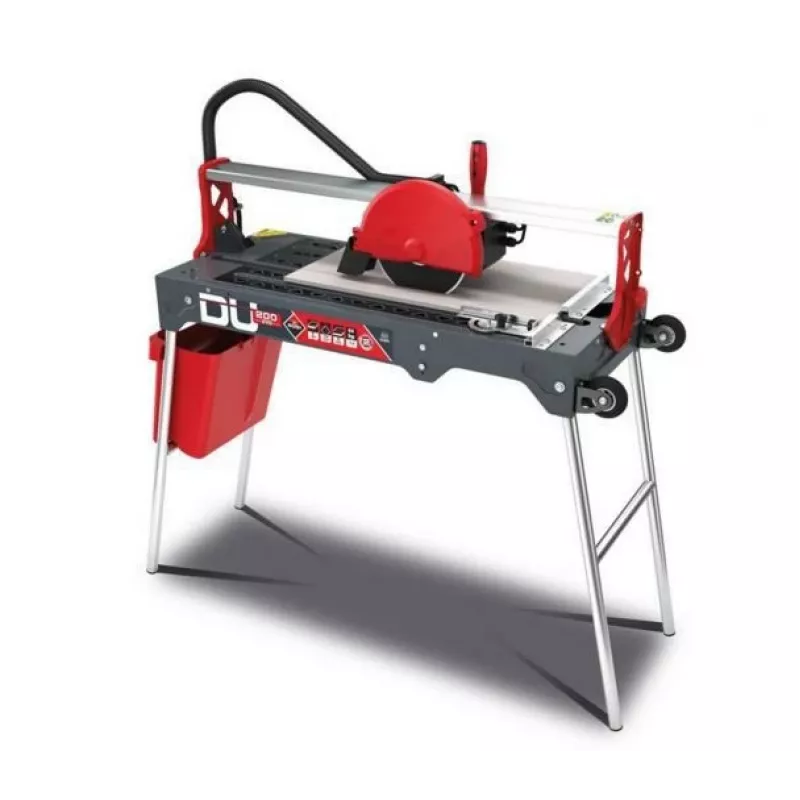

Stationary tile saw RUBI DU-200 EVO 850

The RUBI DU-200 EVO 850 is a stationary electric tile saw designed for renovations and light professional work. It features a 0.8 kW (1.1 HP) direct-drive motor with thermal protection, a 200 mm continuous rim diamond blade (CEV-SUPERPRO) for general ceramic tile cutting, and an 8 W water pump with flow control for disk cooling. The head slides on four bearings, folds to 45° for mitre cuts and has a bi-material handle for improved ergonomics. The saw includes an 8-litre removable tank with an efficient water collection system, folding legs that provide a 90 cm working height, integrated wheels and chassis handle for transport, and an aluminium millimetre ruler with an adjustable lateral stop for repetitive and angular cuts from 0° to 45°.

Advantages

The DU-200 EVO combines a compact footprint with a powerful 850 W motor and a thermal protector to ensure reliable operation during extended use. The RUBI C3 SYSTEM allows regulation of cooling and cleaning of the blade, improving diamond blade performance, while the adjustable water flow and efficient water recovery reduce consumption and maintenance. Foldable head, folding legs and transport wheels simplify handling and setup on site, and the removable tank makes filling and cleaning quick and convenient.

Suitable for

• General cutting of glazed ceramic tiles (BIII)
• Cutting of stoneware (BIIa)
• Occasional cutting of porcelain stoneware (BIa)
• Small renovation and light professional tile installation jobs

Key specifications

• Model: RUBI DU-200 EVO 850 (MPN 54975, EAN 8413797549751)
• Motor power: 0.8 kW (1.1 HP), 850 W maximum
• No-load speed: 2790 RPM
• Blade: 200 mm continuous rim diamond blade (CEV-SUPERPRO) included
• Blade cooling: 8 W water pump with flow control and RUBI C3 SYSTEM
• Tank capacity: 8 litres, removable

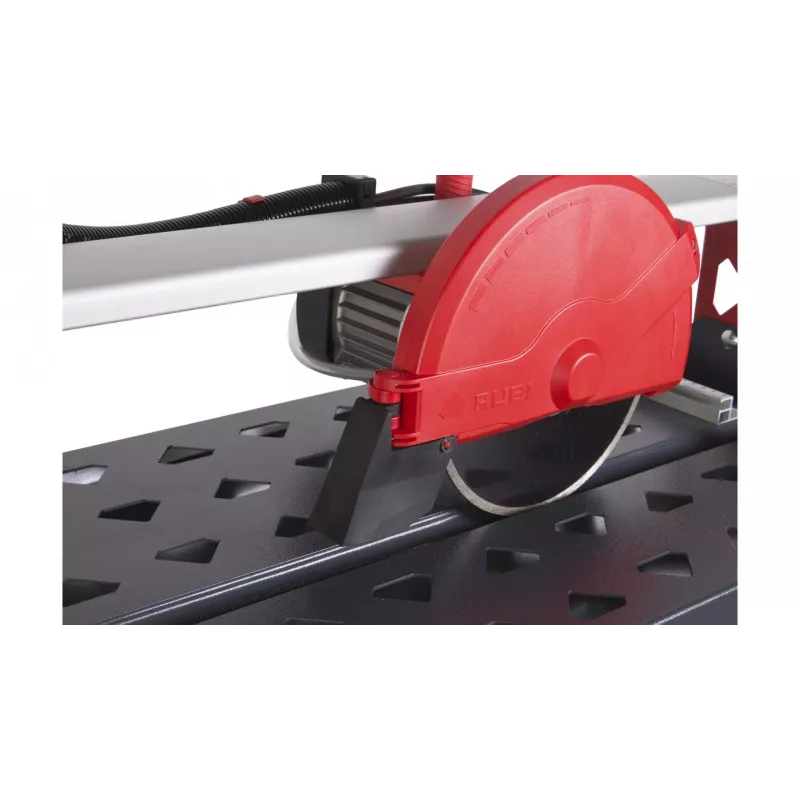

• Head: slides on 4 bearings, foldable to 45° for mitre cuts
• Working height with legs folded out: 90 cm
• Dimensions (approx.): width 390 mm, depth 1360 mm, height 1020 mm

How to use

Place the saw on a stable, level surface and unfold the legs to obtain the 90 cm working height. Fill the removable 8-litre tank with clean water, adjust the flow using the pump control valve and set the RUBI C3 SYSTEM to position the cooling spray on the blade as required. Mount the supplied 200 mm diamond blade if not already fitted, connect the saw to a compatible power supply and switch on the motor. Slide the tile against the lateral stop or ruler for repetitive cuts, or adjust the head to the required angle up to 45° for mitre cuts. Feed the tile steadily into the rotating blade, keeping hands clear of the cutting path and using appropriate personal protective equipment.

Recommendations

Use appropriate diamond blades for the specific tile type when cutting porcelain stoneware more frequently; maintain the water level and clean the tank regularly to preserve pump performance; wear eye and hearing protection and use gloves when operating the saw.
