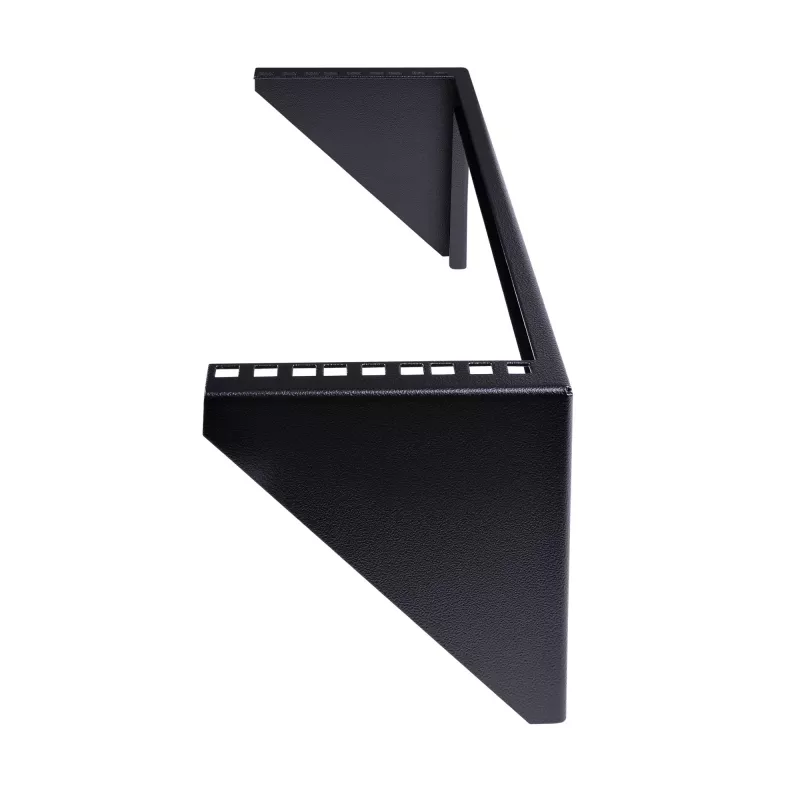

StarTech.com 3U 19 inch Wall Mount Vertical Rack Bracket, Black, 150lb Capacity

Wall mount rack brackets like this 3U vertical model solve space constraints by mounting 19-inch equipment flat against a wall. The StarTech.com RK319WALLV supports up to 150 lb (68 kg) of patch panels, switches, or AV gear in an open-frame steel design that maximizes airflow and keeps cabling accessible.

Advantages

The 14-gauge steel bracket mounts to standard 16-inch stud spacing, making installation straightforward in offices, home labs, or server rooms. Vertical orientation frees floor and desk space, while the open frame allows unrestricted airflow to prevent overheating. Included cage nuts and screws let you mount equipment of any depth without extra hardware.

Suitable for

• Small offices and home offices (SoHo) needing compact rack storage
• Network closets with limited floor space
• AV installations where equipment must be hidden behind displays
• IT technicians setting up temporary or remote workstations

Key specifications

• Rack units: 3U (vertical mounting)
• Rack width: 19 inches (EIA-310-D compliant)
• Weight capacity: 150 lb (68 kg)
• Material: Powder-coated steel (black)

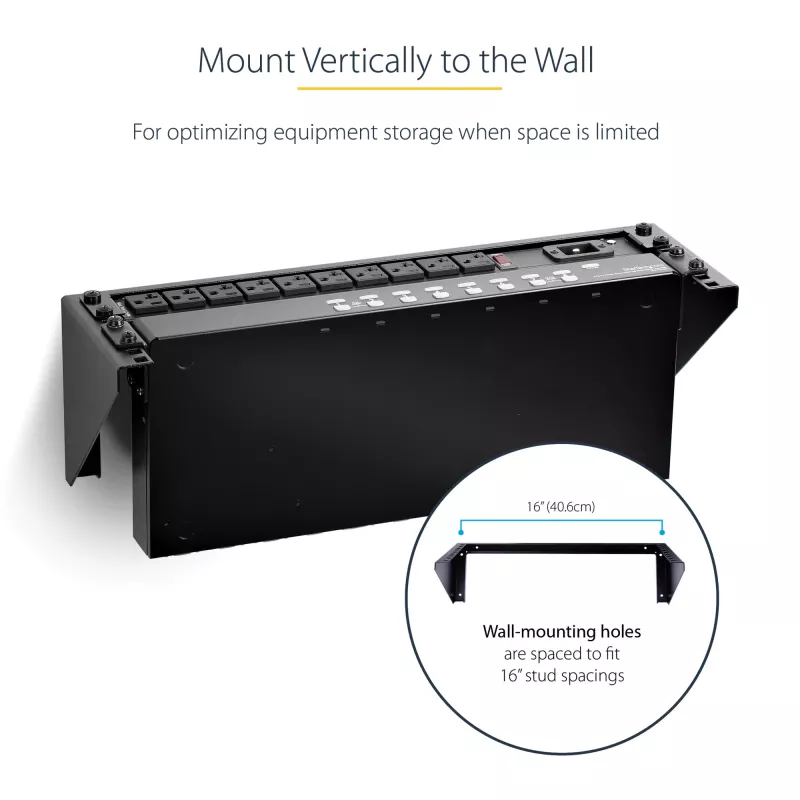

• Mounting: Wall mount, 16-inch stud spacing

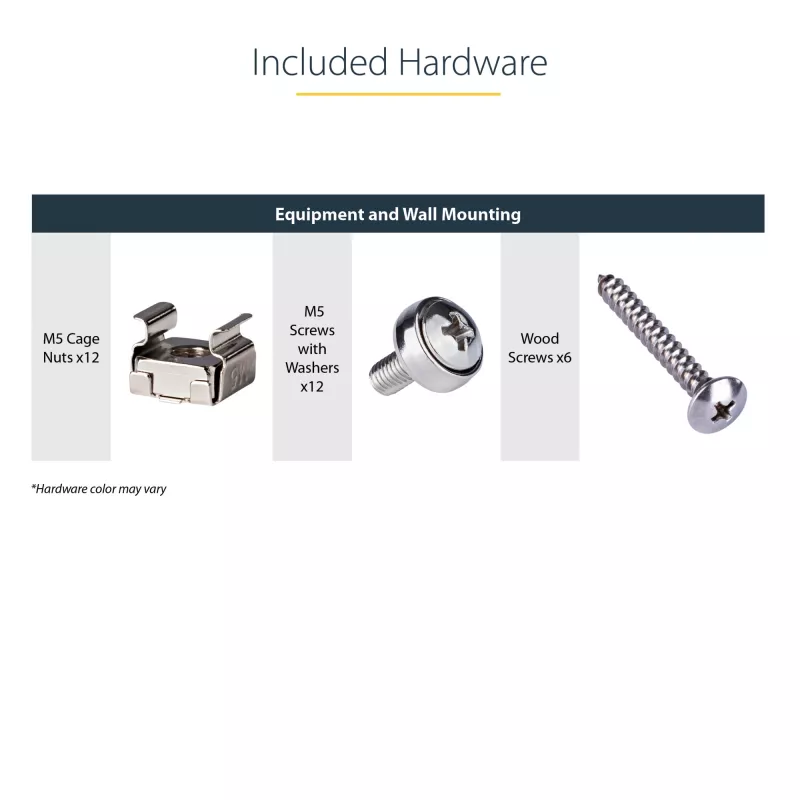

• Included hardware: 6 wood screws, 12 M5 cage nuts, 12 M5 screws
• Warranty: Lifetime

Recommendations

For a durable, space-saving vertical rack solution, the RK319WALLV is a solid choice. Its steel construction and high weight capacity make it suitable for both lightweight patch panels and heavier networking equipment. The open design simplifies cable management and cooling, and the lifetime warranty adds long-term confidence.
