StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC

StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC
StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC
StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC
StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC
R564
Connect fiber network devices for high-speed transfers with LSZH rated cableThe SMFIBLCLC1 1m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode ap... Read More
Stock 23 Code 1187328 Brand StarTech Model SMFIBLCLC1 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Connect fiber network devices for high-speed transfers with LSZH rated cable

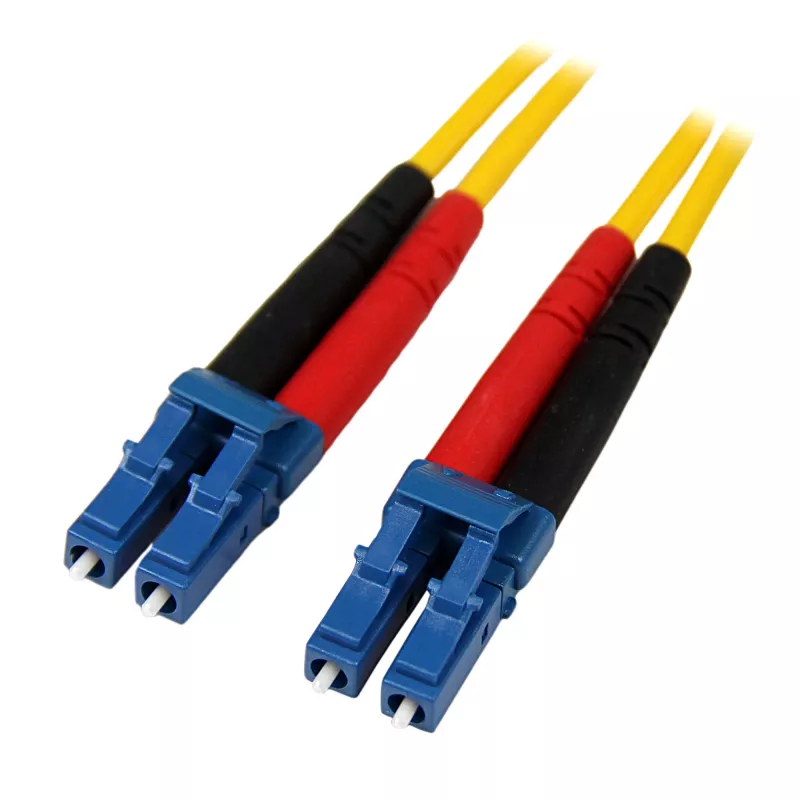

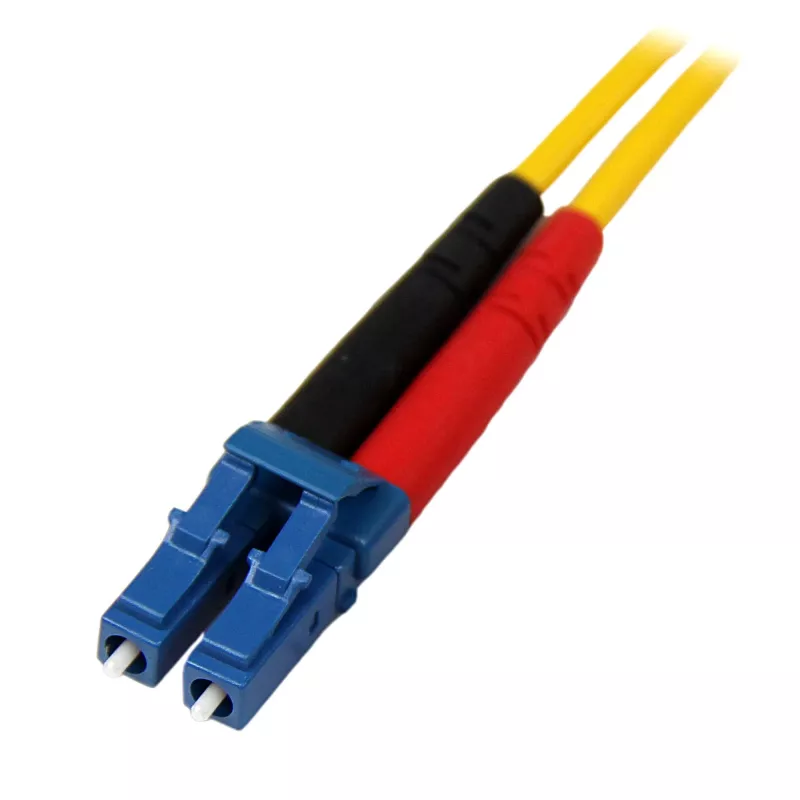

The SMFIBLCLC1 1m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

The StarTech.com Advantage

StarTech.com 1m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC. Cable length: 1 m, Fibre optic type: OS1, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

Key Highlights
  • 2x LC SM male connectors
  • OS1 (9/125)
  • LSZH (Low-Smoke, Zero-Halogen) cable jacket
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors
  • OS1
  • 1 m
  • LC Male
  • LC Male
  • Jacket material: Low smoke zero halogen (LSZH)
  • 100 Gbit/s
  • Full duplex Single-mode
  • Yellow
Specifications
Cable length
1 m
Cladding diameter
125 µm
Compliance certificates
CE, RoHS
Connector 1
LC
Connector 1 gender
Male
Connector 2
LC
Connector 2 gender
Male
Core diameter
9 µm
Data transfer rate
100 Gbit/s
Fiber mode structure
Single-mode
Fibre optic type
OS1
Full duplex
Yes
Harmonized System (HS) code
85447000
Jacket material
Low smoke zero halogen (LSZH)
Master (outer) case height
396 mm
Master (outer) case length
437 mm
Master (outer) case width
399 mm
Operating temperature (T-T)
-20 - 60 °C
Package depth
220 mm
Package height
14 mm
Package weight
28 g
Package width
200 mm
Product colour
Yellow
Products per master (outer) case
320 pc(s)
Storage temperature (T-T)
-20 - 60 °C
Weight
19 g

Leaflet

Open Leaflet
