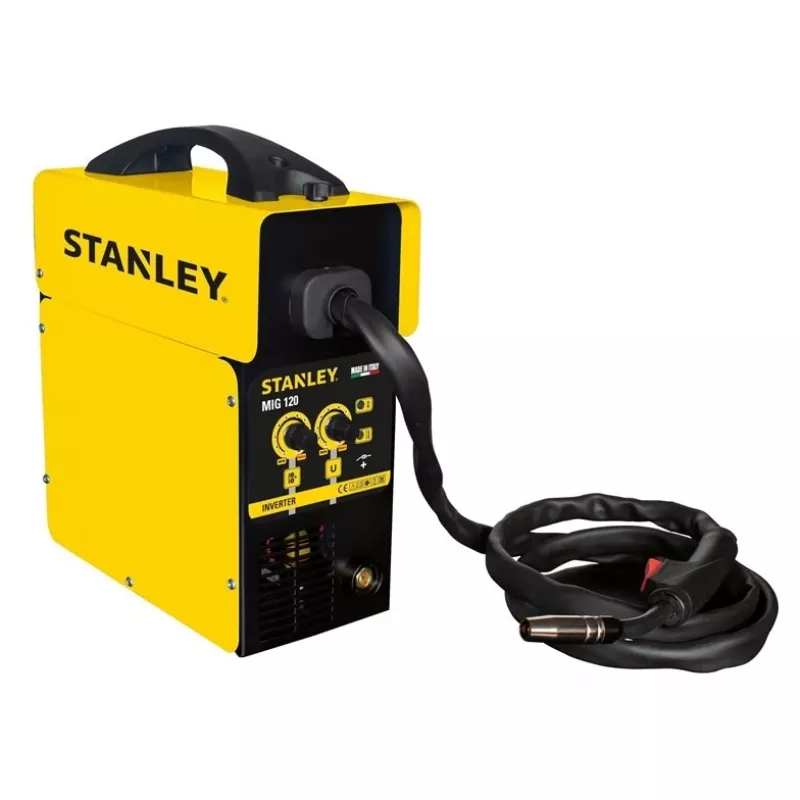

STANLEY MIG 120 Welding Machine – 100A Flux Core Gasless MIG Welder, 230V, 4-Step Power, Thermal Protection

The STANLEY MIG 120 stands apart from typical entry-level welders by delivering a genuine MIG/MAG process in a compact, gasless flux-core configuration. Instead of relying on bulky gas cylinders or complex setup, it uses self-shielded flux-cored wire, letting you start welding mild steel and stainless steel right out of the box. With four selectable power steps, a 30–100 A output range, and a duty cycle of 10% at full output, this machine handles light fabrication, repairs, and DIY projects with surprising authority for its size.

Highlights

• True MIG/MAG welding with flux-cored wire – no external gas required
• Output current 30–100 A with 4-step power adjustment for precise control
• Welds mild steel and stainless steel from 1.5 mm to 5 mm thickness
• Thermal overload protection and forced-air cooling for reliable operation
• Integrated MIG torch, 1.5 m earth clamp cable, and 2 m power cable for convenient reach
• Compact and portable – ideal for home workshops, garages, and light maintenance

In daily use

Set-up is straightforward: load a 1 kg spool of flux-cored wire (0.6–0.9 mm diameter, 100 mm spool), select one of the four power steps, and you are ready to weld. The machine runs on a standard 230 V supply at 50/60 Hz, drawing a maximum input power of 3.6 kVA. The IP21S protection rating and Class H insulation ensure safe operation in typical workshop environments. The forced-air cooling system keeps internal components at safe temperatures, while the thermal overload protection automatically shuts down the unit if it exceeds safe operating limits, preventing damage and extending service life.

Full specifications

• Welding process: MIG/MAG (flux core, gasless)
• Input voltage: 230 V
• Frequency: 50/60 Hz
• Max input power: 3.6 kVA
• Output current range: 30–100 A
• Duty cycle: 10% at 100 A
• Wire diameter: 0.6–0.9 mm (flux core)
• Wire spool capacity: max 1 kg (100 mm diameter)
• Insulation class: H
• Protection class: IP21S
• Cooling system: forced air (fan cooled)
• Number of power settings: 4 steps
• Thermal overload protection: yes
• Recommended material thickness: 1.5–5 mm
• Torch type: integrated MIG torch
• Earth clamp cable length: 1.5 m
• Power cable length: 2 m
• Applications: light fabrication, repairs, DIY projects
• Material compatibility: steel, stainless steel

Final note

The STANLEY MIG 120 is a reliable, no-nonsense welder that brings true MIG capability to your workshop without the hassle of gas cylinders. Its compact design and user-friendly controls make it an excellent choice for hobbyists and professionals alike.
