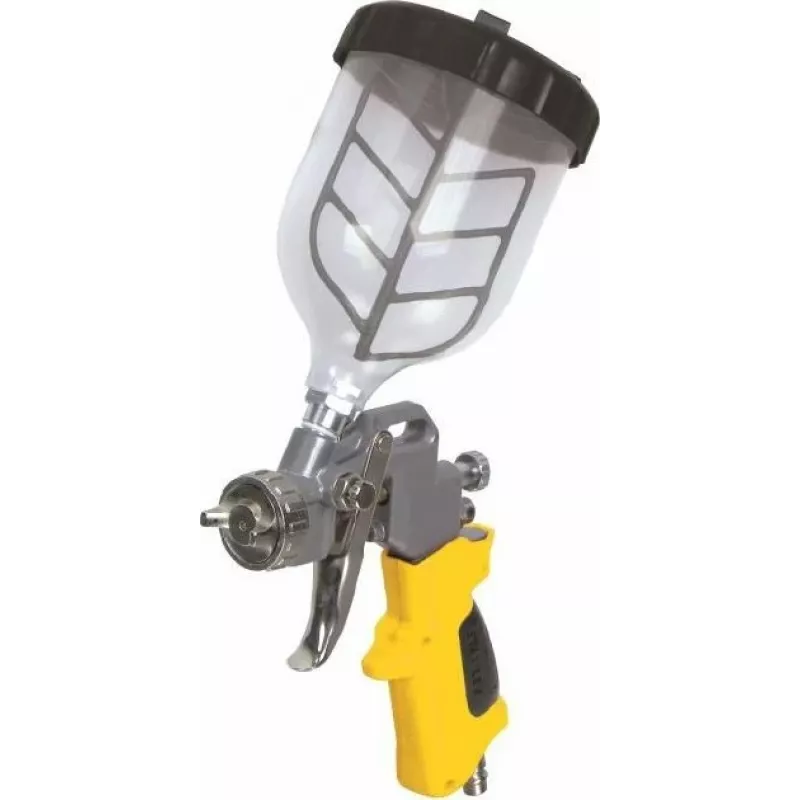

STANLEY HVLP Gravity Feed Spray Gun 1.5mm Nozzle with Integrated Mixer Cup, 600ml

Professional HVLP gravity feed spray gun with 1.5mm stainless steel nozzle and integrated mixer cup, delivering smooth, even finishes for lacquers, paints, and varnishes. The high-volume low-pressure design ensures maximum transfer efficiency and minimal overspray, while the 600ml plastic cup with built-in mixer keeps materials thoroughly blended for consistent atomization.

Advantages

The STANLEY spray gun combines precision engineering with user-friendly controls. Its aluminum alloy body is lightweight yet durable, and the chrome-plated finish resists corrosion from solvents. The two-stage trigger provides excellent control over material flow, while independent adjustments for fluid, fan pattern, and air pressure allow fine-tuning for any application. The integrated mixer cup eliminates the need for separate stirring, saving time and ensuring uniform viscosity throughout the job.

Suitable for

• Automotive refinishing and touch-ups
• Woodworking and furniture finishing
• Metal priming and topcoating
• Industrial maintenance and equipment painting
• DIY projects requiring professional results

Key specifications

• Nozzle diameter: 1.5 mm
• Spray gun type: HVLP (High Volume Low Pressure)
• Feed type: Gravity feed
• Cup capacity: 600 ml with integrated mixer
• Operating pressure: 2 - 3.5 bar (29 - 50 PSI)
• Air consumption: 170 - 280 L/min (6 - 10 CFM)
• Air inlet: 1/4" NPT
• Body material: Aluminum alloy, chrome plated
• Nozzle and needle: Stainless steel
• Adjustments: Fluid control, fan pattern, air pressure
• Max pattern width: 200 - 250 mm
• Recommended compressor power: 2 HP (minimum)

Recommendations

For optimal performance, use with a compressor delivering at least 2 HP and a clean, dry air supply. Always clean the gun thoroughly after use with appropriate solvents to maintain longevity.
