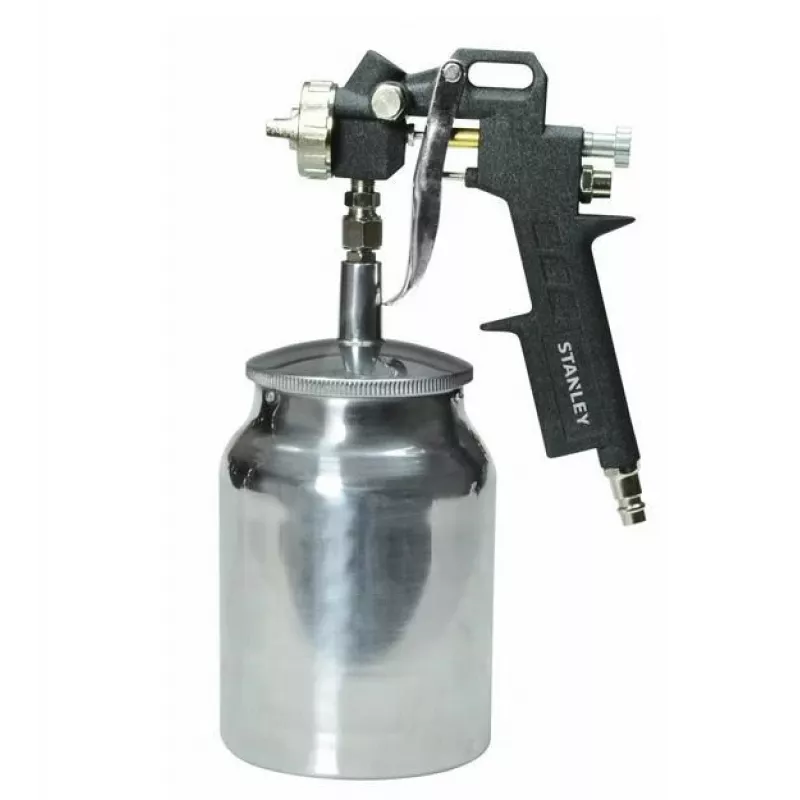

STANLEY 151093XSTN Suction Feed Paint Spray Gun with 1.4 mm Nozzle and 1000 ml Bottom Cup

For professionals who demand consistent atomization and minimal overspray, the STANLEY 151093XSTN suction feed paint spray gun delivers a balanced 1.4 mm stainless steel nozzle paired with a 1000 ml bottom-mounted cup. Unlike gravity-feed guns that require frequent refills during large panels, this model draws from a generous reservoir, letting you work longer between refills while keeping the gun light and maneuverable. The aluminum alloy body keeps weight down without sacrificing durability, and the adjustable fluid, fan pattern, and air pressure controls let you fine-tune the spray for everything from base coats to clear coats.

Highlights

• 1.4 mm stainless steel nozzle and needle for precise, even coverage with lacquers, enamels, primers, and clears
• Suction feed design with 1000 ml bottom cup reduces refill frequency and improves balance during extended use
• Aluminum alloy body offers a lightweight yet rugged construction for daily shop use
• Adjustable fluid control, fan pattern, and air pressure allow tailoring the spray to the coating and surface
• Two-finger trigger and easy-to-clean design enhance comfort and maintenance
• Operates at 3–5 bar (43.5–72.5 PSI) with air consumption of 160–250 L/min, compatible with a 2 HP or larger compressor

In daily use

Set the inlet pressure to your coating's recommendation, then adjust the fluid knob to limit material flow and the fan control to shape the pattern from a tight spot to a wide fan. The bottom cup's suction tube ensures a steady feed even when the gun is tilted, making it suitable for automotive panels, furniture, and general woodworking. After use, flush the passages with solvent and wipe the stainless steel parts—the simple construction means no hidden cavities to trap dried paint.

Full specifications

• Nozzle diameter: 1.4 mm
• Feed type: Suction feed
• Cup capacity: 1000 ml
• Operating pressure: 3–5 bar (43.5–72.5 PSI)
• Air consumption: 160–250 L/min
• Air inlet size: 1/4" NPT
• Nozzle material: Stainless steel
• Needle material: Stainless steel
• Body material: Aluminum alloy
• Fluid control: Adjustable
• Fan pattern control: Adjustable
• Air pressure control: Adjustable
• Recommended compressor power: 2 HP minimum
• Application: General purpose painting, automotive, woodworking
• Suitable coatings: Lacquers, enamels, primers, base coats, clear coats
• Trigger type: Two-finger
• Included accessories: 1000 ml bottom cup

Final note

With its durable stainless steel fluid path and large bottom cup, the STANLEY 151093XSTN is a dependable choice for painters who need a versatile, easy-to-maintain spray gun for medium to large projects.
