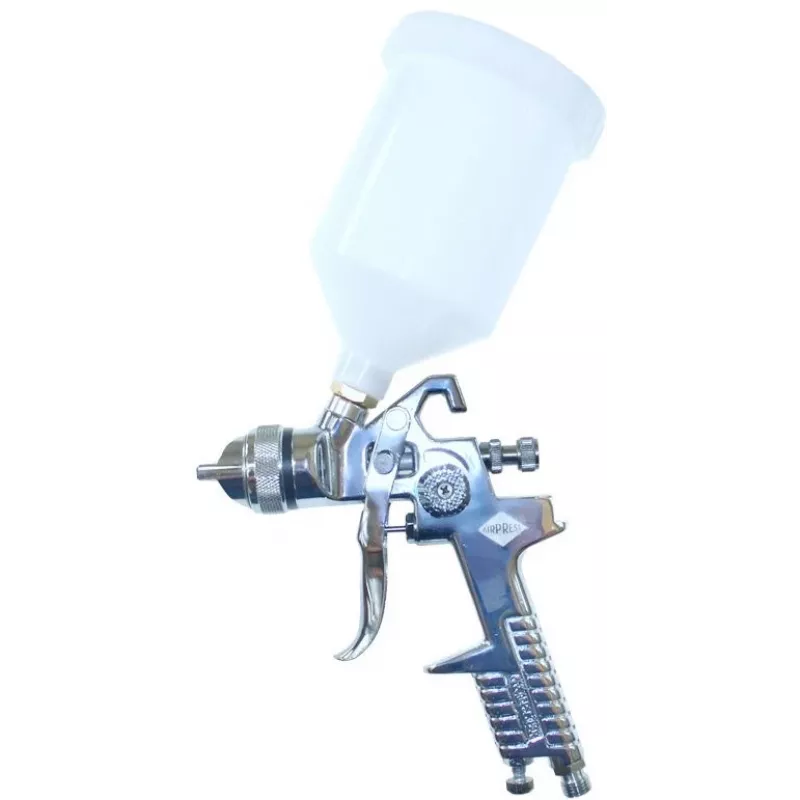

Airpress HVLP Gravity Feed Spray Gun 1.4mm Nozzle 600ml Cup

Uneven paint application and excessive overspray waste time and material. The Airpress HVLP Gravity Feed Spray Gun with a 1.4mm nozzle delivers a fine, consistent finish by atomizing paint efficiently at low pressure, making it ideal for automotive, woodworking, and DIY projects.

Who is it for

This spray gun suits professionals and hobbyists who demand a smooth, controlled finish on surfaces like car panels, furniture, or cabinets. It works best with a compressor delivering at least 2 HP and 280 L/min air flow, and the gravity feed design ensures reliable paint flow even when tilting the gun.

Main features

• HVLP technology reduces overspray and paint waste while improving transfer efficiency.
• 1.4mm stainless steel nozzle and needle provide precise atomization for fine finishes.
• 600ml plastic gravity feed cup allows extended spraying without frequent refills.
• Aluminum alloy gun body is lightweight yet durable for long working sessions.
• Adjustable air flow, fluid flow, and fan pattern give full control over the spray shape and volume.
• Standard 1/4" BSP air inlet fits most compressor hoses.

Specifications

• Spray technology: HVLP (High Volume Low Pressure)
• Nozzle diameter: 1.4 mm
• Cup capacity: 600 ml
• Feed type: Gravity
• Recommended operating pressure: 2.0 - 3.5 bar (29 - 50 PSI)
• Air consumption: 280 L/min
• Air inlet connection: 1/4" BSP
• Nozzle and needle material: Stainless steel
• Gun body material: Aluminum alloy
• Cup material: Plastic
• Adjustments: Air flow, fluid flow, fan pattern
• Recommended compressor power: 2 HP / 1.5 kW minimum
• Applications: Automotive, industrial, woodworking, home DIY
• Finish type: Fine finish, even spray

Tips

Before first use, clean the gun thoroughly with a suitable solvent to remove any manufacturing residues. Thin the paint according to the manufacturer's recommendation and test the spray pattern on a piece of cardboard. Adjust the fan width and fluid flow to match the surface size. After each use, disassemble the nozzle and needle for cleaning to prevent clogging and ensure consistent performance.
