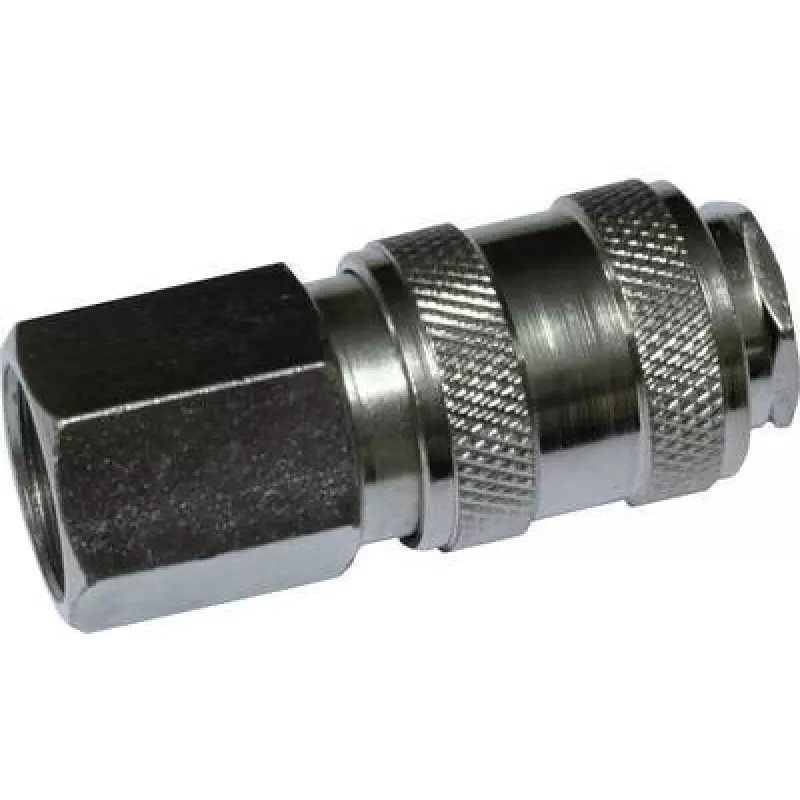

Aerotec Quick Coupling NW 7.2, 1/4 inch BSP Male Thread, Steel, 35 bar 2009559Z

With a robust 35 bar maximum operating pressure and a flow rate of 1100 l/min at 6 bar, this Aerotec quick coupling delivers uncompromising performance in compressed air systems. Engineered to the European NW 7.2 standard, it ensures a secure, leak-free connection for pneumatic tools and air lines.

Overview

The Aerotec 2009559Z is a male-threaded quick coupling designed for single-hand operation, allowing fast and effortless connection and disconnection of air hoses. Its 1/4 inch BSP (G) thread provides compatibility with common compressed air fittings, while the galvanized steel body offers excellent corrosion resistance and durability in demanding workshop or industrial environments.

What stands out

• High flow capacity: 1100 l/min at 6 bar for minimal pressure drop.
• Wide temperature tolerance: operates from -20°C to +100°C.
• NBR seal ensures reliable sealing with compressed air and resistance to oils.
• Compatible with major profiles: Rectus 26, CEJN 320, ARO 210, Orion 445.
• Galvanized steel construction for long service life.

Technical details

• Coupling system: NW 7.2 (European standard)
• Connection type: male thread
• Thread size: 1/4 inch
• Thread standard: BSP (G)
• Material: steel, galvanized
• Max. operating pressure: 35 bar
• Temperature range: -20°C to +100°C
• Seal material: NBR (nitrile butadiene rubber)
• Nominal flow rate at 6 bar: 1100 l/min
• Type: quick coupling
• Operation: single-hand

Our verdict

A dependable quick coupling that combines high flow, robust build, and broad compatibility — ideal for professionals who need fast, secure air connections every day.
