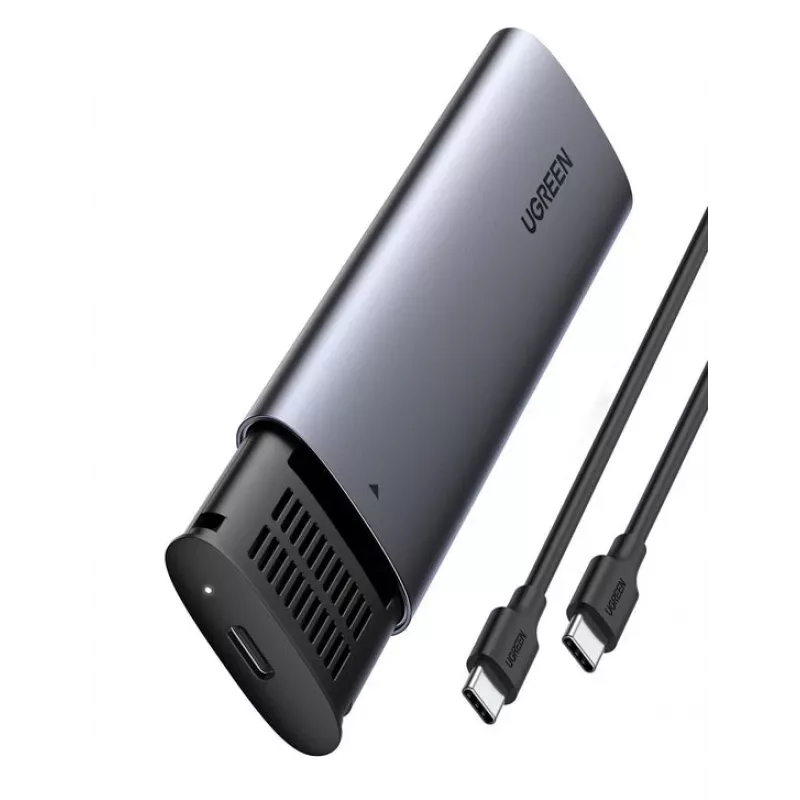

SSD enclosure UGREEN 10902 Grey for one M.2 PCIe NVMe drive, USB-C 10 Gbit/s, aluminium, 37×12×119 mm

UGREEN M.2 USB-C enclosure converts a single M.2 NVMe PCIe SSD into a portable USB 3.1 (up to 10 Gbit/s) external drive. The compact aluminium housing (122 × 40 × 12 mm) supports M-Key and M+B Key NVMe SSDs in sizes 2230, 2242, 2260 and 2280 up to 2 TB. Tool-free installation, plug-and-play operation and no extra power or drivers required make it suitable for cloning, backups and reusing an internal M.2 drive as external storage.

Advantages

The enclosure supports USB 3.1 Gen 2 speeds with UASP, improving read and write performance compared with conventional USB connections. Aluminium construction enhances heat dissipation while built-in protections guard against short-circuit and over-current conditions. It supports S.M.A.R.T. and TRIM for better SSD health and performance and works with a USB Type-C host for wide compatibility.

Suitable for

• Cloning system drives
• Backing up important data
• Reusing an old NVMe M.2 SSD as external storage
• Transferring large files between computers

Key specifications

• Supported drive: 1 × M.2 NVMe PCIe SSD (M-Key or M+B Key)
• Supported sizes: 2230, 2242, 2260, 2280
• Maximum capacity supported (per manufacturer): up to 2 TB
• Interface to host: USB 3.1 Gen 2 / USB 3.2 Gen 2 (up to 10 Gbit/s)
• USB connector: USB Type-C
• Material: Aluminium
• Colour: Grey
• Supported features: UASP, S.M.A.R.T., TRIM

How to use

Open the tool-free aluminium case, insert an M-Key or M+B Key NVMe PCIe M.2 SSD of compatible length, secure it according to the built-in standoff, then close the enclosure. Connect the enclosure to a computer using the supplied USB Type-C cable; the drive should be recognised automatically without driver installation. Use disk cloning, backup or file-transfer software as required by your task.

Recommendations

For best performance, connect to a UASP-capable USB 3.1 Gen 2 host port and enable TRIM support in your operating system when possible. Avoid using SATA-based M.2 (NGFF) or mSATA drives, as they are not supported by this NVMe-only enclosure.
