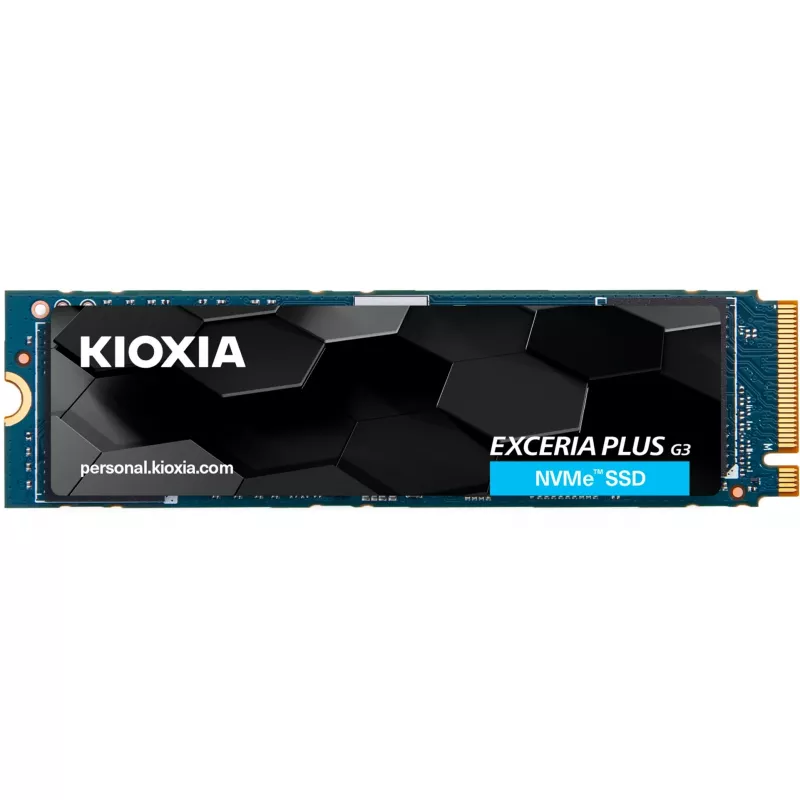

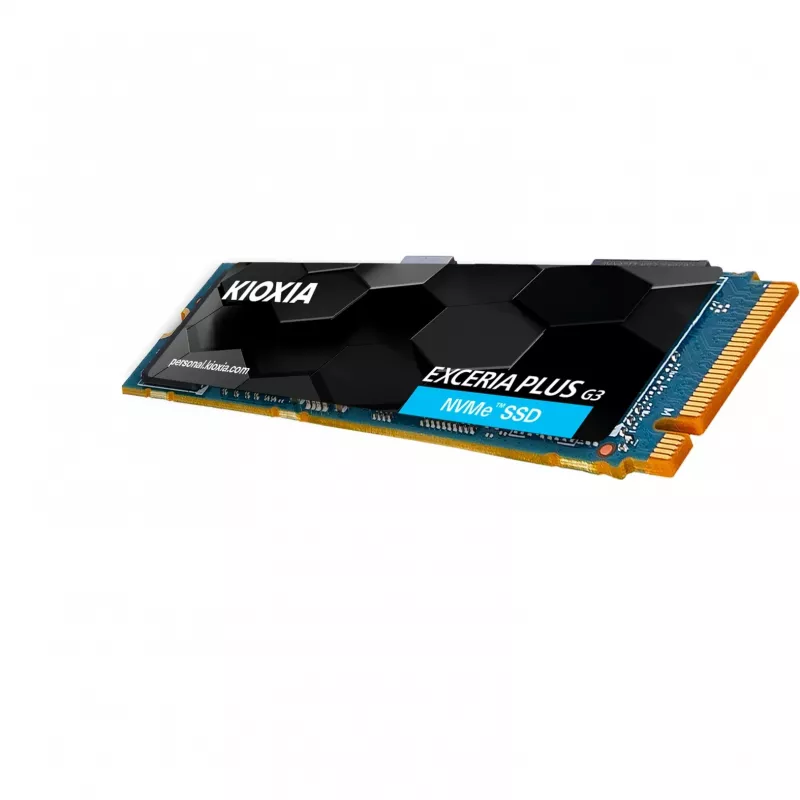

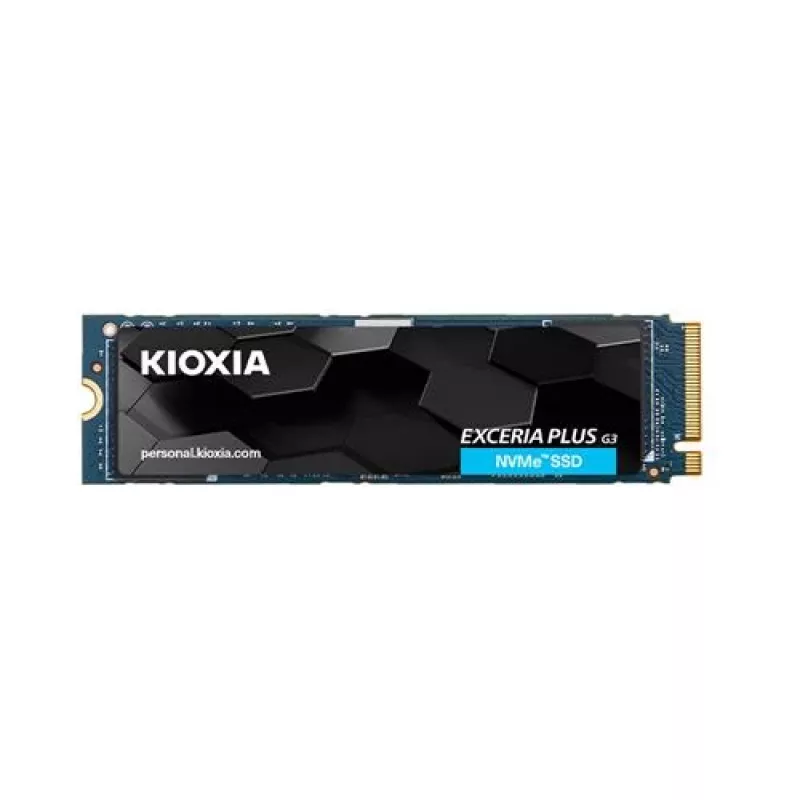

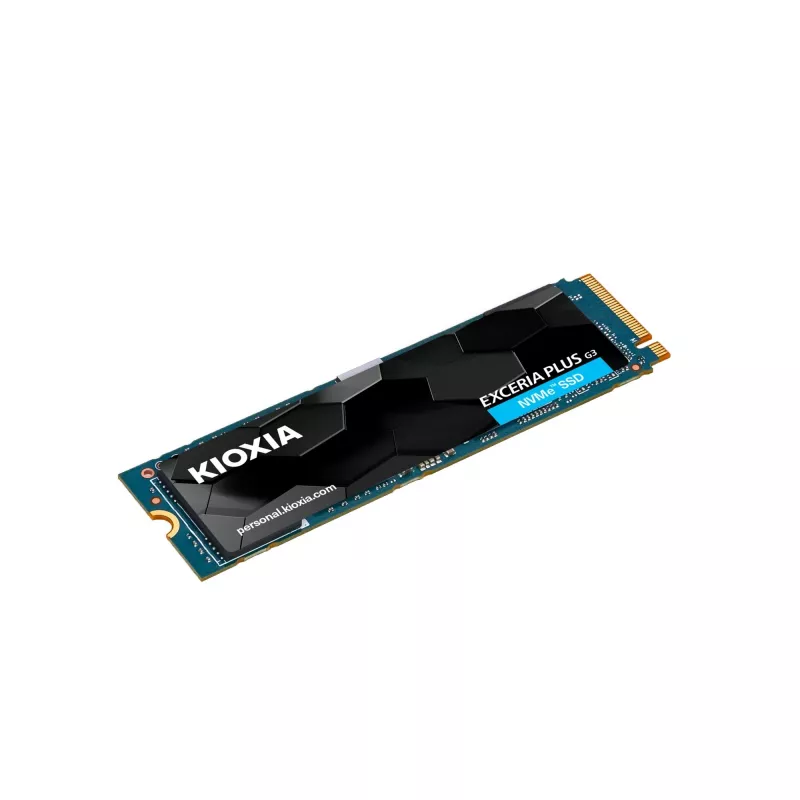

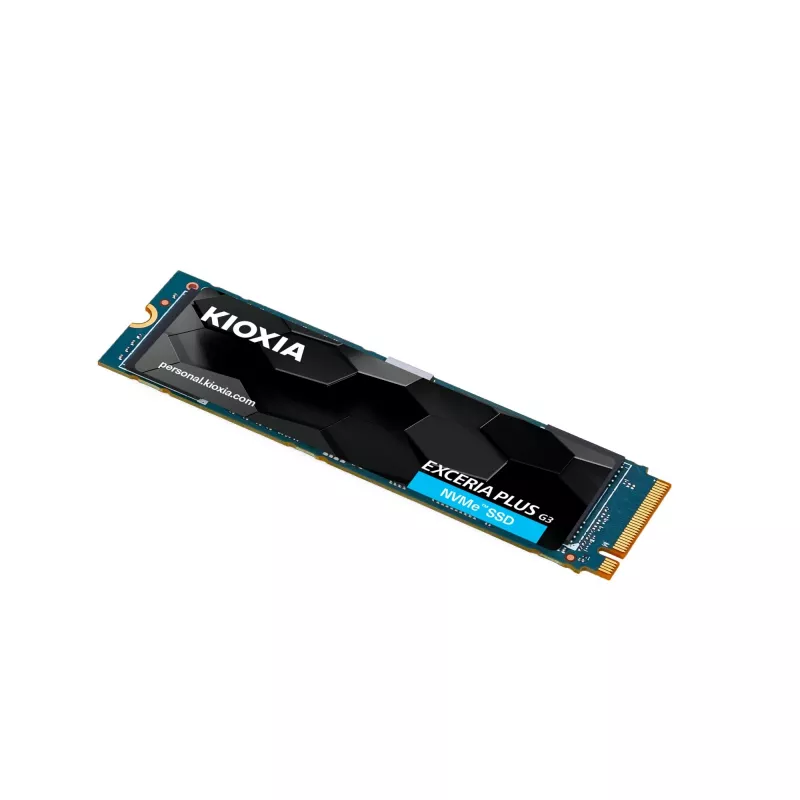

SSD drive Kioxia 1TB M.2 PCI Express 4.0 NVMe LSD10Z001TG8

Kioxia LSD10Z001TG8 is a 1TB M.2 NVMe SSD that supports PCIe® 4.0 and NVMe™ 1.4, delivering sequential read speeds up to 5,000 MB/s and sequential write speeds up to 3,900 MB/s. The single‑sided M.2 2280 form factor saves space and installs directly on the motherboard for a compact system upgrade. The drive uses vertically stacked BiCS FLASH™ 3D flash memory and is intended for users who need high throughput and low latency for tasks such as gaming and content creation.

Advantages

The SSD offers high sequential transfer rates (5,000 MB/s read, 3,900 MB/s write) enabled by PCIe® 4.0, a compact single‑sided M.2 2280 design for broader device compatibility, and 3D BiCS FLASH™ for reliable NAND storage. It connects directly to the motherboard to eliminate cable clutter and supports SSD management via Kioxia SSD Utility for health monitoring and maintenance.

Suitable for

• Gaming systems requiring fast load times and responsive storage
• Video editing and content creation workflows with large sequential file transfers
• High‑performance workstations and PCs needing fast OS and application drives

Key specifications

• Brand: Kioxia
• Model: LSD10Z001TG8
• Capacity: 1000 GB (1 TB)
• Form factor: M.2 2280, single‑sided
• Interface: PCI Express 4.0, NVMe 1.4
• Sequential read speed: up to 5,000 MB/s
• Sequential write speed: up to 3,900 MB/s
• Weight: 0.007 kg
• EAN: 4582563857872

How to use

Power down your PC and install the SSD into an available M.2 2280 PCIe slot on the motherboard, securing it with the mounting screw. After booting, initialize and format the drive in your operating system if required, then install your OS or migrate data from an existing drive. Ensure your system firmware and motherboard BIOS support PCIe 4.0 to achieve maximum performance.

Recommendations

Install and regularly update the Kioxia SSD Utility to monitor drive health and Percentage Life Left, perform firmware updates and maintenance tasks to maintain optimal performance.
