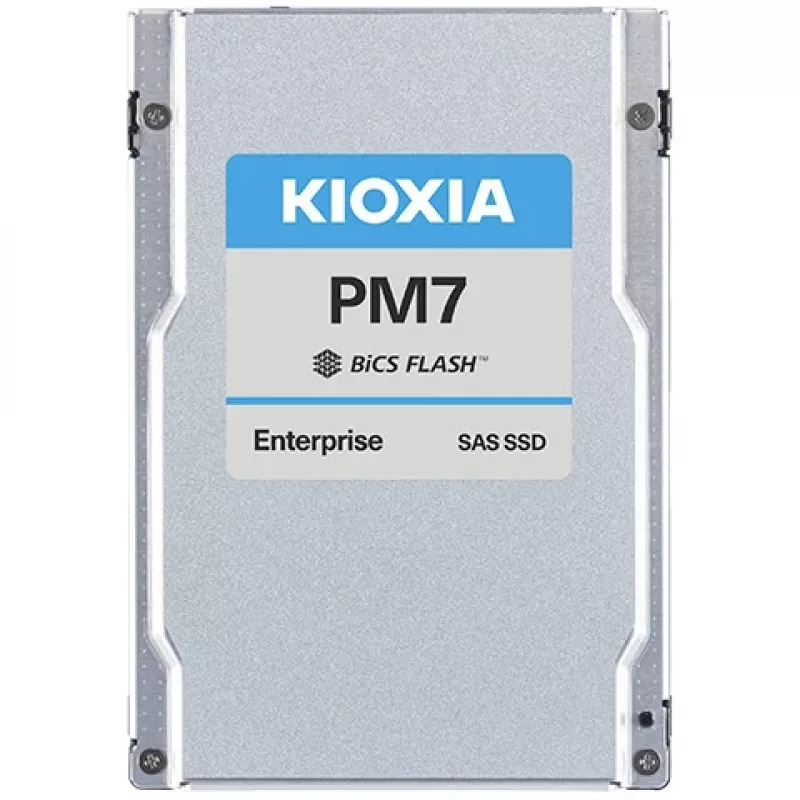

SSD disk Kioxia 1.6 TB 2.5 inch SAS BiCS FLASH TLC PM7-V

Enterprise SAS SSDSAS SSD 2.5-inch — Kioxia PM7-V Series 24G SAS enterprise SSD with 1.6 TB capacity in a 2.5" form factor. Optimized for mixed-use applications such as relational databases, streaming media, data warehousing and web services, this SSD uses KIOXIA 112-layer BiCS FLASH™ 3D TLC memory and delivers balanced performance, reliability, capacity and endurance for mixed-use and read-intensive environments. The PM7-V offers enterprise-class endurance of 3 DWPD and a 22.5 Gbit/s interface, with rated sequential read speeds up to 4200 MB/s and write speeds up to 3400 MB/s.

Advantages

The Kioxia PM7-V combines high sequential performance and enterprise endurance in a compact 2.5" SAS drive. Using 112-layer BiCS FLASH™ 3D TLC provides improved density and consistent performance. The 24G SAS interface and 22.5 Gbit/s transfer capability support fast data throughput for server and storage environments, while the 3 DWPD rating ensures suitability for mixed-use workloads.

Suitable for

• Relational database servers
• Streaming media and content delivery
• Data warehousing and analytics
• Web services and virtualized environments
• Mixed-use and read-intensive enterprise storage

Key specifications

• Manufacturer: Kioxia
• Model series: PM7-V
• Form factor: 2.5"
• Capacity: 1.6 TB (1600 GB)
• Flash type: 112-layer BiCS FLASH™ 3D TLC
• Interface: 24G SAS (22.5 Gbit/s)
• Sequential read speed: up to 4200 MB/s
• Sequential write speed: up to 3400 MB/s
• Endurance: 3 DWPD
• Weight: 0.15 kg
• MPN: KPM7VVUG1T60
• EAN: 8592978517502

How to use

Install the 2.5" SAS SSD into a compatible server or storage enclosure that supports 24G SAS / 22.5 Gbit/s links. Ensure the system firmware and SAS controller drivers are up to date, then mount the drive in the operating system and format or provision it according to your storage architecture (RAID, logical volumes, or direct-attached use). Monitor drive health and performance using supported management tools and SMART/SAS reporting.

Recommendations

Use the Kioxia PM7-V in enterprise environments where a balance of performance, capacity and endurance is required. For mixed-use database and virtualization workloads, combine with appropriate RAID configurations and regular monitoring; for read-intensive deployments, the drive delivers sustained throughput when paired with compatible 24G SAS infrastructure.
