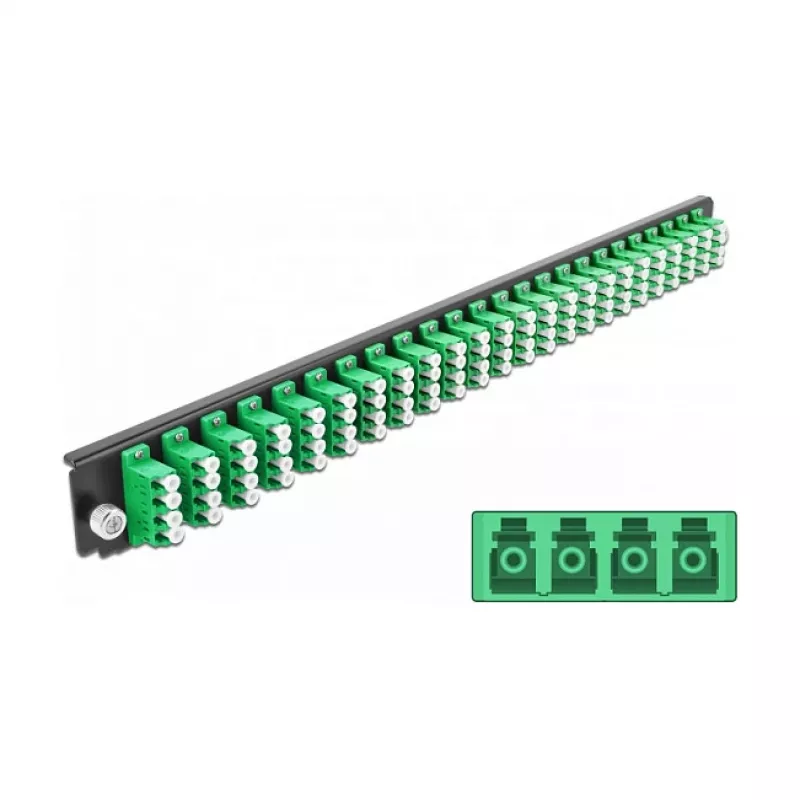

Splice Box Front Panel DeLOCK 19 inch 43370 24 port LC Quad green

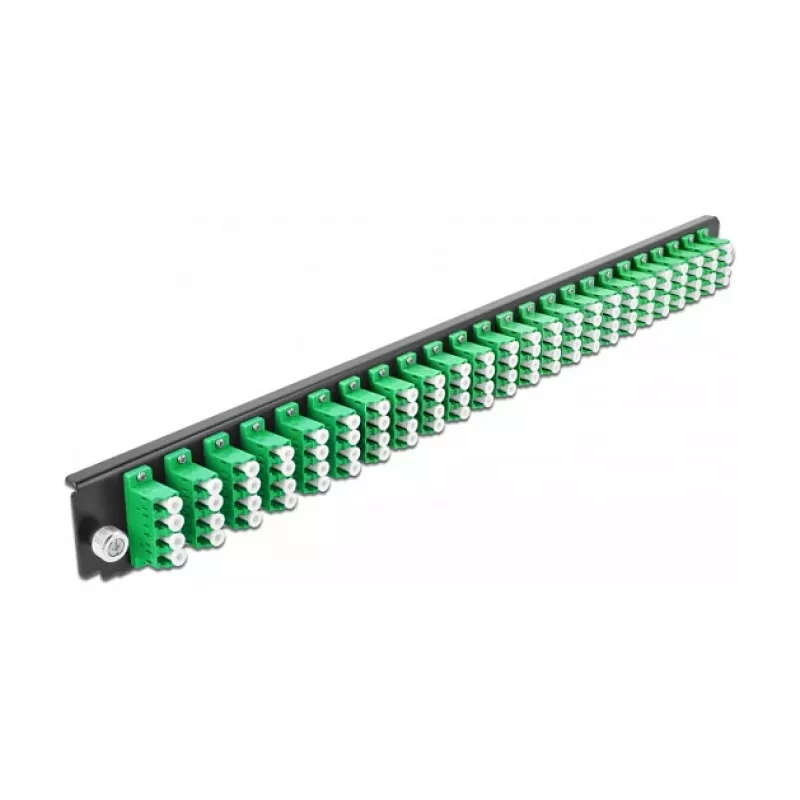

The DeLOCK 19" splice box front panel provides 24 LC Quad ports for fiber optic connections and is intended for mounting in a compatible 19" DeLOCK splice box. It occupies 1U rack height and offers a compact, color-coded solution for structured fiber termination and management.

Advantages

The front panel supports up to 24 LC Quad ports, allowing high-density fiber termination in a single 1U unit. Its standardized 19" form factor and dimensions (44 mm height, 482.6 mm width, 44 mm depth) ensure compatibility with common rack systems. The green colour enables visual identification and organization within patching environments.

Suitable for

• Data centre fiber distribution and termination
• Telecommunications cabinets requiring organized fiber management
• Network rooms and rack-mounted fiber splicing enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 43370
• EAN: 4043619433704
• Port type and count: 24 × LC Quad
• Rack unit: 1U
• Colour: Green
• Dimensions: 482.6 mm × 44 mm × 44 mm (W × H × D)

How to use

Mount the front panel into a compatible 19" DeLOCK splice box using the appropriate fasteners, aligning it with the enclosure’s rack mounting points. Terminate fiber cables to the LC Quad ports following standard fiber handling and termination procedures, then secure cables and organize them inside the splice box to prevent strain on connectors.

Recommendations

Follow industry best practices for fiber optic installation: use proper cleaning tools for connectors, avoid sharp bends, maintain bend radius limits, and label ports for easier maintenance. Verify compatibility with your DeLOCK 19" splice box model before installation.
