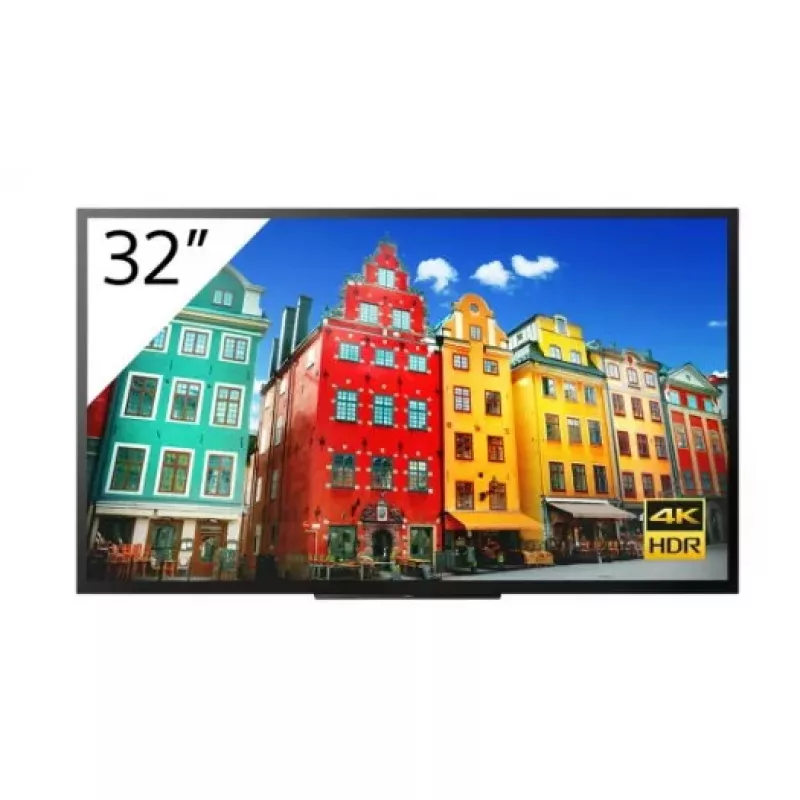

Sony FW-32BZ30J1 Signage Display Digital signage flat panel 81.3 cm (32 inch) LCD Wi-Fi 300 cd/m² 4K Ultra HD Black Built-in processor

The 32" Sony FW-32BZ30J1 is a 4K Ultra HD (3840 x 2160) 32-inch LCD signage display designed for commercial use. It combines Sony's 4K HDR Processor X1 with TRILUMINOS PRO colour processing and a VA panel to deliver clear, high-resolution images with natural colour reproduction and smooth motion for digital signage, conference rooms and corporate environments.

Advantages

The display offers native 4K resolution with HDR processing, enhanced colour rendering via TRILUMINOS PRO and smooth on-screen motion. It includes a powerful built-in SoC running Android OS for fast booting and fluid app performance, simple screen mirroring with Google Cast and AirPlay 2, enhanced wireless connectivity and developer-friendly integration options including IP control compatible with Crestron, Extron and AMX. The unit is designed for neat cable management and includes an adapter holder. A 3-year warranty with local repair or advanced exchange is provided, with an option to extend support by two additional years.

Suitable for

• Digital signage and retail displays
• Corporate meeting rooms and conference screens
• Educational environments and lecture halls
• Reception areas and information kiosks

Key specifications

• Display diagonal: 32" (80.1 cm)
• Resolution: 3840 x 2160 (4K Ultra HD)
• Panel type: VA, LCD
• Processor: 4K HDR Processor X1 (SoC with Android OS)
• Refresh rate: 50 Hz
• Contrast ratio (typical): 3000:1; dynamic contrast listed 260,000:1 in source
• Response time: 10 ms
• Brightness: 300 cd/m² (manufacturer summary)
• Dimensions (W×H×D): 726 × 430 × 76 mm
• Weight: 7.5 kg
• VESA mounting: No
• Built-in speakers: No
• Energy class (SDR/HDR): G / G
• Energy consumption (per 1000 h): 40 kWh (SDR), 54 kWh (HDR)
• Colour: Black

How to use

Place the FW-32BZ30J1 on a stable surface or mount per your site plan (note: product does not include VESA mounting). Connect the supplied AC power adapter and route cables through the integrated cable-management channels; use the adapter holder at the rear to stow the power adapter neatly. Power on the display to allow the Android OS to boot; follow on-screen One Step Setting or Pro Mode to optimise the display for signage or conference use. For content playback, install supported apps from the built-in platform or use Google Cast / AirPlay 2 for screen mirroring from compatible devices. For networked installations, configure wired or wireless connectivity and, if required, enable IP control for integration with Crestron, Extron or AMX systems.

Recommendations

For reliable operation in commercial installations, operate the display within recommended ambient temperature and humidity ranges, perform initial configuration using Pro Mode for the target environment, and register the product to access the 3-year warranty and optional 2-year extension. For large deployments, use IP control and partner systems for centralised management and schedule regular firmware updates when provided by Sony.
