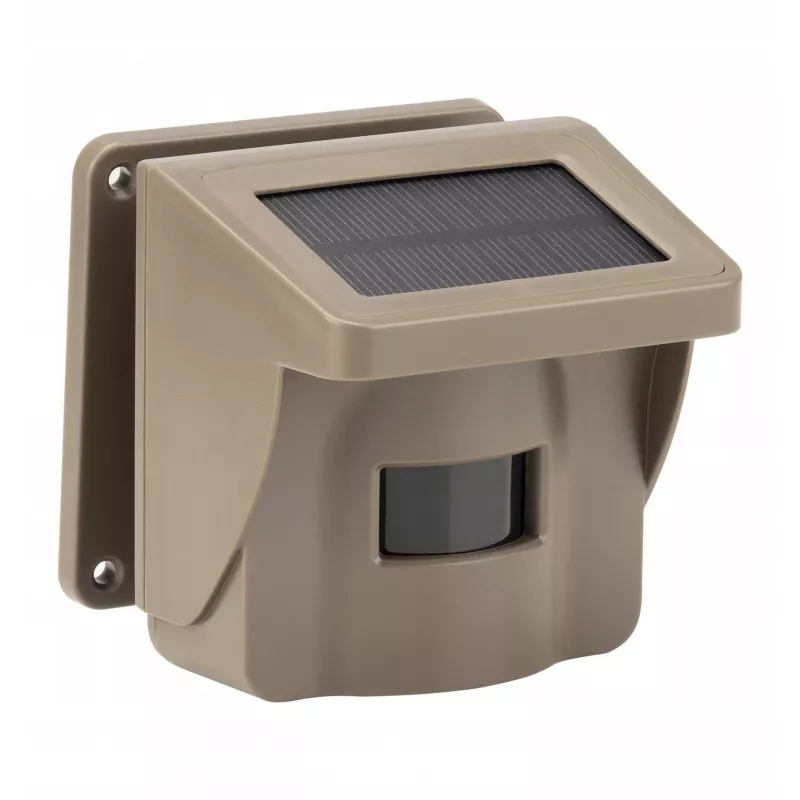

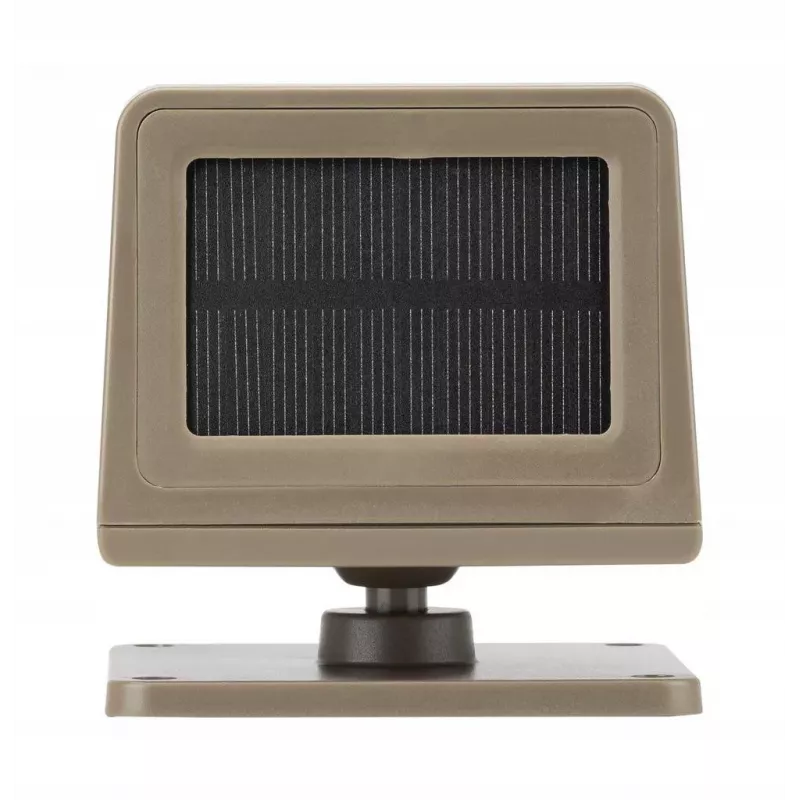

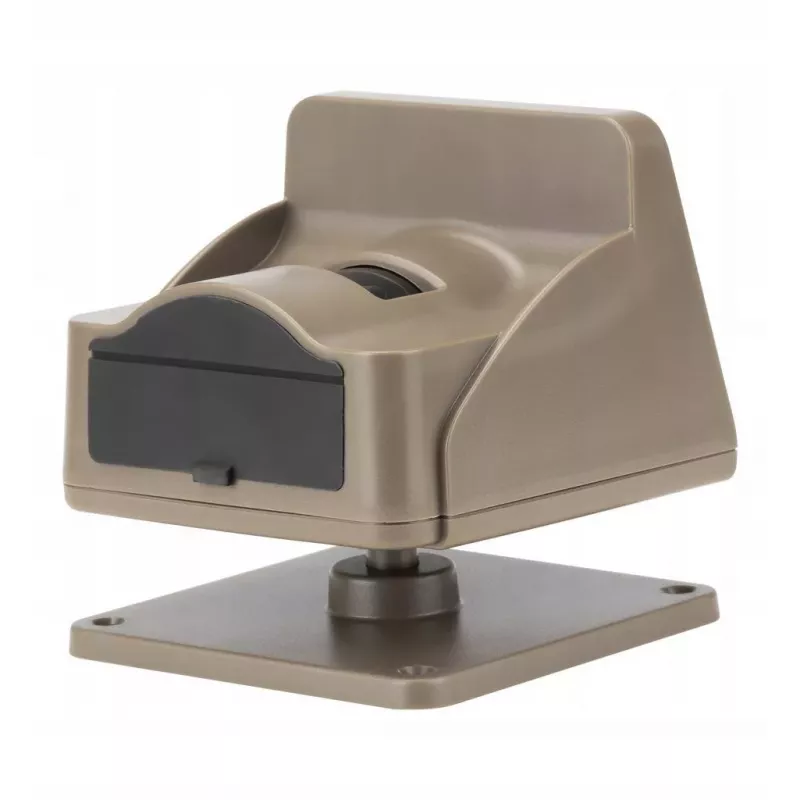

Solar Panel PIR Sensor for Redleaf RD200 Trail Camera System

The Solar Panel PIR Sensor for Redleaf RD200 is a high-performance passive infrared motion detector designed to extend the functionality of your Redleaf RD200 trail camera system. Powered by an integrated solar panel and rechargeable battery, this sensor provides reliable, maintenance-free operation in remote outdoor locations. With a detection range of up to 20 meters and a 120° wide angle, it ensures comprehensive coverage for wildlife monitoring, security, or property surveillance.

Advantages

Eliminates the need for frequent battery changes thanks to its solar-powered design with a built-in 2500 mAh lithium-ion battery. The IP66 weather-resistant housing withstands rain, dust, and extreme temperatures from -20°C to 60°C, making it ideal for year-round outdoor use. Easy installation with strap or screw mount options allows flexible placement on trees, posts, or walls.

Suitable for

• Wildlife observation and trail monitoring
• Hunting and game surveillance
• Property and perimeter security
• Remote area motion detection

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Power Source: Integrated Solar Panel + Rechargeable Battery
• Battery: Lithium-ion, 2500 mAh
• Solar Panel Power: 0.4 W
• Detection Angle: 120°
• Detection Distance: Up to 20 meters
• Wireless Frequency: 433 MHz
• Wireless Range: Up to 100 meters (open field)
• Compatibility: Redleaf RD200 Trail Camera System
• Weather Resistance: IP66
• Operating Temperature: -20°C to 60°C

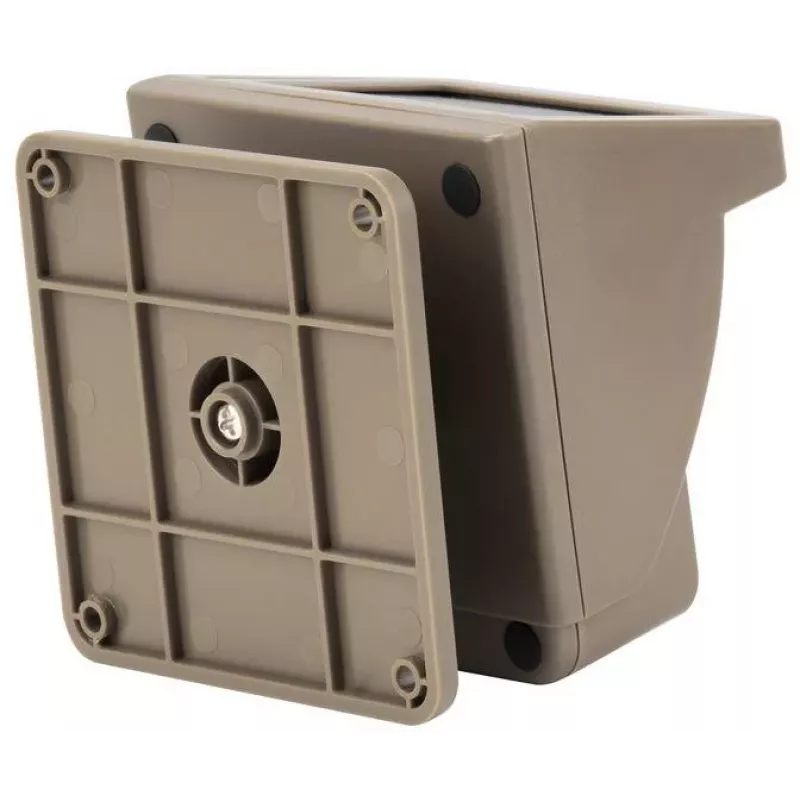

• Mounting: Strap or screw mount
• Material: Durable ABS plastic
• Charging Port: DC 5V (external charging)
• Standby Current: < 0.1 mA
• Response Time: < 0.5 seconds

Recommendations

For optimal performance, place the sensor in an area with direct sunlight to ensure the solar panel charges the battery effectively. Pair with the Redleaf RD200 trail camera for seamless wireless integration up to 100 meters away. Ideal for long-term outdoor use without manual battery replacement.
