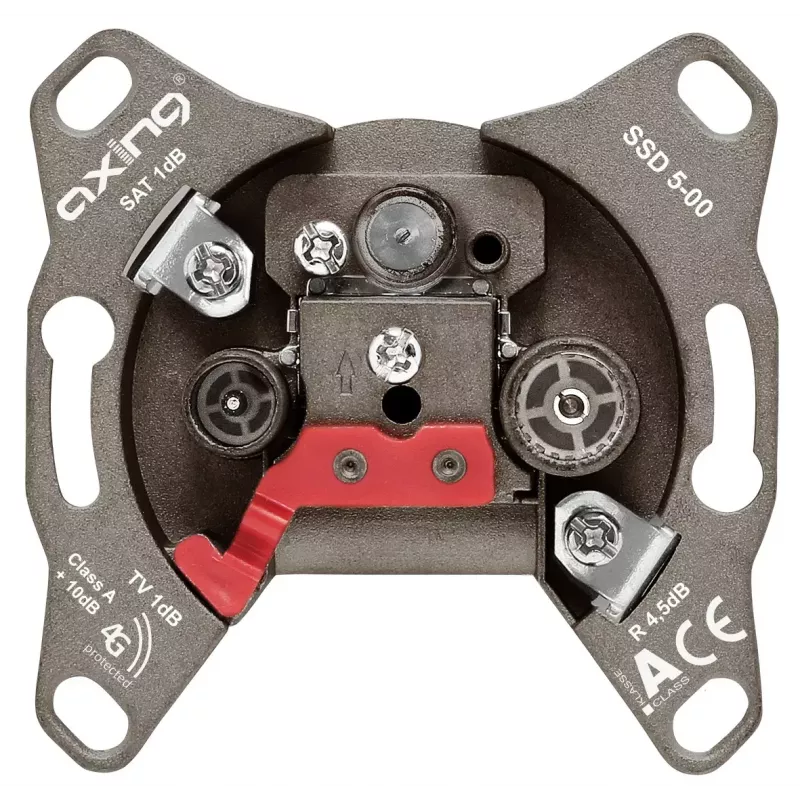

Socket outlet SAT + TV + Radio Axing SSD 5-00

The Axing SSD 5-00 socket outlet provides combined connections for SAT, TV and Radio in a single compact module. Designed for installation in standard flush-mounted boxes, this brown outlet measures 68 mm x 39 mm x 68 mm and is intended for use in residential and light commercial audio‑visual installations. The unit groups satellite (F-type), terrestrial TV and FM radio outputs to reduce wall clutter while keeping signal paths separated for stable reception.

Advantages

The Axing SSD 5-00 combines three signal outputs in one housing to save installation space and simplify cabling. Its compact dimensions and neutral brown finish support discreet integration with interior finishes. The outlet is constructed from durable materials to withstand typical residential use and maintain reliable signal contact. The design reduces the need for multiple faceplates and supports neat, organised wiring for SAT, terrestrial TV and radio services.

Suitable for

• Home entertainment walls and media cabinets
• Apartment and house installations where SAT, TV and radio services are required
• Renovations and new builds needing a compact, combined signal outlet
• Small commercial locations with basic audiovisual distribution needs

Key specifications

• Functions: combined SAT, TV and Radio outputs
• Dimensions: 68 mm x 39 mm x 68 mm (L x W x H)
• Colour: brown
• Mounting: flush-mounted installation into standard wall box
• Signal connectors: dedicated connectors for satellite, terrestrial TV and FM radio
• Construction: robust housing for residential use

How to use

Install the Axing SSD 5-00 into a compatible flush-mounted wall box following local electrical and RF installation codes. Connect the incoming coaxial feed for satellite to the designated SAT connector and route terrestrial TV and FM radio RF feeds to their respective outputs. Ensure all connectors are tightened to provide secure contact and minimise signal loss. After cabling, attach the decorative frame or cover plate and test each output with the appropriate receiver or signal meter to verify satisfactory reception levels.

Recommendations

Use quality coaxial cables and proper compression or screw-type connectors to preserve signal integrity. Separate satellite and terrestrial feeds until the outlet to avoid cross-interference. If signal levels are weak, check cable condition, connections and consider an inline amplifier or professional signal measurement.
