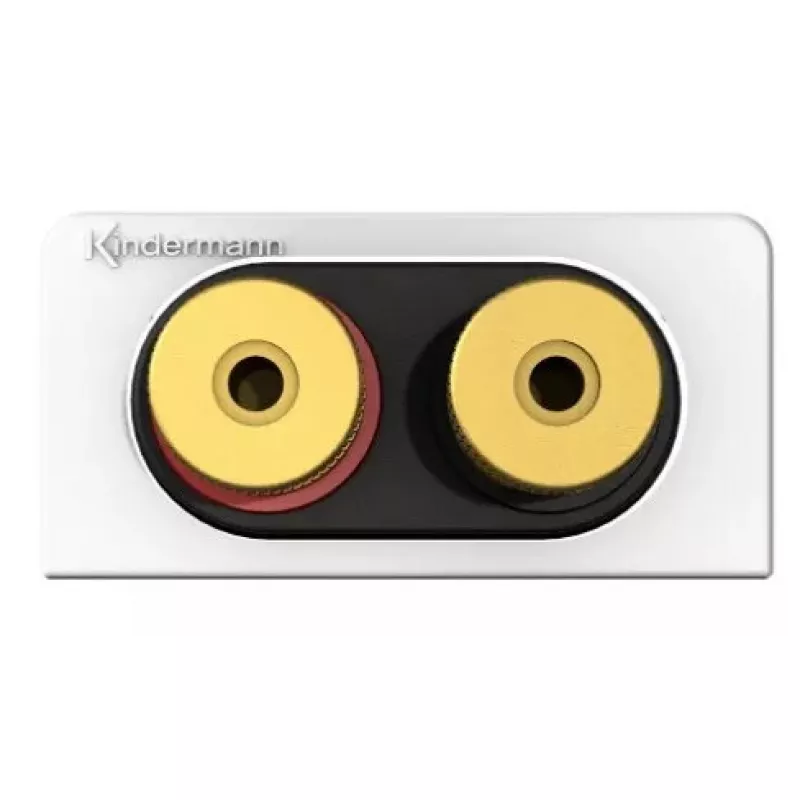

Socket outlet Kindermann 7456000414 2 x RCA Black Gold White

Wall plate with two RCA (phono) sockets in a compact half-size module. The plate combines black, gold and white finishes and is suitable for flush mounting; mounting can be done without tools using the included adapter plates (sizes 50 x 25 mm, 54 x 27 mm, 55 x 28 mm). Constructed from metal and plastic, the unit requires a minimum installation depth of 3.7 cm and accepts one module.

Advantages

The Kindermann socket outlet 7456000414 provides two RCA connections for audio/video signals in a space-saving half-size wall plate. Its mixed metal and plastic construction offers durability while the gold-plated contacts improve signal transfer. Multiple adapter plate sizes are included to simplify installation in different cutouts and the tool-free mounting option speeds up fitting.

Suitable for

Key specifications

How to use

Prepare the wall opening for a half-size module and ensure a recess depth of at least 3.7 cm. Select the adapter plate that matches the existing cutout and place it behind the wall plate. Connect the RCA cables to the rear terminals of the sockets, observing left/right channel polarity. Insert the assembly into the wall box and secure it using the tool-free mounting method provided by the adapter plate. Attach the visible wall plate to complete the installation.

Recommendations

For reliable audio performance, use high-quality RCA cables and verify correct polarity when connecting left and right channels. If wall depth is limited, confirm the 3.7 cm minimum before installation and choose the appropriate adapter plate to ensure a secure fit.
