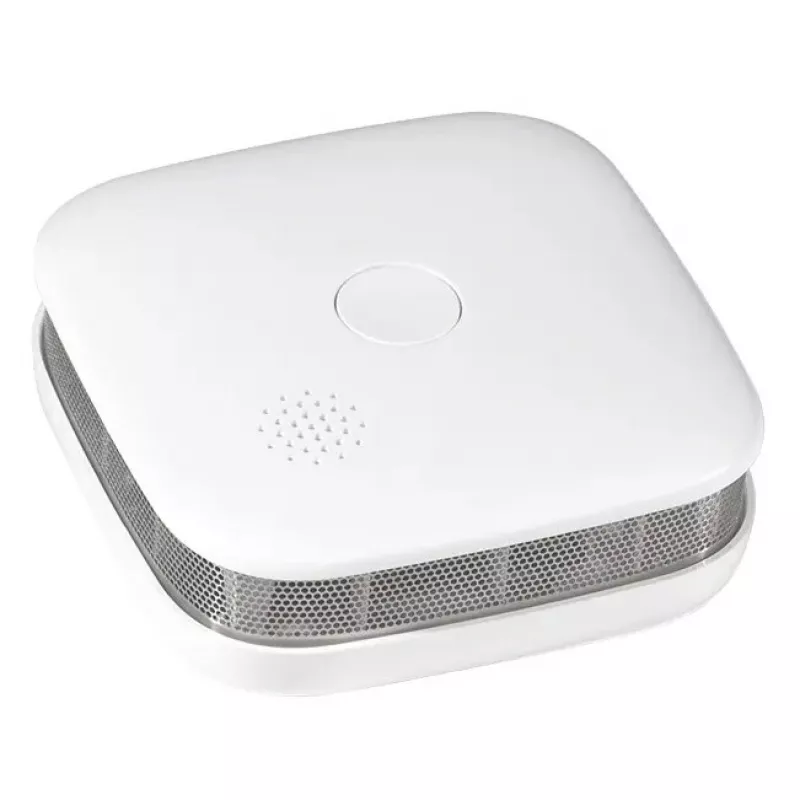

Smoke detector LOGILINK SC0018 — photoelectrical reflection, wireless, battery-powered, 10-year battery, 76×28.5 mm

LOGILINK SC0018 is a photoelectric smoke detector with a built-in 10-year lithium battery and compact dimensions (76 × 76 × 28.5 mm). The device is intended for ceiling or wall installation in homes, apartments and small offices and detects slow smouldering fires using a photoelectric sensor. Wireless, battery-powered operation allows simple placement without mains wiring.

Advantages

The photoelectric sensor is optimised to detect slow, smouldering fires. The unit emits an 85 dB alarm and includes a test/silence button for temporary muting. A low-battery end-of-life signal notifies when the device needs replacement. The detector complies with EN 14604 and features straightforward ceiling mounting for quick installation.

Suitable for

• Homes and apartments
• Small offices and workspaces
• Ceiling or wall installation where mains power is unavailable

Key specifications

• Sensor type: photoelectric (optical)
• Alarm sound level: 85 dB
• Battery: built-in lithium, designed for 10 years of operation
• Alarm sensitivity: 0.100–0.160 dB/m
• Mounting: ceiling or wall
• Dimensions: 76 × 76 × 28.5 mm
• Compliance: EN 14604

How to use

Mount the detector on a ceiling or wall using the supplied mounting kit, following local installation height recommendations. Press the test/silence button to check operation or temporarily mute the alarm; sleep mode mutes the unit for 9 minutes and then it returns to normal battery operation. Do not paint the device or block the sensor openings. Replace the detector when the end-of-life signal indicates battery depletion.

Recommendations

Install one detector in each sleeping area and on every storey of the dwelling. Test the detector regularly using the test button and clean dust from the housing occasionally to maintain reliable detection.
