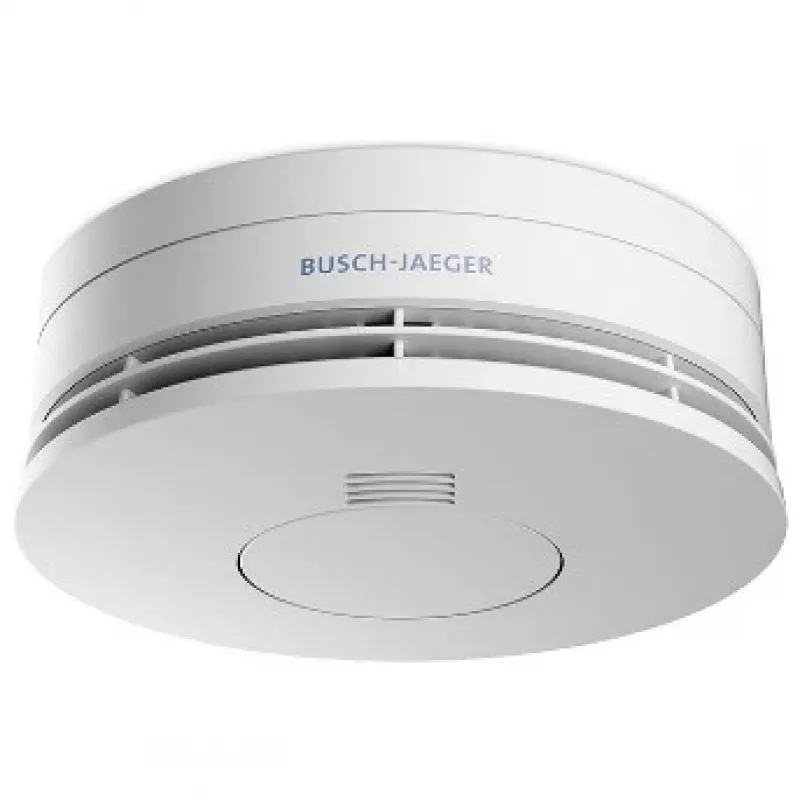

Smoke detector Busch-Jaeger 2CKA006800A2717 optical wired, battery 3 V, Ø 120 mm, H 47.5 mm

Optical smoke detector Busch-Jaeger 2CKA006800A2717 is a compact wired device with a 3 V lithium battery backup, designed to detect visible smoke particles in indoor environments. The detector has a circular housing with a diameter of 120 mm and a height of 47.5 mm, and meets CE and RoHS conformity requirements. It provides continuous optical sensing for early warning of smouldering or flaming fires and is suitable for integration into wired alarm circuits with battery power for fallback operation.

Advantages

The detector combines optical sensing technology with a wired installation and an internal 3 V lithium battery to ensure operation even if the mains supply is interrupted. Its compact 120 mm diameter housing and low profile of 47.5 mm support unobtrusive ceiling or wall mounting. Certified to CE and RoHS standards, the device offers predictable performance and compliance with common regulatory requirements for residential and commercial use.

Suitable for

Key specifications

How to use

Install the detector on a suitable ceiling or high wall location following local building and fire codes, making sure it is connected to the wired alarm circuit for primary power and secured so the internal 3 V lithium battery can provide backup if the mains supply fails. Position the unit away from ventilation outlets, fans, or areas with frequent dust or steam to reduce false alarms. After electrical connection, perform an operational test according to the manufacturer’s instructions to confirm alarm signaling and battery backup functionality.

Recommendations

Test the detector regularly (for example monthly) and replace the lithium battery as recommended by the manufacturer. Clean the outer housing occasionally with a soft, dry cloth and avoid using solvents. Do not paint the detector or obstruct the sensing chamber. When integrating into a wired system, ensure compatibility with the control panel and follow wiring diagrams and safety regulations to maintain reliable operation.
