Smart relay Shelly Qubino Wave 1 Mini wireless 110–240V, 8A AC / 5A DC, 868.4 MHz, indoor, blue

The Shelly Qubino Wave 1 Mini is a compact Z-Wave smart switch with one channel and dry contacts rated up to 8 A. Designed for installation behind switches, inside appliances, or in small switch boxes, this 110–240 V device enables remote and automated control of small electrical loads such as lights, locks, garage door openers and irrigation valves. The Wave 1 Mini uses the latest S800 Z-Wave chip generation and is compatible with all certified Z-Wave gateways.

Advantages

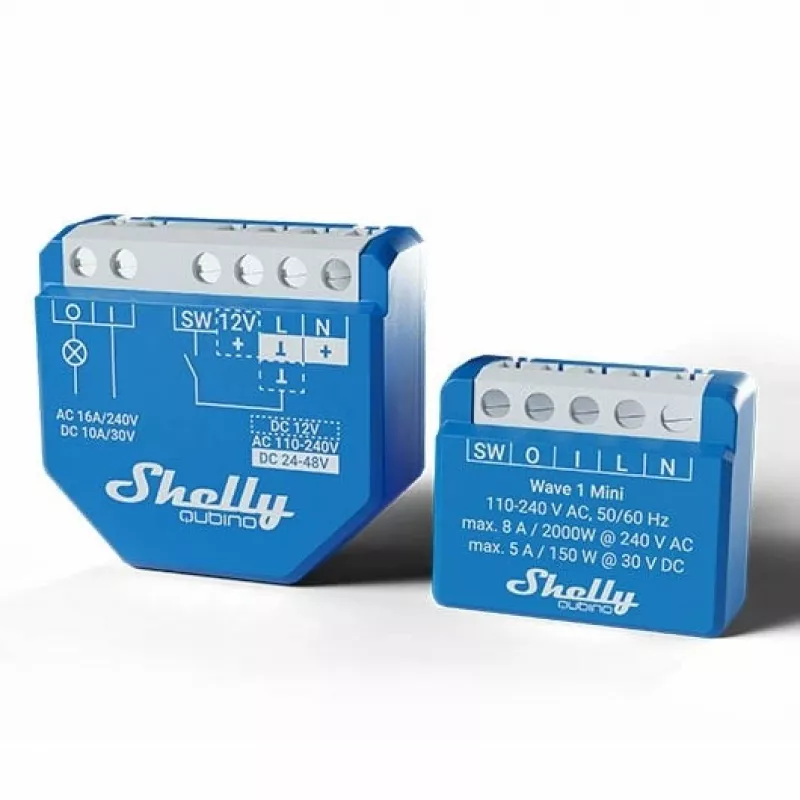

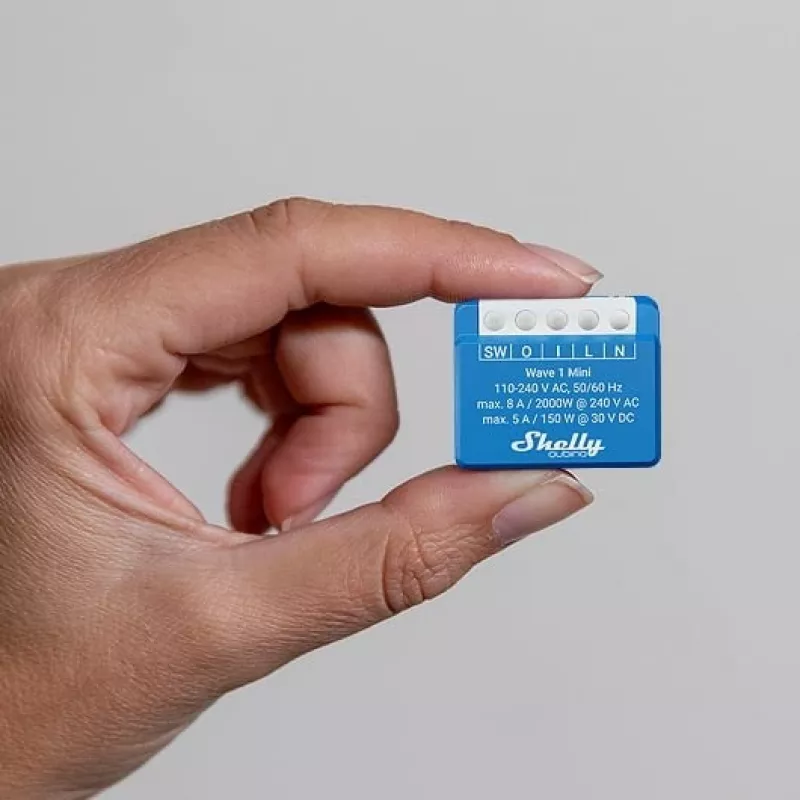

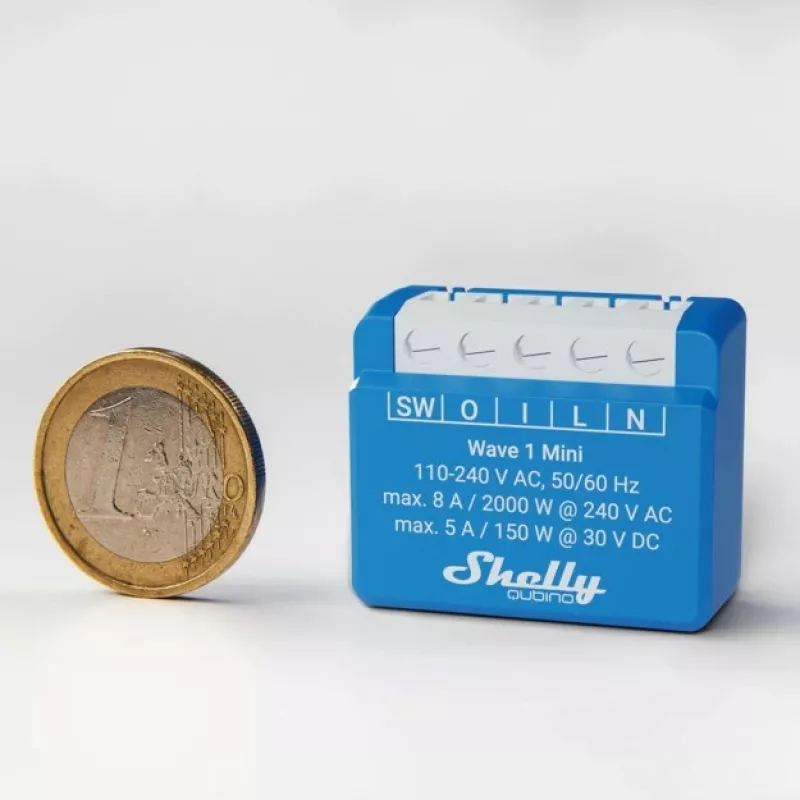

The Wave 1 Mini combines a reduced form factor (about 35% smaller than its predecessor) with full Z-Wave functionality, supporting associations, smart schedules and scenes. It features dry contacts for switching different power-supply loads up to 8 A, wide voltage support including low-voltage outputs, and works with over 4000 Z-Wave certified devices and gateways. The device fits in tight spaces, including Danish wall boxes, and can be installed inside appliances or ceiling roses.

Suitable for

• Turning lamps and lighting circuits into smart lights
• Automating small appliances (kettles, fans, small pumps)
• Remote control of garage door openers
• Irrigation valve control and scheduled watering
• Integrating behind switches in compact or jammed switch boxes

Key specifications

• Brand: Shelly (Qubino)
• Model: Wave 1 Mini (Shelly_W_1_Mini)
• Protocol: Z-Wave (S800 chip)
• Channels: 1 channel with dry contacts
• Max switching current: 8 A
• Supply voltage: 110–240 V AC
• Standby power consumption: 0.3 W
• Compatibility: Works with certified Z-Wave gateways (requires gateway for cloud/remote features)

How to use

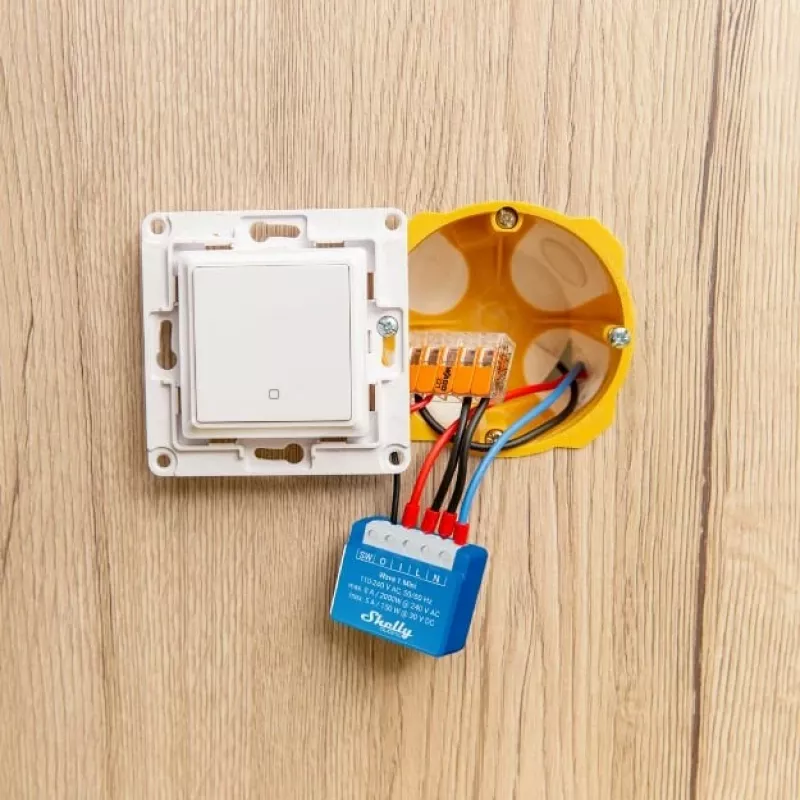

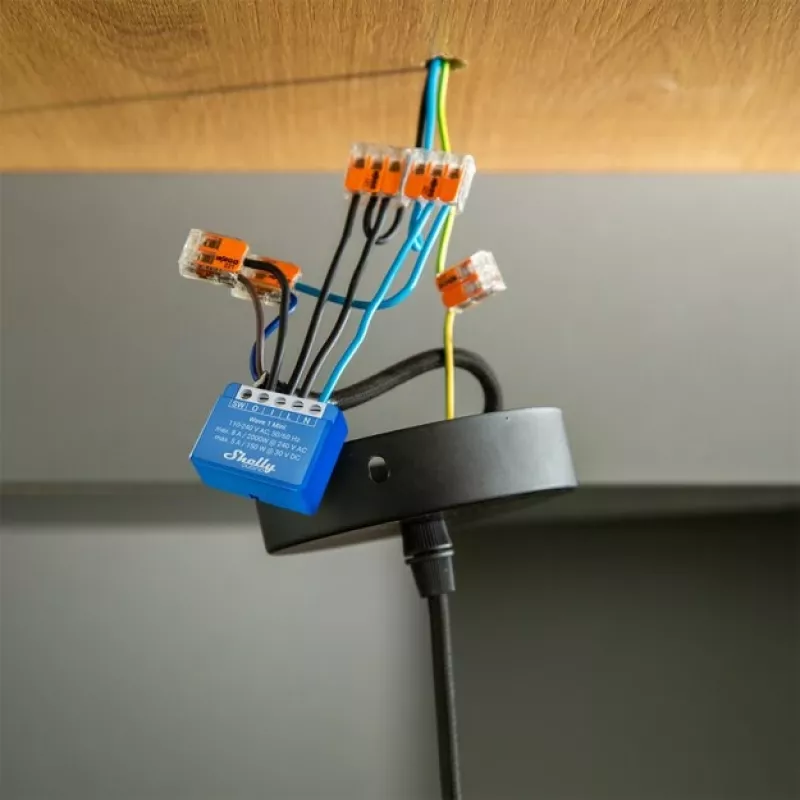

Install the Wave 1 Mini behind a switch, inside a lamp rose, within an appliance casing or in a suitable switch box following local electrical safety rules. Connect the device using its dry contact terminals to the load you want to control (max 8 A) and provide appropriate supply voltage (110–240 V AC). After installation, include the device in your Z-Wave network using your Z-Wave gateway; once included, control the connected load from the gateway app or through scenes and schedules.

Recommendations

For reliable operation, verify the load current does not exceed 8 A and use appropriate enclosures for outdoor or damp locations. Use a certified Z-Wave gateway to access remote control, schedules, and integration with other Z-Wave devices. If installing inside an appliance, ensure safe separation from heat sources and follow the appliance manufacturer's instructions.
