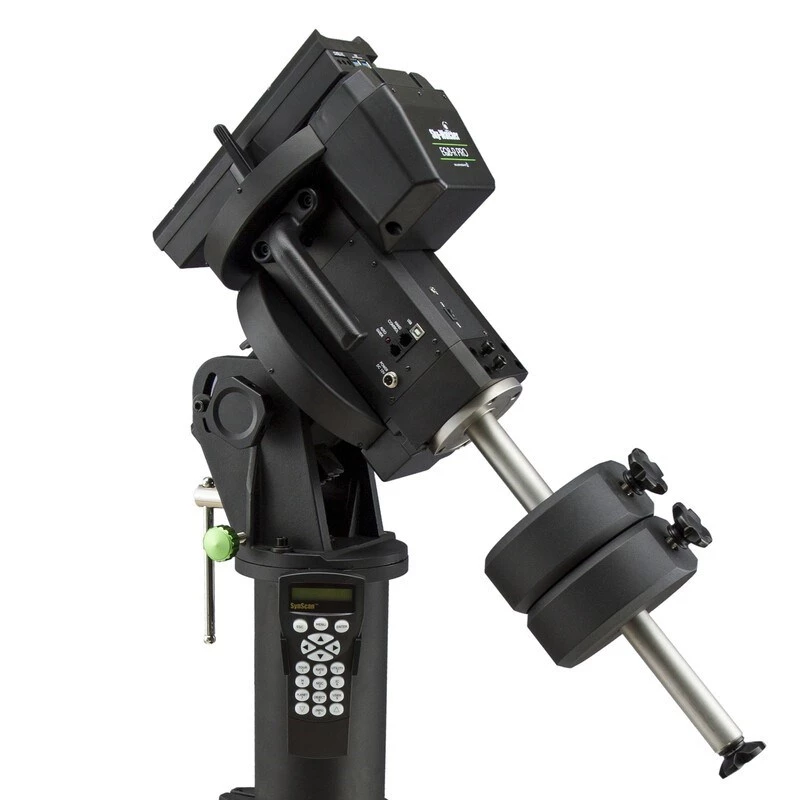

Sky-Watcher EQ8-R Mount (Without Tripod) - German Equatorial Mount, 50 kg Payload, SynScan Go-To

The Sky-Watcher EQ8-R is a professional-grade German Equatorial Mount designed for serious astrophotographers and visual observers. With a massive 50 kg payload capacity and precision stepper motor drives, it delivers exceptional stability and tracking accuracy for large telescopes and heavy imaging setups. The mount head is constructed from CNC-machined aluminum and steel, ensuring durability and vibration dampening. The built-in SynScan Go-To system with a database of over 42,900 objects makes locating celestial targets effortless. This version is supplied without a tripod, allowing you to pair it with your preferred pier or heavy-duty tripod.

Advantages

The EQ8-R offers a high payload-to-weight ratio, with the mount head weighing only 28.5 kg while supporting up to 50 kg of equipment. The belt-driven stepper motors provide smooth, quiet slewing and excellent periodic error correction with Permanent PEC (PPEC). The built-in GPS and multiple connectivity options (USB-B, RS-232, hand controller port) make it easy to integrate with observatory control systems. The Losmandy D-plate saddle ensures compatibility with a wide range of telescopes.

Suitable for

• Advanced astrophotographers requiring high payload capacity and precision tracking
• Observatories and remote imaging setups
• Large Schmidt-Cassegrain, Ritchey-Chrétien, or Newtonian telescopes
• Long-exposure deep-sky imaging with heavy camera and filter wheel assemblies

Key specifications

• Mount Type: German Equatorial Mount (GEM)
• Payload Capacity: 50 kg (110 lbs)
• Go-To System: SynScan Go-To with 42,900+ object database
• Tracking Modes: Sidereal, Lunar, Solar
• Max Slew Speed: 1000x Sidereal
• Motor Resolution: 0.09 arc-seconds
• Periodic Error Correction: Permanent PEC (PPEC)
• Autoguider Port: ST-4 compatible
• Power Requirement: DC 12V, 4A
• Dovetail Saddle: Losmandy D-plate (3-inch)
• Counterweight Shaft Diameter: 31.5 mm
• GPS: Built-in
• Connectivity: USB-B, RS-232, Hand Controller Port
• Latitude Adjustment Range: 0° to 65°
• Mount Head Weight: 28.5 kg
• Drive System: Stepper motors with belt drive
• Worm Wheel Diameter (RA): 220 mm
• Worm Wheel Diameter (DEC): 180 mm
• Material: CNC machined aluminum and steel

Recommendations

For optimal performance, pair the EQ8-R with a sturdy pier or heavy-duty tripod rated for at least 50 kg. Use a 12V DC power supply with at least 4A capacity. The mount is compatible with most astrophotography software via ASCOM drivers.
