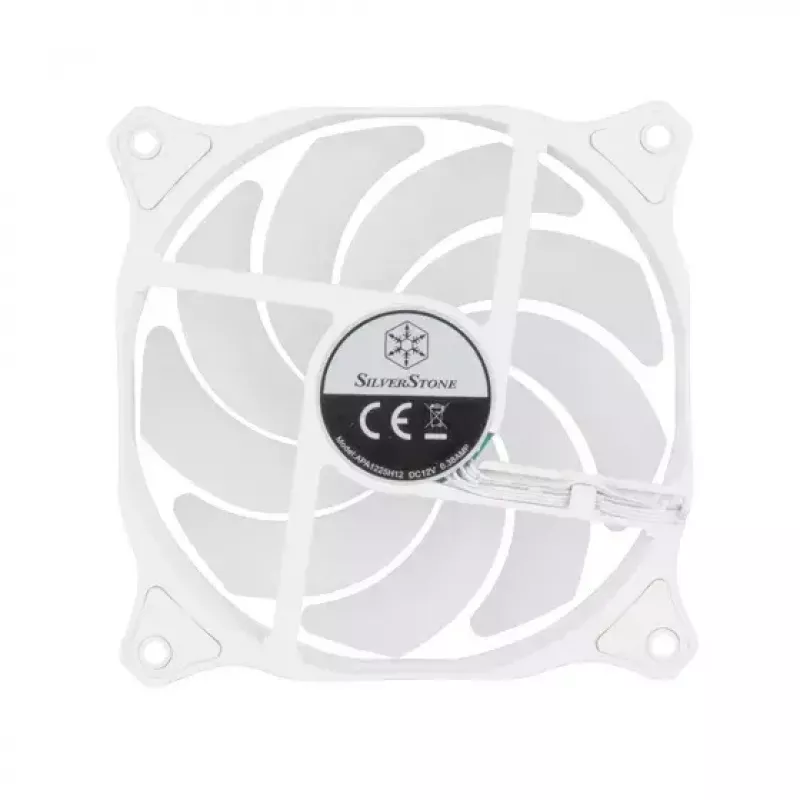

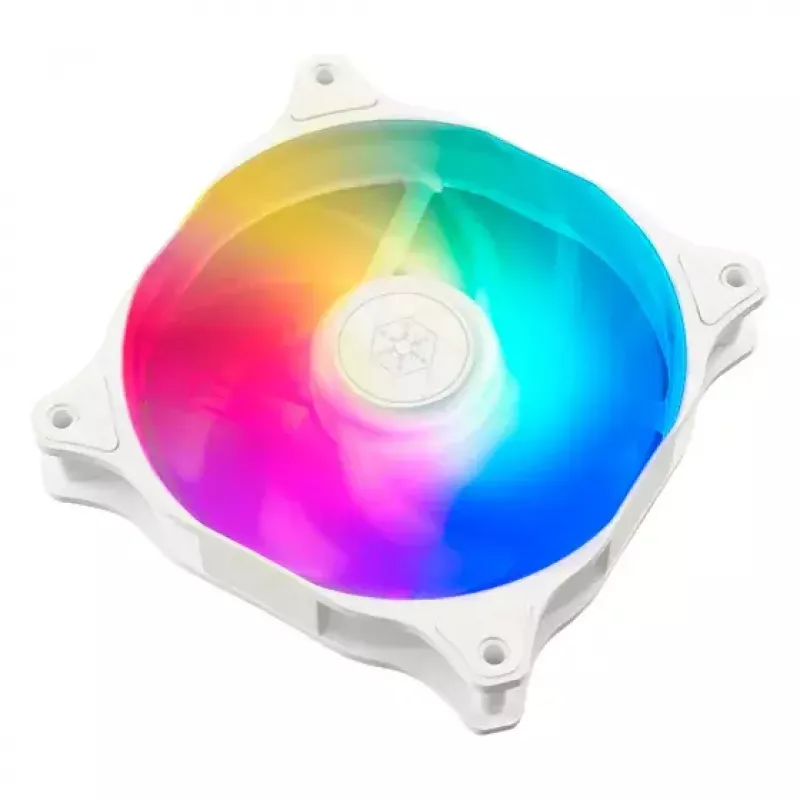

Fan Silverstone Air Blazer 120RW 120mm 600-2200 RPM White

The SilverStone Air Blazer 120RW is a 120mm PWM-controlled cooling fan with a speed range of 600–2200 RPM. Designed for high static pressure applications, it delivers optimized airflow up to its rated maximum pressure of 3.53 mmH2O and includes addressable RGB (ARGB) lighting compatible with 5V headers from ASUS, GIGABYTE, MSI and ASRock. The fan uses a hydraulic (hydrodynamic) bearing and an actively cooled motor for quieter operation and extended service life.

Advantages

The fan's 9-blade design and PWM control enable efficient, high-pressure airflow suitable for radiators and restricted airflow environments while maintaining adjustable noise levels. Anti-vibration rubber padding on all corners reduces vibration transmission. The hydraulic bearing and superior motor assembly provide lower operational noise and a long MTBF of approximately 40,000 hours. ARGB lighting offers customizable color effects when connected to a compatible 5V addressable RGB header.

Suitable for

• Case cooling where higher static pressure is required
• CPU and GPU radiators in AIO liquid-cooling systems
• Airflow-restricted setups such as dense dust filters or tight fan grills
• Systems with 5V ARGB headers for synchronized lighting

Key specifications

• Size: 120 mm
• Speed: 600–2200 RPM (PWM controlled)
• Maximum static pressure: 3.53 mmH2O
• Bearing type: Hydraulic (hydrodynamic) bearing
• ARGB: 5V addressable RGB, compatible with ASUS/GIGABYTE/MSI/ASRock headers
• Anti-vibration mounting: Rubber padding on corners
• MTBF: ~40,000 hours
• Model / MPN: SST-AB120RW-ARGB
• EAN: 4710679811307

How to use

Install the SilverStone Air Blazer 120RW in a standard 120mm fan location using the supplied screws or compatible mounting hardware, ensuring the anti-vibration pads align with mounting points. Connect the 3- or 4-pin PWM power connector to a motherboard fan header that supports PWM control to enable automatic speed regulation between 600 and 2200 RPM. For lighting, connect the 5V ARGB cable to a 5V addressable RGB header on a compatible motherboard and use the motherboard software to configure lighting effects.

Recommendations

Use the fan on radiators and in areas with restricted airflow to take advantage of its high static pressure. Monitor fan speed and adjust PWM curves in BIOS or software to balance cooling performance and noise. Ensure the ARGB header is 5V addressable before connecting to prevent damage to the lighting circuit.
