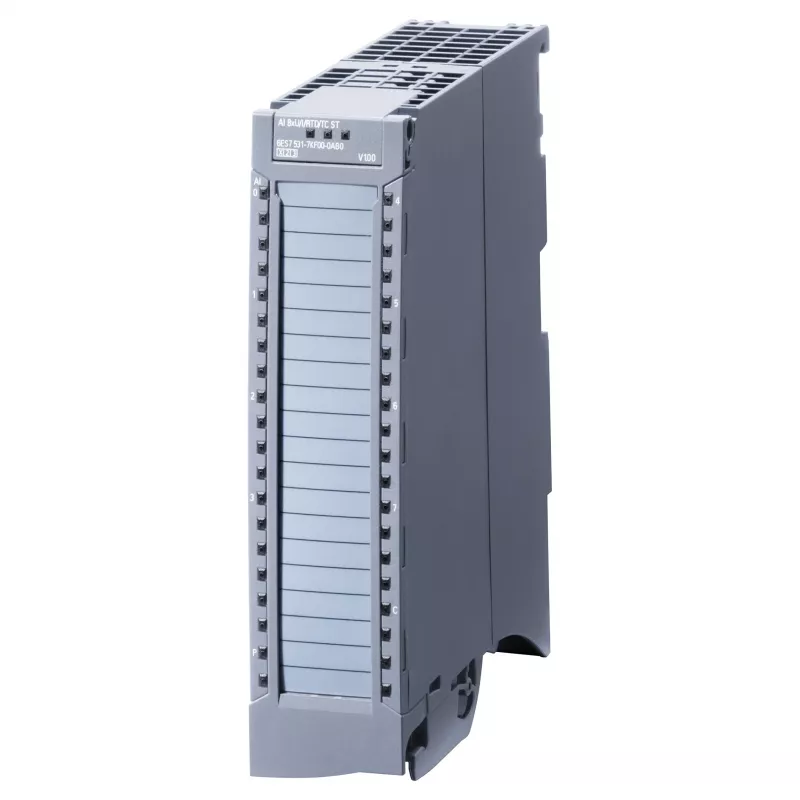

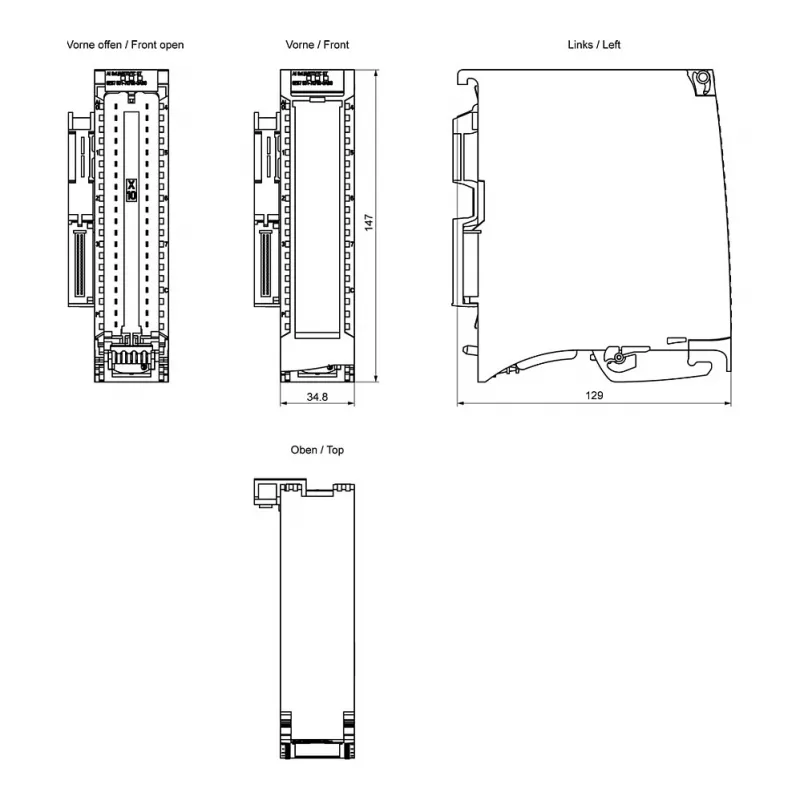

Siemens SIMATIC S7-1500 Analog Input Module AI 8xU/I/RTD/TC 16 Bit - 6ES7531-7KF00-0AB0

Eight channels on a single slice of DIN rail—each one independently configurable for voltage, current, RTD, or thermocouple—make the 6ES7531-7KF00-0AB0 a standout in the S7-1500 family. Instead of stocking separate modules for different sensor types, this unit adapts to mixed installations in process automation, machine building, and test stands. The 16-bit resolution (including sign) ensures precise readings across all input types, while the integrated 40-pin front connector simplifies wiring from the start.

Highlights

• 8 analog inputs, individually configurable for voltage, current, RTD, or thermocouple
• 16-bit resolution (including sign) for high-precision measurements
• Supports a wide range of RTDs: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100
• Thermocouple types B, E, J, K, N, R, S, T, C, D, L, U, TXK with internal or external cold junction compensation

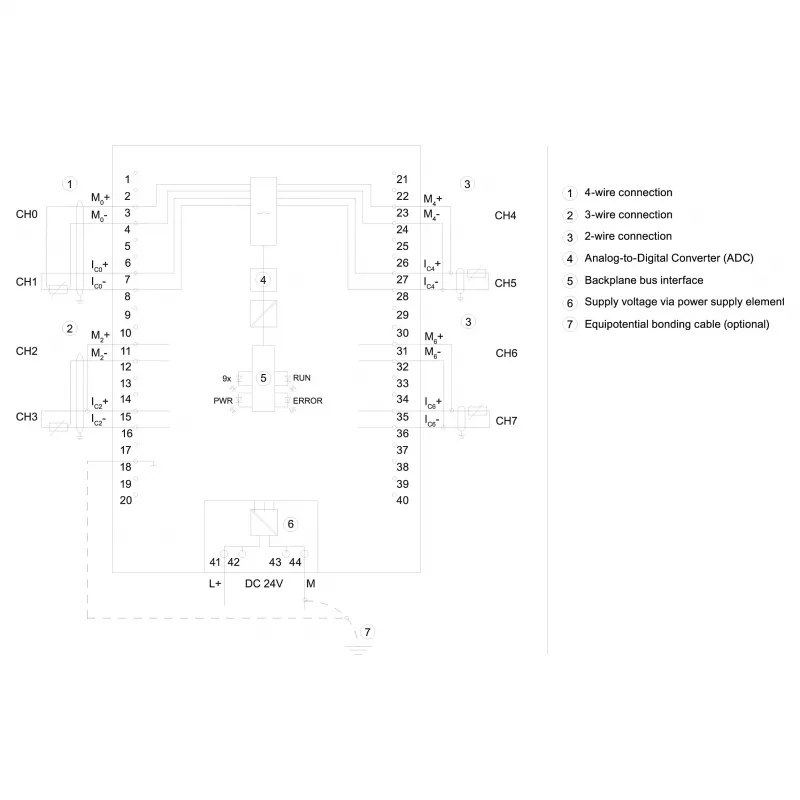

• 2-, 3-, or 4-wire connection for RTDs
• Comprehensive diagnostics: wire break, short circuit, overflow/underflow, measuring range error, sensor error, common mode voltage error
• Hardware interrupts on limit value violation
• Basic isolation between channels and backplane bus
• Fast cyclic update: 10 ms for all 8 channels
• Included 40-pin front connector

In daily use

Configuration is straightforward via TIA Portal. Each channel can be set to its own measurement type and range, allowing mixed signals on one module. The module fits standard S7-1500 mounting rails and operates in a temperature range of 0 °C to 60 °C when horizontally installed. Its diagnostic functions help reduce downtime by quickly identifying wiring or sensor faults. Accuracy is 0.1% for voltage/current and 0.2% for RTD/TC relative to full scale. Power consumption from the backplane bus is max 0.9 W. Voltage ranges include ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V, 0-1.25V; current ranges include ±20mA, 0-20mA, 4-20mA.

Full specifications

• Brand: Siemens
• Model: 6ES7531-7KF00-0AB0
• MPN: 6ES75317KF000AB0
• EAN: 4025515079514
• Module type: Analog input module
• Series: SIMATIC S7-1500
• Number of analog inputs: 8
• Input signal types: Voltage, current, RTD, thermocouple
• Resolution: 16 bit (including sign)
• Voltage input ranges: ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V, 0-1.25V
• Current input ranges: ±20mA, 0-20mA, 4-20mA
• RTD types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100 (2-, 3-, 4-wire)
• Thermocouple types: B, E, J, K, N, R, S, T, C, D, L, U, TXK (internal/external CJC)
• Basic isolation: Yes (channel to backplane bus)
• Accuracy (voltage/current): 0.1% of full scale
• Accuracy (RTD/TC): 0.2% of full scale
• Power consumption (backplane bus): Max 0.9 W
• Diagnostics: Wire break, short circuit, overflow/underflow, measuring range error, sensor error, common mode voltage error
• Hardware interrupts: Yes (limit value violation)
• Cyclic update time: 10 ms for 8 channels
• Operating temperature: 0 °C to 60 °C (horizontal mounting)
• Front connector: Included (40-pin)
• Configuration software: TIA Portal

Final note

For engineers who need flexible, high-density analog acquisition without compromising on diagnostics, the 6ES7531-7KF00-0AB0 delivers a compact and reliable solution that integrates seamlessly into any S7-1500 system.
