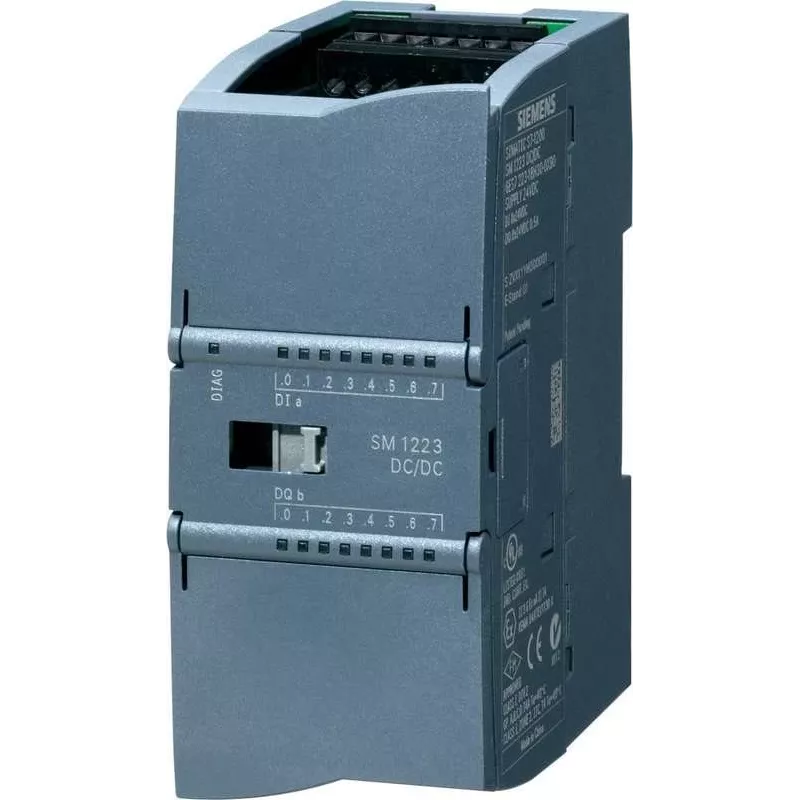

Siemens SIMATIC S7-1200 Digital & Analog I/O Module, 8 DI/8 DO/2 AI/2 AO, 24V DC, Source Output, DIN Rail 6ES7223-1BL32-0XB0

In modern industrial automation, integrating both digital and analog signals into a single compact controller can be a challenge. The Siemens SIMATIC S7-1200 Digital & Analog I/O Module (6ES7223-1BL32-0XB0) solves this by providing a versatile mix of 8 digital inputs, 8 digital outputs, 2 analog inputs, and 2 analog outputs in one module. This eliminates the need for multiple separate modules, saving space on the DIN rail and simplifying wiring. It is ideal for machine builders and system integrators who need to handle sensors, actuators, and analog devices like temperature transmitters or valve positioners directly from their S7-1200 PLC.

Who is it for

This module is designed for automation engineers, panel builders, and OEMs working with the SIMATIC S7-1200 series. It suits applications in packaging machines, conveyor systems, HVAC control, and small to medium-sized process skids where both discrete and analog signals are present. If you need to expand the I/O capacity of your S7-1200 CPU without adding multiple modules, this is a perfect fit.

Main features

• 8 digital inputs, 24V DC, sink/source (PNP/NPN compatible) for flexible sensor connection.
• 8 digital outputs, transistor source type, 0.5 A per channel for driving relays, contactors, and small actuators.
• 2 analog inputs with selectable ranges: 0-10V, 0-20mA, or 4-20mA; resolution up to 11-bit.
• 2 analog outputs with the same selectable ranges and resolution for controlling valves, drives, or indicators.
• Galvanic isolation between channels and backplane for reliable operation in noisy environments.
• DIN rail mounting for quick installation in standard control cabinets.
• Operates on 24V DC from the backplane bus, no external power supply needed.

Specifications

• Brand: Siemens
• Model: 6ES7223-1BL32-0XB0
• Series: SIMATIC S7-1200
• Module type: Digital/Analog I/O Module
• Digital inputs: 8 (24V DC, sink/source)
• Digital outputs: 8 (transistor source, 0.5 A per channel)
• Analog inputs: 2 (0-10V, 0-20mA, 4-20mA; 10-bit voltage, 11-bit current)
• Analog outputs: 2 (0-10V, 0-20mA, 4-20mA; 10-bit voltage, 11-bit current)
• Isolation: Yes (between channels and backplane)
• Mounting: DIN rail
• Operating temperature: 0 to 55 °C
• Power supply: 24V DC via backplane bus

Tips

When wiring the analog inputs, ensure you configure the correct range in the TIA Portal software to match your sensor (voltage or current). For current loops, use the 4-20mA range to detect wire breaks. The digital outputs are source type, so connect the load between the output terminal and 0V. Always follow local electrical codes and use appropriate fusing for each output channel.
