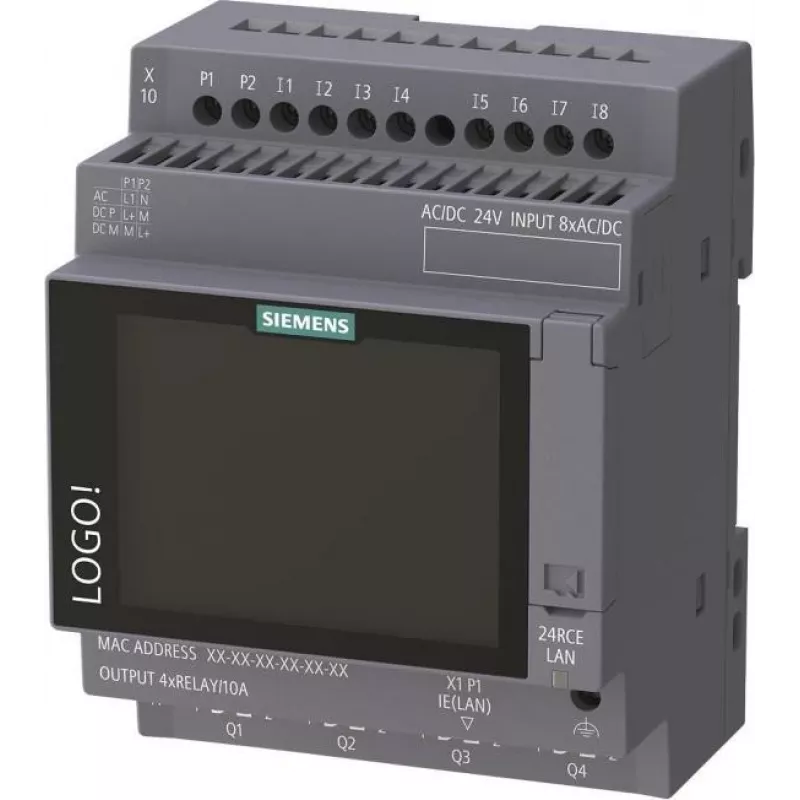

Siemens LOGO! 24 RCE Logic Module with Display, 24V AC/DC, 8 Digital Inputs, 4 Relay Outputs, Ethernet

The Siemens LOGO! 24 RCE is a compact logic module from the LOGO! 8 series, designed for basic automation tasks. It features an integrated display, 8 digital inputs (4 analog-capable), 4 relay outputs, and an Ethernet interface for networking and web server functionality. The module operates on 24V AC/DC and is DIN rail mountable with IP20 protection.

Advantages

Easy programming with LOGO! Soft Comfort software; built-in real-time clock with astronomical and annual functions; expandable via additional modules; integrated web server for remote monitoring; data logging and event log for up to 1000 entries; supports standard microSD cards for program backup and data storage.

Suitable for

• Industrial control panels
• Building automation (lighting, HVAC)
• Small machine automation
• Educational and training setups

Key specifications

• Product Type: Logic Module
• Series: LOGO! 8
• Supply Voltage: 24V AC/DC
• Digital Inputs: 8 (4 shared with analog inputs)
• Analog Inputs: 4 (shared with digital inputs)
• Output Type: Relay
• Relay Outputs: 4
• Integrated Display: Yes
• Expandability: Yes
• Program Memory: 400 blocks
• Communication Interface: Ethernet
• Integrated Web Server: Yes
• Data Logging: Yes
• MicroSD Card Support: Yes (Standard microSD)
• Real-time Clock: Yes (Astronomical, Annual)
• Mounting Type: DIN Rail
• Protection Class: IP20
• Operating Temperature: 0 to 55 °C
• Programming Software: LOGO! Soft Comfort
• Event Log Entries: Up to 1000

Recommendations

For optimal performance, use LOGO! Soft Comfort V8 or higher for programming. Ensure adequate ventilation when mounting in enclosures. The module is compatible with LOGO! expansion modules (digital, analog, communication).
