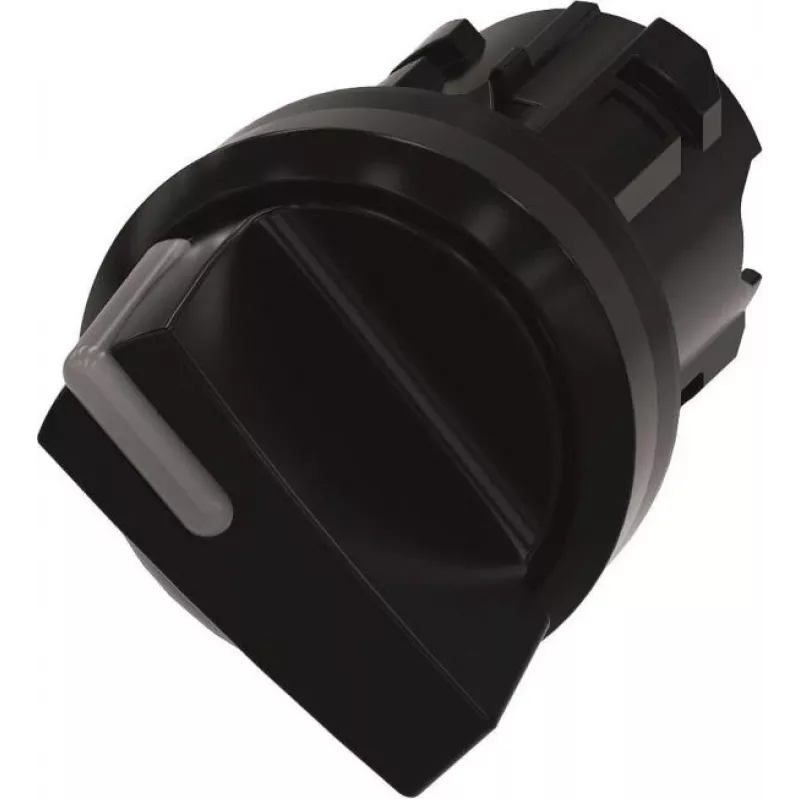

Siemens 3SU1002-2BF10-0AA0 Selector Switch, 22 mm, Round, Plastic, Black, 2-Position, Latching, Illuminable, IP66/IP67/IP69/IP69K

The Siemens 3SU1002-2BF10-0AA0 is a high-quality selector switch from the SIRIUS ACT series, designed for industrial control applications. With a 22 mm mounting diameter and a round plastic actuator in black, this switch offers reliable performance and durability. It features 2 positions with a latching (maintained) switching action and a 90° actuating angle. The switch is illuminable, allowing for integration with separate light sources for status indication. It is suitable for use with 3SU1 contact blocks and light modules, providing flexibility in control panel design.

Advantages

Robust construction with high ingress protection (IP66, IP67, IP69, IP69K) ensures reliable operation in harsh environments. The plastic front ring and actuator are resistant to corrosion and wear. With a mechanical life of 10 million switching cycles, this switch offers long-term reliability. Compliance with IEC 60947-5-1 and EN 60947-5-1 standards guarantees safety and performance.

Suitable for

• Industrial control panels
• Machine control systems
• Automation equipment
• Process control applications

Key specifications

• Product Type: Selector Switch
• Brand Series: Siemens SIRIUS ACT
• Mounting Diameter: 22 mm
• Actuator Design: Round
• Actuator Material: Plastic
• Actuator Color: Black
• Number of Positions: 2
• Switching Action: Latching (Maintained)
• Actuating Angle: 90°
• Illumination Capability: Yes (for separate light source)
• Front Ring Material: Plastic
• Front Ring Color: Black
• Degree of Protection (Front): IP66, IP67, IP69, IP69K
• NEMA Rating (Front): NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating Temperature Range: -25 to +70 °C
• Mechanical Life: 10 million switching cycles
• Included Components: Actuator, Holder
• Compatibility: Suitable for 3SU1 contact blocks and light modules
• Standard Compliance: IEC 60947-5-1, EN 60947-5-1
• RoHS Compliant: Yes

Recommendations

For complete installation, pair this selector switch with appropriate contact blocks and light modules from the Siemens 3SU1 series. Ensure proper sealing and mounting to maintain the high IP protection ratings.
