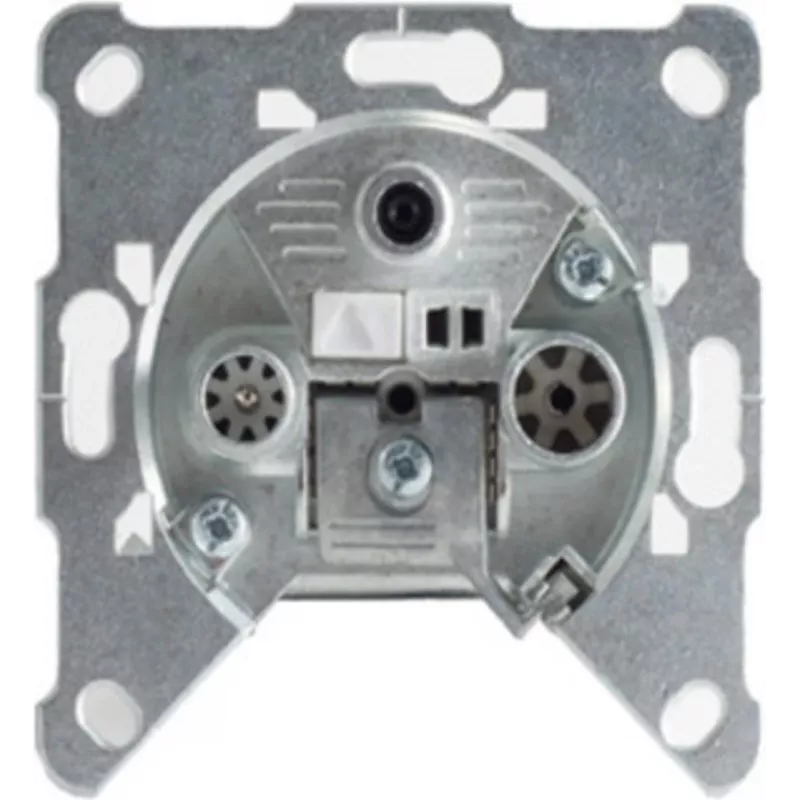

SHIVERPEAKS S/CONN maximum connectivity Antenna Wall Outlet SAT+BK with Clamp Technology, 1 dB (15-93001)

For installations where every decibel counts, this SHIVERPEAKS antenna wall outlet stands apart by combining satellite and broadband cable distribution in a single flush-mount unit with exceptionally low 1 dB tap-off attenuation. The clamp technology (Klemmtechnik) eliminates the need for soldering or screwing, making termination fast and reliable even in tight spaces.

Highlights

• Three dedicated outputs: TV (IEC male), Radio (IEC female), and SAT (F-connector)
• Ultra-low 1 dB through-loss preserves signal strength for downstream devices
• Clamp terminals accept solid conductors without special tools, reducing installation time
• Die-cast metal housing with Class A shielding for superior interference rejection
• DC pass on SAT output powers satellite LNBs or multiswitches
• Fits standard 60 mm flush-mount boxes and common cover frames

In daily use

Whether you are setting up a new satellite TV point or upgrading an existing cable outlet, the 15-93001 delivers clean signals across the full TV/radio band (5–862 MHz) and satellite IF (950–2400 MHz). The 75 Ohm impedance and high return loss (>10 dB TV/radio, >9 dB SAT) minimize reflections, ensuring stable reception even in complex distribution networks. The clamp mechanism grips the inner conductor firmly, preventing intermittent contacts caused by vibration or thermal cycling.

Full specifications

• Product type: Antenna wall outlet (end socket)
• Application: Satellite (SAT) and broadband cable (BK) TV
• Tap-off attenuation: 1 dB
• Frequency range TV/Radio: 5–862 MHz
• Frequency range SAT: 950–2400 MHz
• Outputs: 3 (TV IEC male, Radio IEC female, SAT F-connector)
• Connection technology: Clamp (Klemmtechnik)
• Impedance: 75 Ohm
• Shielding class: Class A
• DC pass (SAT output): Yes
• Mounting type: Flush-mount (Unterputz)
• Housing material: Die-cast metal
• Cover compatibility: Standard 60 mm flush-mount boxes
• Return loss TV/Radio: >10 dB
• Return loss SAT: >9 dB

Final note

For professional installers and demanding DIYers, the SHIVERPEAKS 15-93001 offers a robust, low-loss solution that simplifies cabling while maintaining signal integrity across satellite and terrestrial bands.
