Patch Panel S/CONN 08-67052

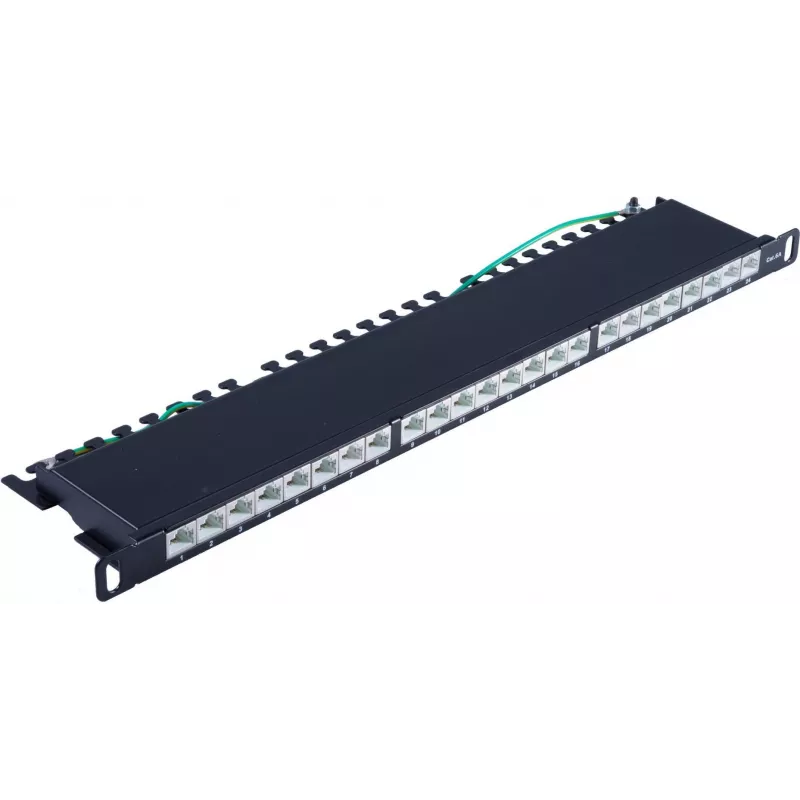

The ShiverPeaks Patch Panel S/CONN 08-67052 is a 0.5U rack-mounted module designed for organizing RJ-45 network connections. Compatible with Cat6a cabling, the panel supports high-speed data transmission and provides a compact patching solution for racks and cabinets. Constructed from SPCC steel and finished in black, it offers a durable mounting surface for keystone or RJ-45 jacks and simplifies cable routing in structured cabling environments.

Advantages

This 0.5U patch panel delivers reliable performance for Cat6a networks, combining a compact footprint with robust SPCC construction to withstand regular use in server rooms and telecommunication cabinets. Its RJ-45 compatibility ensures straightforward installation and standardized connectivity. The black finish reduces visual clutter in rack installations while the panel design facilitates neat cable management and easy access for maintenance.

Suitable for

• Data centres and server racks requiring Cat6a connectivity
• Small and medium business network cabinets
• Home networking setups with structured cabling
• Telecommunications closets and patching fields

Key specifications

• Form factor: 0.5U rack-mounted panel
• Connector type: RJ-45 keystone compatible
• Cable category support: Cat6a
• Material: SPCC steel
• Colour: black
• Mounting: standard 19-inch rack compatible

How to use

Mount the patch panel in a standard 19-inch rack or cabinet at the desired U position and secure it with appropriate rack screws. Install compatible RJ-45 keystone jacks or punch down terminated modules into the front openings, then terminate Cat6a cables to the rear according to the chosen jack type. Route and label cables for clear identification, and verify connections using network testing tools to ensure proper signal integrity and performance.

Recommendations

For optimal performance with Cat6a infrastructure, maintain correct cable bend radii and separation from power sources to reduce interference. Use consistent labelling conventions and, where possible, colour-coded cables to simplify maintenance. Periodically inspect terminations and retest links after installation changes to preserve network reliability.
