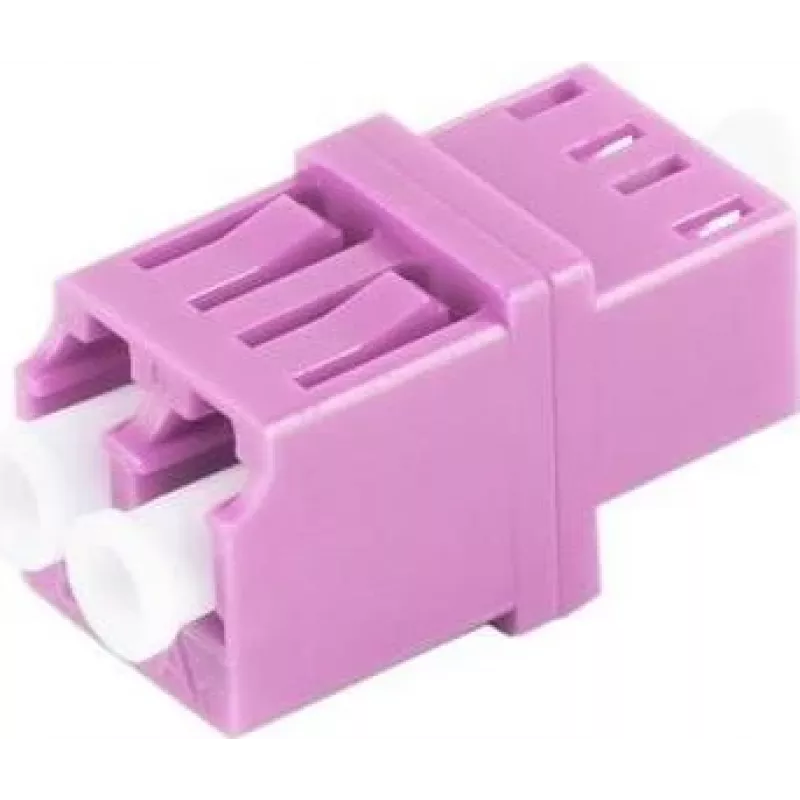

Fibre Optic Adapter S/CONN 07-60023 LC Single-mode Violet

The ShiverPeaks Fibre Optic Adapter S/CONN 07-60023 LC Single-mode Violet is a single-mode LC coupling device designed to join two LC-terminated fiber cables. The adapter features a compact form factor and a violet housing that helps with color-coded installations. It is intended to provide a stable physical connection that minimizes insertion loss and maintains optical alignment between mated LC connectors in single-mode fiber networks.

Advantages

The adapter offers precise alignment of single-mode LC ferrules to reduce back reflection and insertion loss, supporting reliable signal transmission. Its compact LC footprint allows dense port arrangements in patch panels and enclosures, while the colored housing simplifies fiber management and identification. The unit is designed for straightforward mating and demating of LC connectors, enabling efficient installation and maintenance.

Suitable for

• Single-mode fiber patch panels and couplers
• Telecommunications and long-distance data links
• Data center fiber management and cross-connects
• Fiber optic testing and laboratory setups

Key specifications

• Connector type: LC (duplex-ready footprint compatible)
• Fiber mode: Single-mode
• Housing color: Violet for easy identification
• Form factor: Compact inline adapter suitable for high-density panels
• Performance focus: Low insertion loss and controlled return loss for single-mode links

How to use

Insert LC connectors from the two fiber cables into the adapter until they click into place, ensuring the ferrules are fully seated to achieve proper optical contact. For removal, depress the LC connector latch and gently pull the connector straight out. Use compatible single-mode LC-terminated patch cords and ensure connectors are clean before mating to avoid contamination and increased signal loss. Follow standard fiber handling practices to prevent bending or damaging the fiber near the connector.

Recommendations

Clean connectors with approved fiber cleaning tools before connecting, inspect ferrule endfaces with a microscope when troubleshooting, and avoid tight bending radii near the adapter. Use the violet housing as part of a color-coded cabling plan to simplify identification and maintenance in multi-fiber environments.
