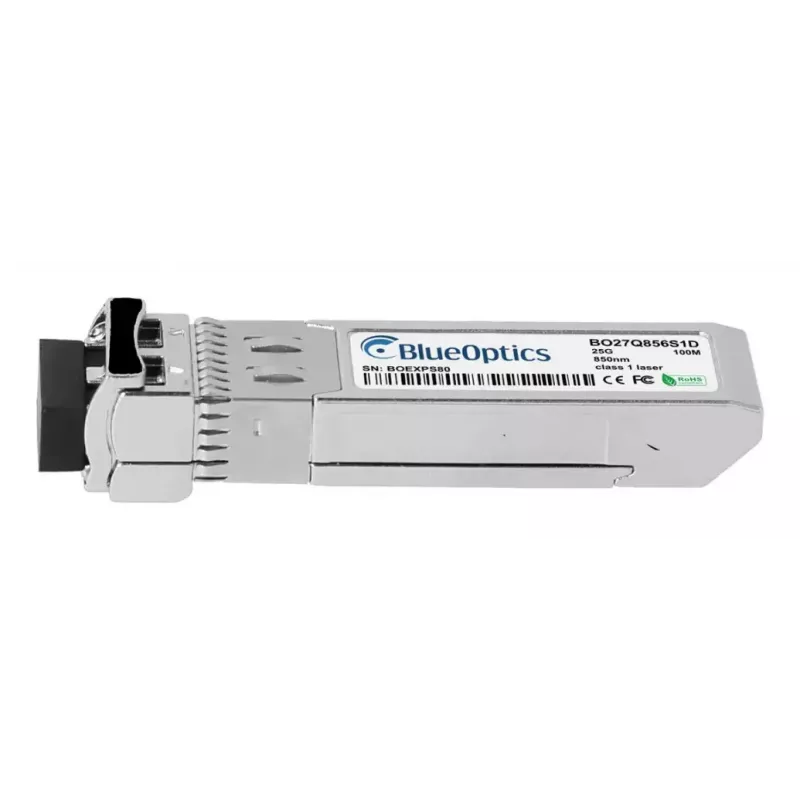

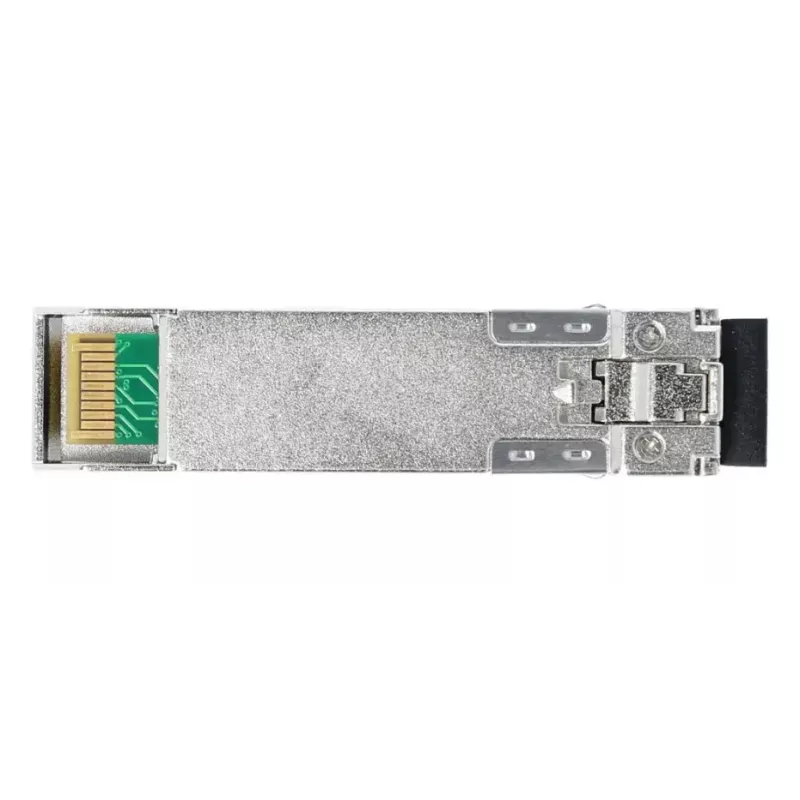

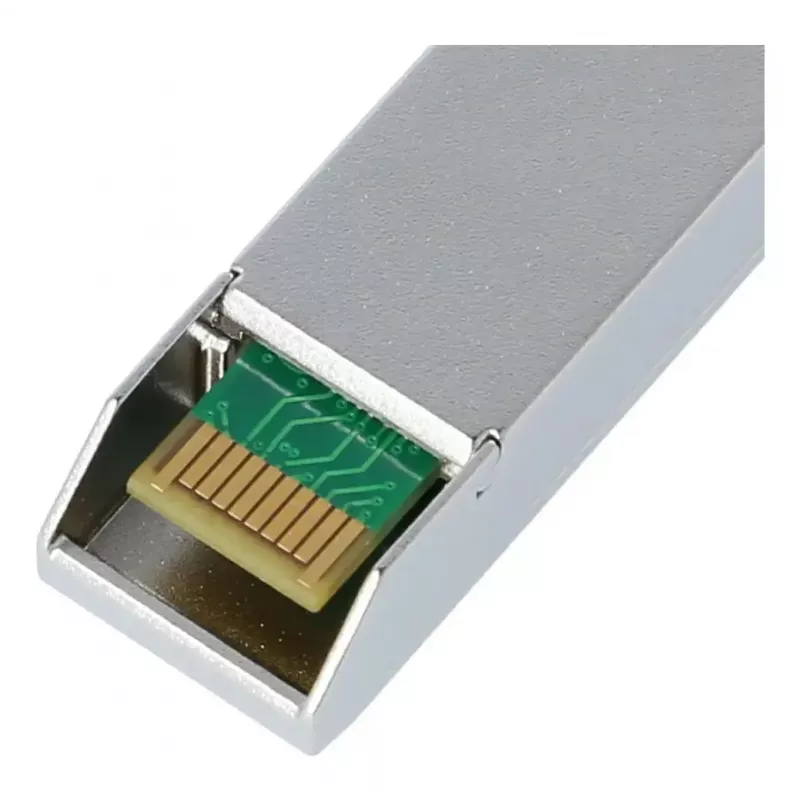

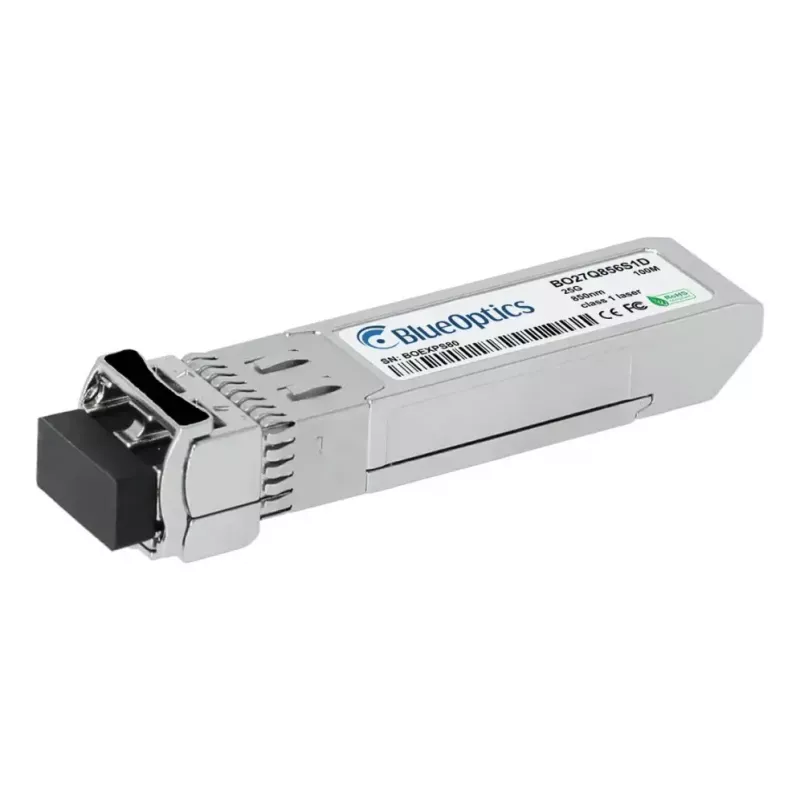

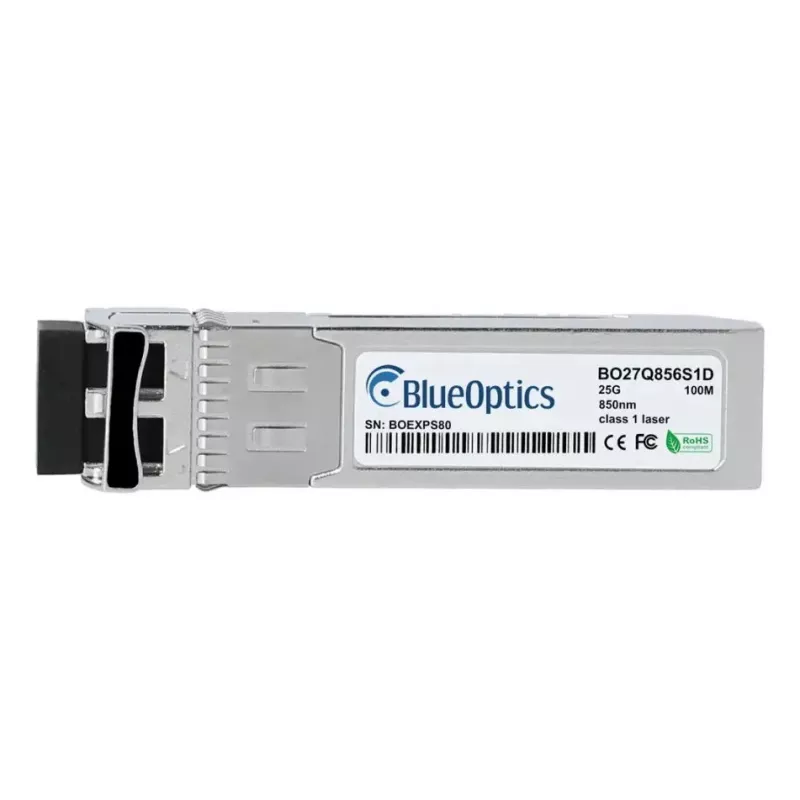

SFP28 transceiver module BlueOptics BO27Q856S1DIN 25000 Mbit/s

The BlueOptics BO27Q856S1DIN SFP28 transceiver module supports a maximum data transfer rate of 25000 Mbit/s and is designed for short-range fiber optic connections. With an SFP28 form factor and LC fiber connector, the module fits standard SFP28 ports and is suitable for upgrading compatible switches, routers and media converters. The compact silver module weighs approximately 40 g and is specified with a maximum transfer distance of 100 m and an MTBF of 3,000,000 hours. It complies with CE, FCC and RoHS standards, providing documented regulatory conformance for network installations.

Advantages

The transceiver provides a high data rate of 25 Gbit/s in a compact SFP28 package, enabling higher throughput without changing port density. Its LC connector and support for short-range multimode links make it easy to integrate into existing fiber cabling. The silver, industry-standard form factor and modest weight simplify handling and installation, while the long MTBF indicates expected reliability in continuous operation.

Suitable for

Key specifications

How to use

Power down or follow hot-swap guidance from your network equipment vendor before inserting the SFP28 module into an empty SFP28-compatible port. Align the LC connector with the corresponding fiber patch cable and secure the connector according to the cable type. After physical installation, verify link status and configure port settings on the switch or router as required for 25 Gbit/s operation or as supported by the host device. Follow standard ESD precautions when handling the module and keep dust caps on the LC connector until connection.

Recommendations

Use the module with multimode fiber and LC patch cords specified for short-range 25 Gbit/s links and confirm compatibility with the host device firmware. Maintain clean fiber endfaces and verify link integrity with appropriate testing equipment during installation and maintenance.
