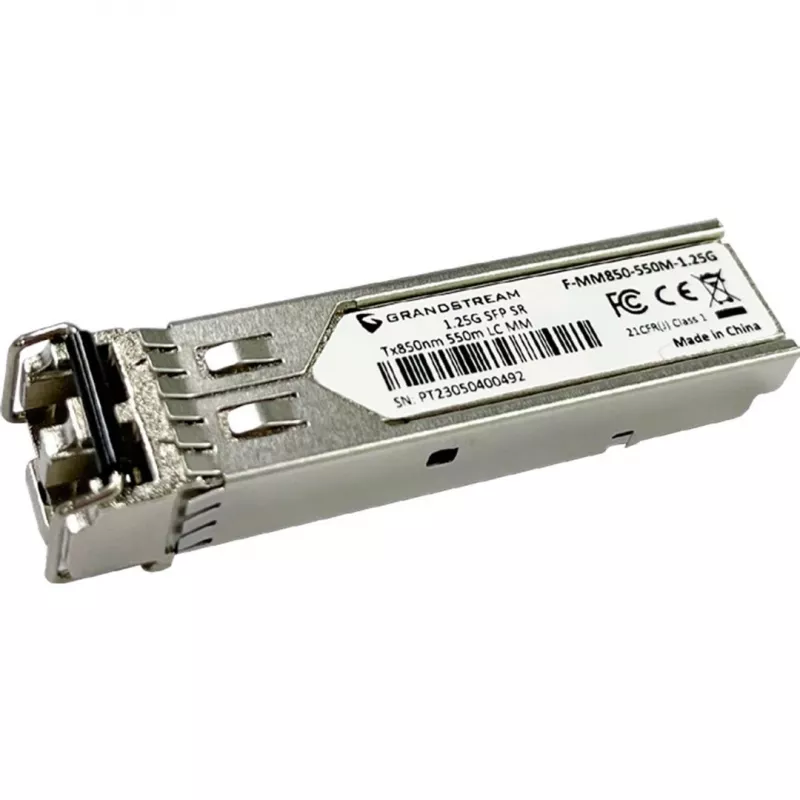

SFP transceiver module Grandstream Networks F-MM850-550M-1.25G 1250 Mbit/s 850 nm

The Grandstream Networks F-MM850-550M-1.25G is an SFP transceiver module for fiber optic connections, supporting a maximum data rate of 1250 Mbit/s and operating at an 850 nm wavelength. This small-form-factor, hot-pluggable SFP module features a high-sensitivity PIN receiver and signal conditioning for reliable 1.25 Gigabit Ethernet links, low electromagnetic interference, ESD protection and typical power consumption of 0.8 W. It is RoHS compliant and easy to integrate into networking equipment for enterprise LANs and other optical links.

Advantages

The module provides a compact, hot-pluggable SFP form factor that simplifies installation and replacement. Low power consumption (typical 0.8 W) and RoHS compliance make it energy-efficient and environmentally compatible. Built-in high-sensitivity PIN receiver and signal conditioning improve link reliability, while low EMI and ESD protection enhance operational stability in network environments.

Suitable for

• Enterprise LAN fiber uplinks
• Switch-to-switch optical links
• Network expansion and modular transceiver slots
• Short-range multimode fiber connections (850 nm)

Key specifications

• Interface type: SFP
• Maximum data transfer rate: 1250 Mbit/s (1.25 Gbps)
• Wavelength: 850 nm
• Input voltage: 3.3 V
• Power consumption (typical): 0.8 W
• Form factor: SFP (hot-pluggable)
• RoHS compliant
• Weight: 0.0158 kg
• Color: Silver

How to use

Insert the SFP transceiver into a compatible SFP port on a switch, router or media converter while the host device is powered according to the vendor’s guidelines for hot-pluggable modules. Connect the appropriate multimode fiber patch cable (850 nm) to the module’s optical interface. Confirm link status on the host device and verify speed and duplex settings if required. Handle the transceiver and fiber connectors by the housing; keep dust caps on unused ports and clean connectors before mating.

Recommendations

Use multimode fiber and patch cords rated for 850 nm operation and ensure connector types match the host equipment. Observe ESD precautions when handling the module, store unused modules in anti-static packaging, and follow the equipment manufacturer’s compatibility list to ensure optimal performance.
